Introduction
Enjoy a seamless payment process and advanced security with Magento 2 Stripe Payment.
Features For Admin
A lot of features are included in the extension that you can tweak to make it best suit your business, including:
- SCA is available on Stripe Checkout and Stripe Payment Intents
- SEPA Direct Debit
- Choose between Authorize Only or Authorize and Capture.
- IFrame Checkout Form.
- Alipay, Giropay, Apple Pay, Google Pay,
- 3D Secure
- Support Stripe.js v3 with Stripe Elements for PCI DSS Compliance
- Restrict unwanted countries from payment
- Support Save Card function
- Various credit card types
- Support CVC/AVS Verification
- Access to more than 25 countries
- Easily partial capture invoice.
Conveniently partial or total refund
- Support 135 currencies
- Support MOTO (Making payment from backend)
- Support Giropay, Alipay, SOFORT, Bancontact, EPS, etc.
- Update Stripe Intents 2.0 (New)
Features For Customer
Easily checkout using credit cards.
- Flexible
The primary aim of the extension is to deliver the most fluent and effortless payment experience to the customers:
Easily checkout using credit card.
Flexible - payment choices
- Save credit card info for the next purchase
System Requirements
Your store should be running must run on Magento 2 version 2.2.0.x; 2.13.x; 2.2.x4
...
Configuration
Setup Stripe Account
...
Then, choose Create your Stripe account to set up a new account
Once you have the Stripe account, sign in on Stripe.
After that, click on API at the left corner > API Keys to get the API Keys.
Set Configuration
At the back end, you need to configure some fields to connect between your Magento site and the Stripe account.
On the Admin sidebar, tap STRIPE, then choose Settings.
Requirement Settings
Sandbox Mode Enabled: Turn this on (Yes) for test mode, remember to use test key and test cards for testing. Other please turn this off (No) when you go Live.
...
Select the filter event as Send all event types

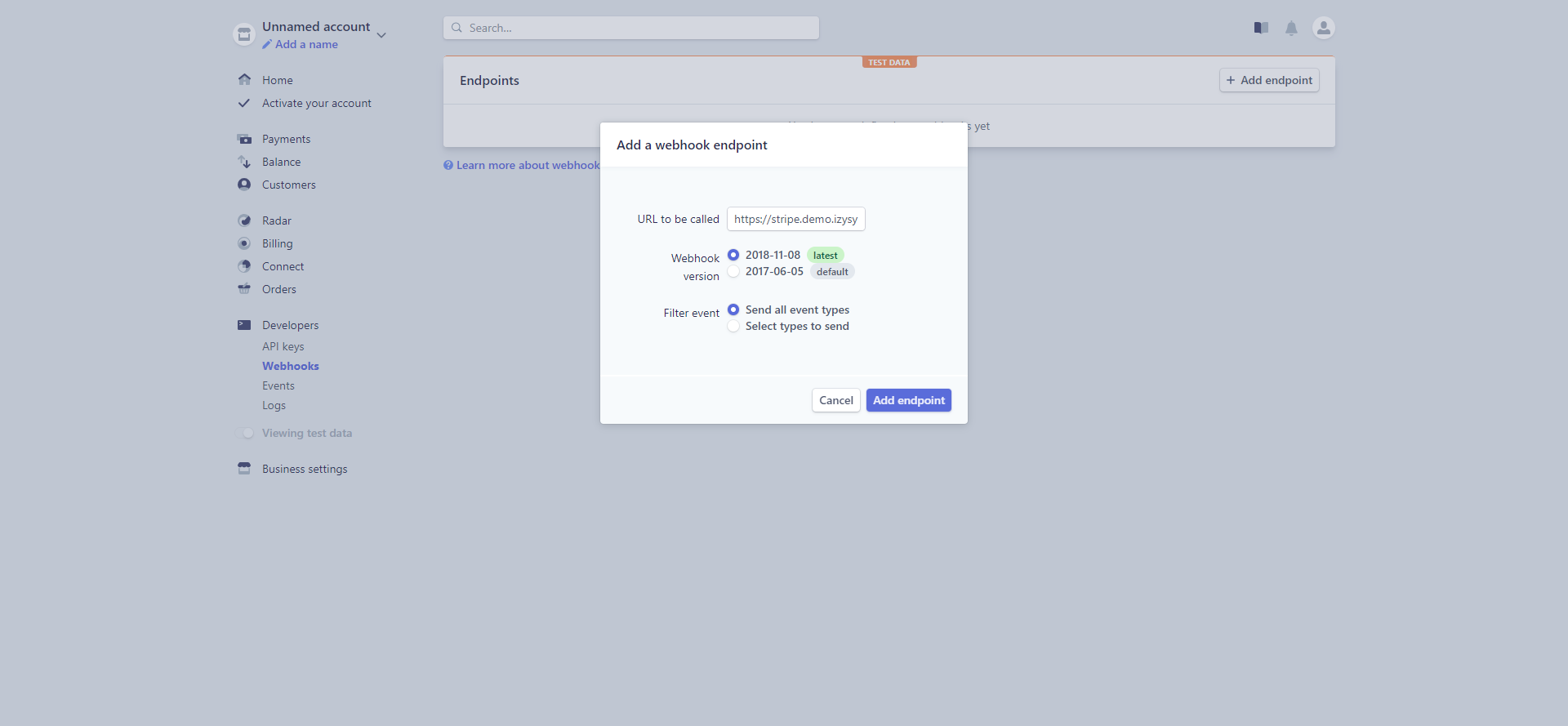

Add a webhook endpoint
Copy the signing secret and paste to Magento 2 Configuration
- Webhooks signing secret: Enter the signing secret from Stripe+.
- Email Customer: Allow Stripe to send receipts to customers once the payment is made successfully.
- Statement descriptor: An arbitrary string to be displayed on your customer’s statement. As an example, if your website is RunClub and the item you’re charging for is a race ticket, you may want to specify a statement_descriptor of RunClub 5K race ticket. While many payment types will display this information, some may not display it at all.
...

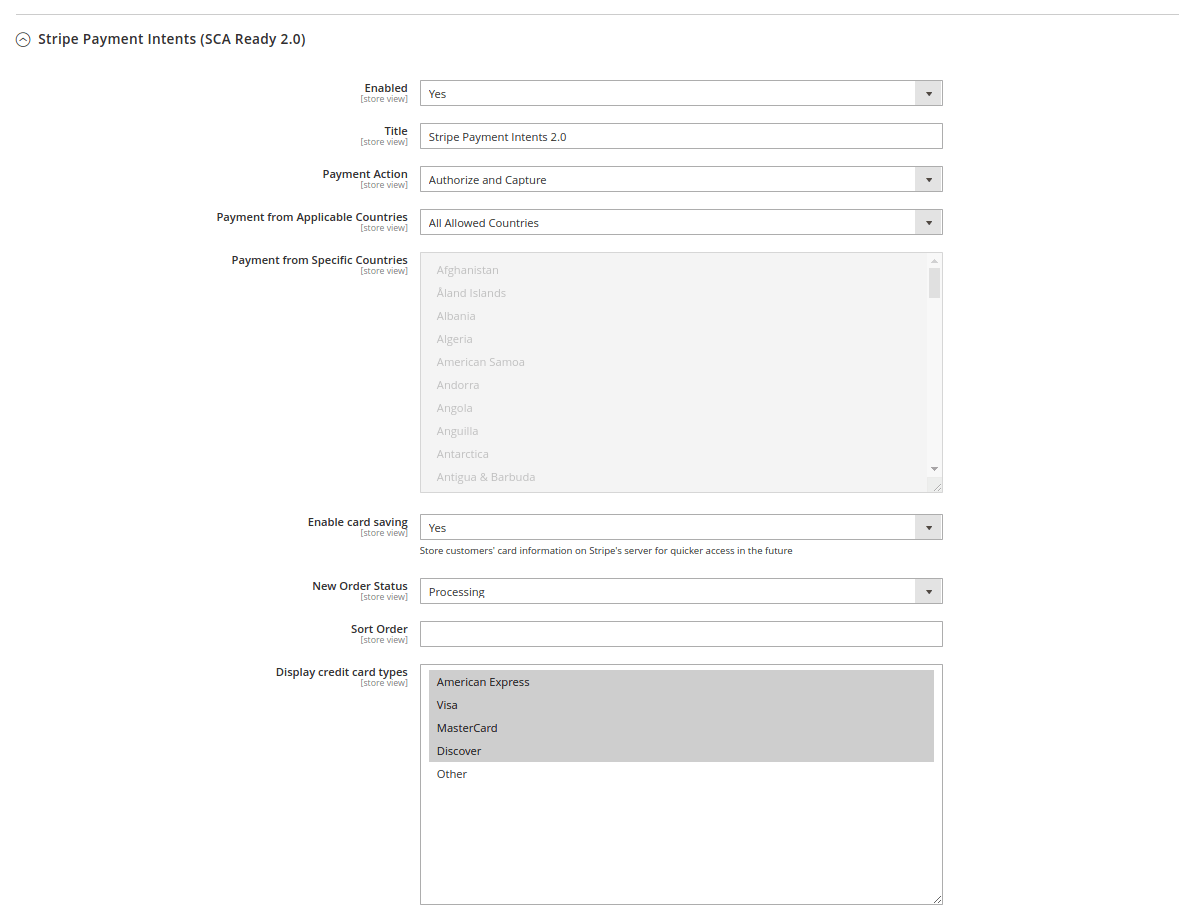

Stripe Payment Intents (SCA Ready
...
2.0)
Go to Store > Configuration > Payment Methods > Stripe Payment Gateways > Stripe Payment Intents (SCA Ready 2.0)
- Enable: Choose Yes to enable Paya Form Gateways
- Title: The title of the payment method displayed on the checkout page
- Payment Action :
- Authorize Only: check for the card for validity but not charge the account yet until the order is approved and invoiced.
- Authorize And Capture: charge the debit/credit card at the time of the order is placed.
- Delete Account Vault Paya When Deleting A Card: Select yes to delete Account Vault Paya when deleting the card.
- Payment from Applicable Countries :
- All Allowed Countries: Enable all allowed countries to make payment.
- Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
- Enable card saving: Allow customers to save credit cards for future purchases. Customers' credit card info will be tokenized for security purposes.
- New Order Status: Set order status for orders.
- Sort Order: The order of the payment method that will be displayed on the checkout page.
- Display credit card types: Show image card type in checkout

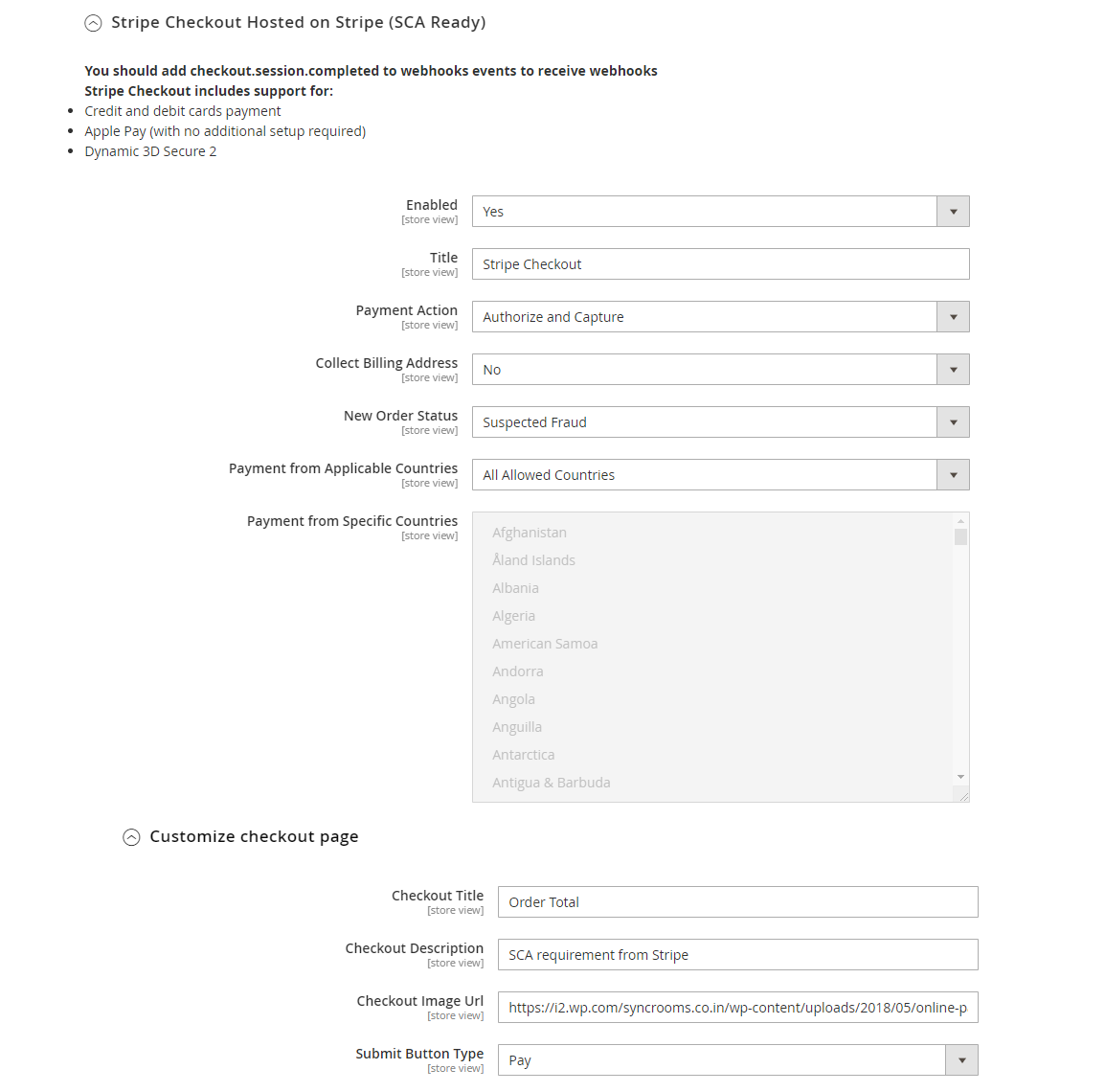

Stripe Checkout Hosted on Stripe (SCA Ready)
Enable: Choose
...
Enable: choose Yes to active Stripe Checkout Hosted on Stripe on the storefront.
...
New Order Status: set the status for the new order on the order page at the backend.
Processing: The payment is made successfully and an order invoice is issued.
Suspected Fraud: No invoice is issued.
Payment from Applicable Countries: set the countries that the payment method is applied.
All allowed countries: Enable all allowed countries to make paymentpayments.
Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
...
- Checkout Title: enter the title for the payment on the checkout page.
- Checkout Description: enter the description on the checkout page so that the purchaser can have more details about the payment method.
- Checkout Image URL: fill in this field with the URL of the image on the checkout page.
- Submit Button Type: choose the text for the submit button on the checkout page. There are four options: Auto, Pay, Book, Donate.

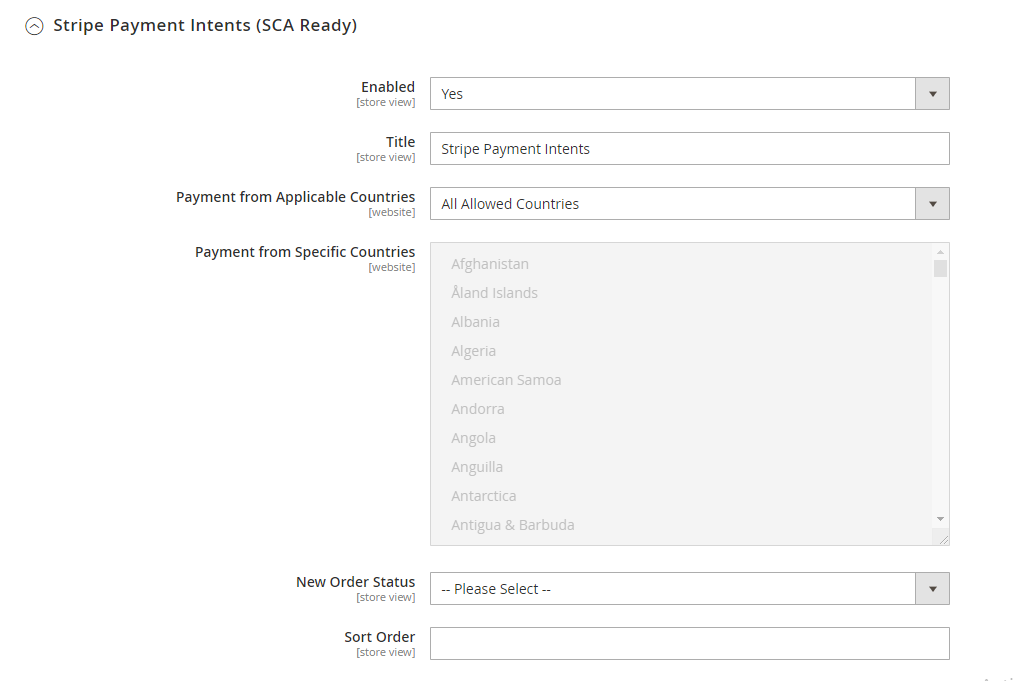

Stripe Payment Intents (SCA Ready)
Enable: choose Choose Yes to active Stripe Payment Intents (SCA Ready) on the storefront.
Title: enter the title for the payment method on the payment list on the checkout page.
Payment from Applicable Countries:
All allowed countries: Enable all allowed countries to make paymentpayments.
Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
New Order Status: set the status for the new order on the Order page at the backend.
Processing: The payment is made successfully and an order invoice is issued.
Suspected Fraud: No invoice is issued.
Sort Order: set the order of the payment on the payment method list.
Stripe Payment
Enabled: Choose Yes to enable the Stripe payment method.
Title: the title of the payment method displayed on the Checkout Page.
You can set the Payment Action to be Authorize and Capture or Authorize Only
- Authorize Only (Authorization): will check the card for validity but not charge the account yet until the order is approved and invoiced.
- Authorize and Capture(Sale): will charge the debit/credit card at the time of the order submission.
Select Stripe API Integration: There are 3 Stripe API to choose
...
Display payment button: Enable this option to display Apple Pay, Google Pay, and Microsoft Pay payment button in Stripe payment method
3D Secure: Choose Yes to enable 3D secure for Stripe payments
...
Force 3D secure: Choose Yes to force 3D secure application.
Enable card saving: Allow logged in customers to save credit card information.
Enable Enable MOTO: Allow admin to make payment from backend.
You can set the New Order Status: Processing, Suspected Fraud
- Processing: The payment is made successfully and an order invoice is issued.
- Suspected Fraud: No invoice is issued.
Allowed Credit Card Types: You can choose which credit card types are accepted on your site by choosing one or more items.
Payment from Applicable Countries:
- All allowed countries: Enable all allowed countries to make payment.
- Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
In addition, you can add/edit the Instructions to instruct customers how to do payment.
Sort Order: The order of the payment method that will be displayed on the checkout page.
Stripe IFrame Checkout Form
Enabled: Choose Yes to enable the IFrame checkout form method
Title: Edit the title for the payment method. Here we recommend you to set it as "Stripe Checkout IFrame"
You can set the Payment Action to be Authorize and Capture or Authorize Only
- Authorize Only (Authorization): will check the card for validity but not charge the account yet until the order is approved and invoiced.
- Authorize and Capture(Sale): will charge the debit/credit card at the time of the order submission.
You can set the New Order Status: Processing, Suspected Fraud
- Processing: The payment is made successfully and an order invoice is issued.
- Suspected Fraud: No invoice is issued.
3D secure: The 3D secure settings for this method will follow the 3D secure settings in Stripe Payment Settings. Note that you don't have to enable Stripe Payment Settings to make it work, just change the 3D secure settings then Save Config.
Name of website displayed on Checkout: Your store name.
Panel Label: The label of the payment button in the Checkout form
You can turn on Allow Stripe Checkout to collect customer's billing address, shipping address and zip code
Remember Me: If you set this option to Yes, Stripe will save the customer's information for later purchase in every website that use Stripe Payment Gateway.
Logo image:
Sort Order: The order of the payment method that will be displayed on the checkout page.
Payment from Applicable Countries:
- All allowed countries: Enable all allowed countries to make payment.
- Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
Register Apple Pay: Enter your domain here to verify for Apple Pay.
Enabled: Choose Yes to enable Apple Pay, Google Pay, Microsoft Pay
Title: Fill in the title for the payment method
You can set the Payment Action to be Authorize and Capture or Authorize Only
- Authorize Only (Authorization): will check the card for validity but not charge the account yet until the order is approved and invoiced.
- Authorize and Capture(Sale): will charge the debit/credit card at the time of the order submission.
You can set the New Order Status: Processing, Suspected Fraud
- Processing: The payment is made successfully and an order invoice is issued.
- Suspected Fraud: No invoice is issued.
Replace default Place order button: Enable to replace the default Place Order button with Apple Pay, Google Pay or Microsoft Pay Place Order button. Note that this option can cause conflict with One step Checkout extension, so if currently you are using One Step Checkout, turn this option off.
To use Google Pay (for PC), customers have to add their credit card to the browser.
Button type: You have 3 options for the payment button type - Default, Donate or Buy
Button Theme: 3 options as Dark, Light, Light Outline
Sort Order: The order of the payment method that will be displayed on the checkout page.
Payment from Applicable Countries:
- All allowed countries: Enable all allowed countries to make payment.
- Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
Alipay Payments
You can enable Alipay Payment easily just by choosing Yes in Enabled then Save Config.
...
In Denmark, Norway, Sweden, and Switzerland, the currency for the payment will be exchanged to EUR.
Giropay Payments
The Giropay currency is EUR.
You can enable the payment method by choosing Yes in Enabled then Save Config.
SOFORT Payments
...
You can enable the payment method by choosing Yes in Enabled.
Title: Fill in the title for the payment method
Allow select bank country: Enable customers to choose their country to make payments.
Default Bank Country: Set the default bank country to be displayed on checkout: Austria, Belgium, Germany, Italy, Netherlands, Spain
Allow select language: Enable customers to choose the preferred language
Default language: Set the default language for the payment method: English, German, Spanish, Italian, French, Dutch, Polish.
Sort Order: The order of the payment method that will be displayed on the checkout page.
In addition, you can add/edit the Instructions to instruct customers how to do payment.
iDEAL Payments
...
You can enable the payment method by choosing Yes in Enabled.
Title: Fill in the title for the payment method
Use iDEAL Bank Element Interface: If you choose Yes, the payment method will be displayed with iDEAL interface.
If you don't use the iDEAL interface, you can choose No and change the settings as follows:
Allow select bank country: Enable customers to choose their country to make payments.
Default Bank: If you don't want to allow customers to choose their bank. You can set a default bank.
In addition, you can add/edit the Instructions to instruct customers how to do payment.
...
You can enable the payment method by choosing Yes in Enabled.
Title: Fill in the title for the payment method
Allow select language: Enable customers to choose the preferred language
Default language: Set the default language for the payment method: English, German, French, Dutch.
In addition, you can add/edit the Instructions to instruct customers how to do payment.
P24 Payments/ EPS Payments/ Multibanco Payments
...
You can add/edit the Instructions to instruct customers how to do payment.
When done, please press Save Configuration then go to Cache Management to flush cache.

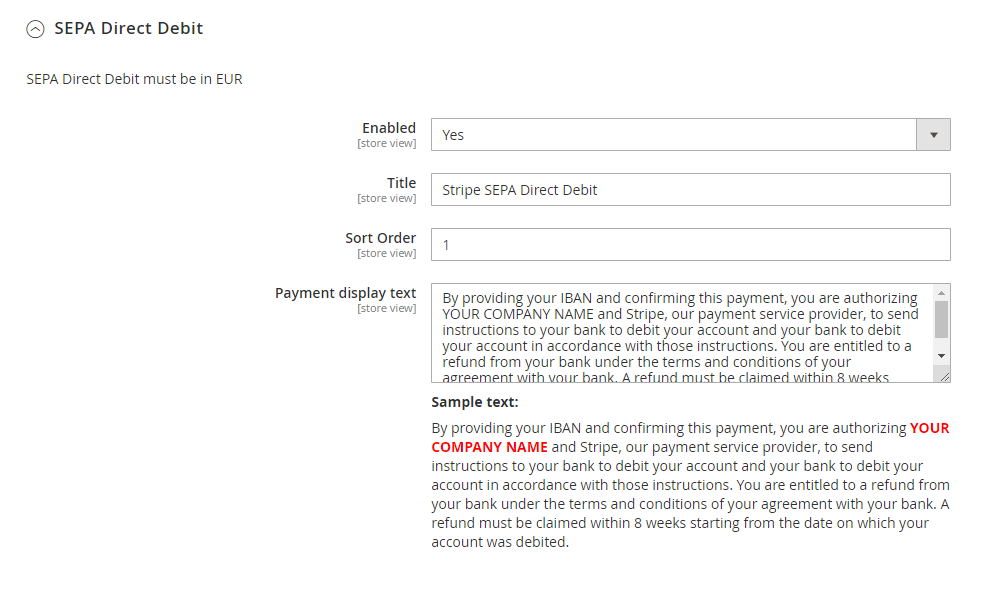

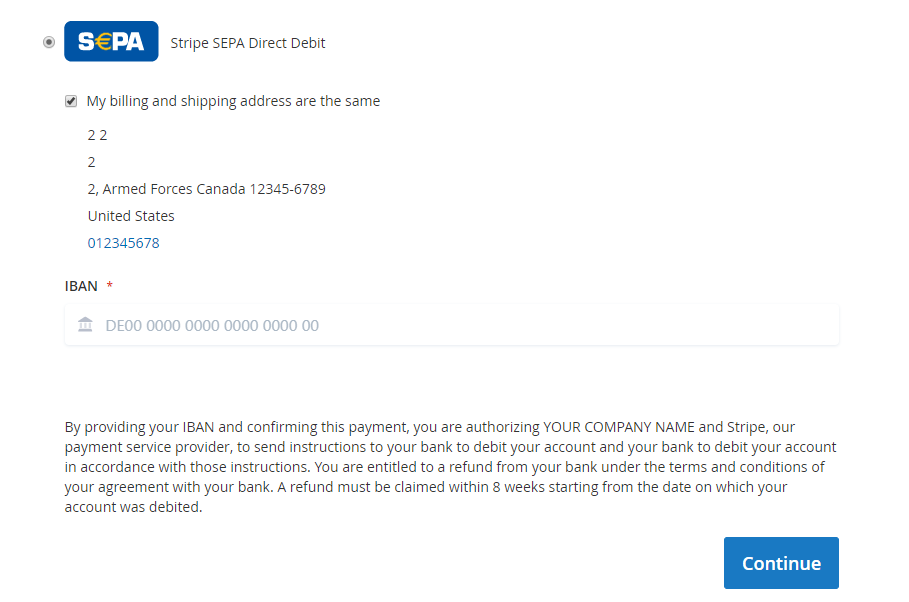

SEPA Direct Debit
Enable: choose Yes to active SEPA Direct Debit on the storefront.
...
Payment Display Text: Enter the text for the description providing more detail for the payer about the payment method on the checkout page.
...
Main Functions
Easily Checkout Using Credit Card

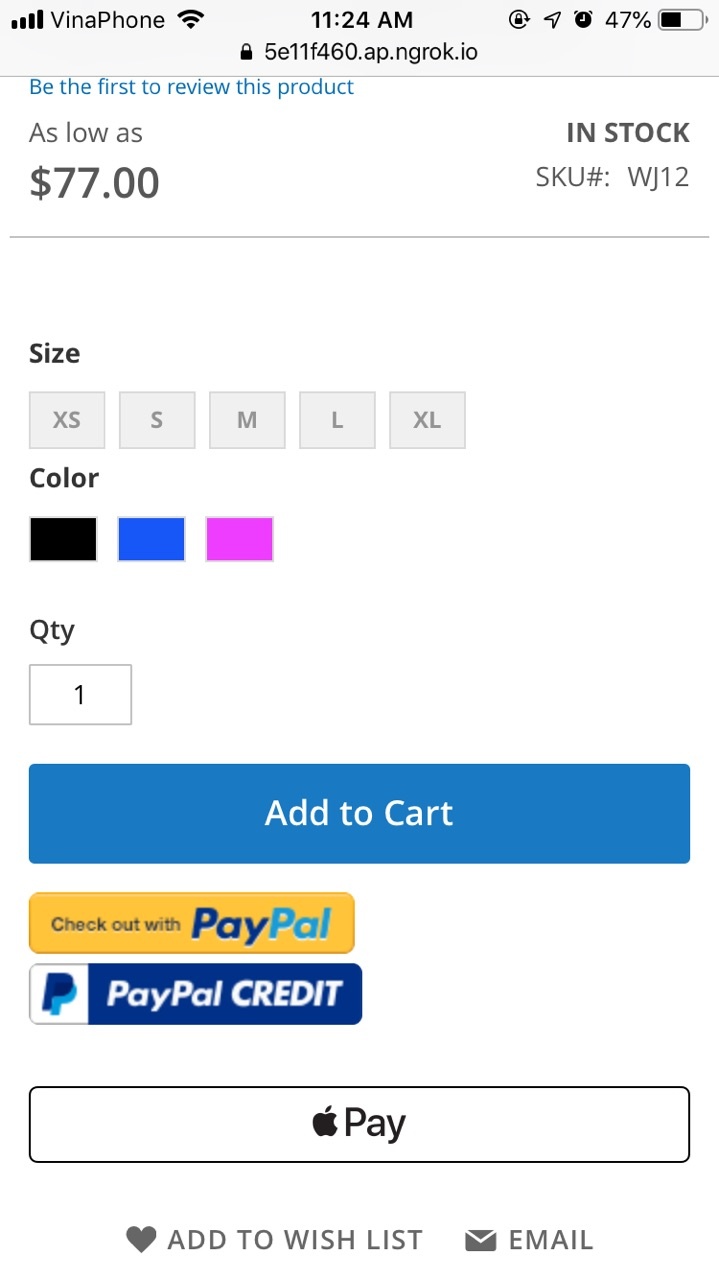

At front end, customer can add the items into shopping cart by clicking the Add to Cart button.
Then, go to the checkout page. Customer The customer fills in his/her shipping address and selects the payment method.selects the payment method.

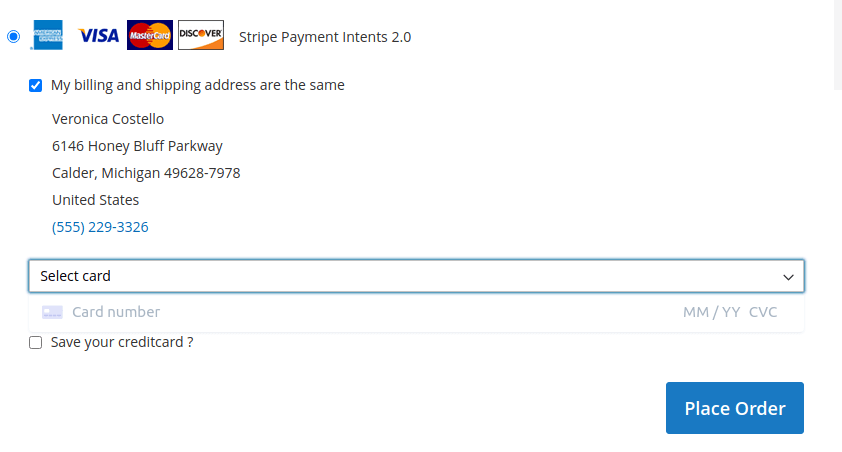

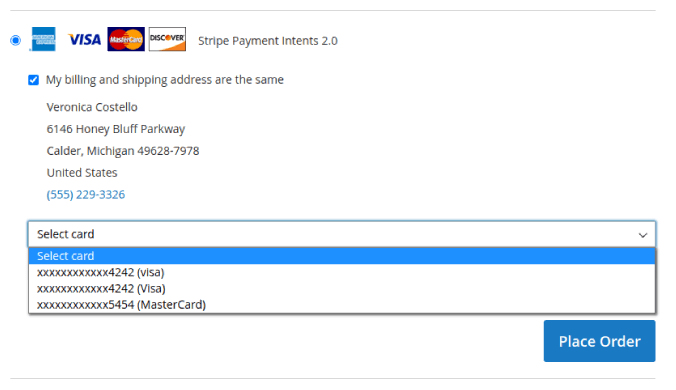

Checkout with Stripe Payment Intents 2.0
After reaching the checkout page, customers could see the Stripe Payment Intents 2.0 payment option.
- If the customer wants to trigger the Save Card function, they could select the Save your credit card? checkbox.

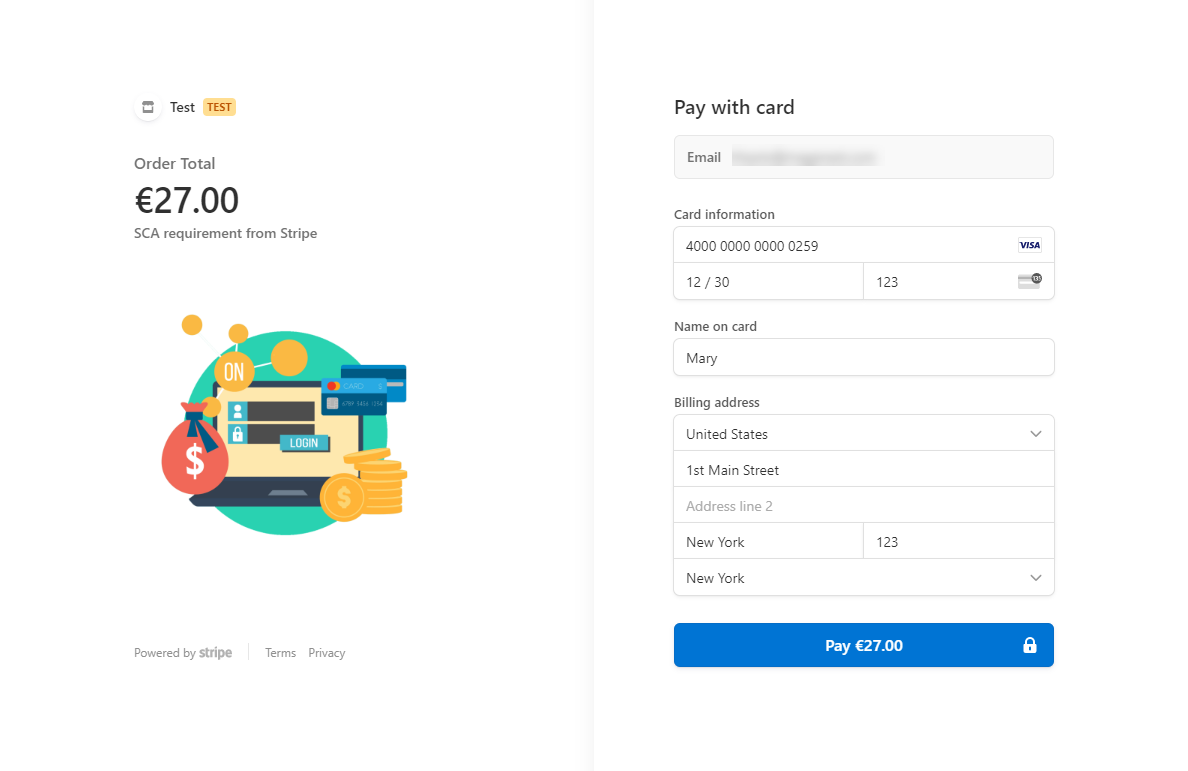

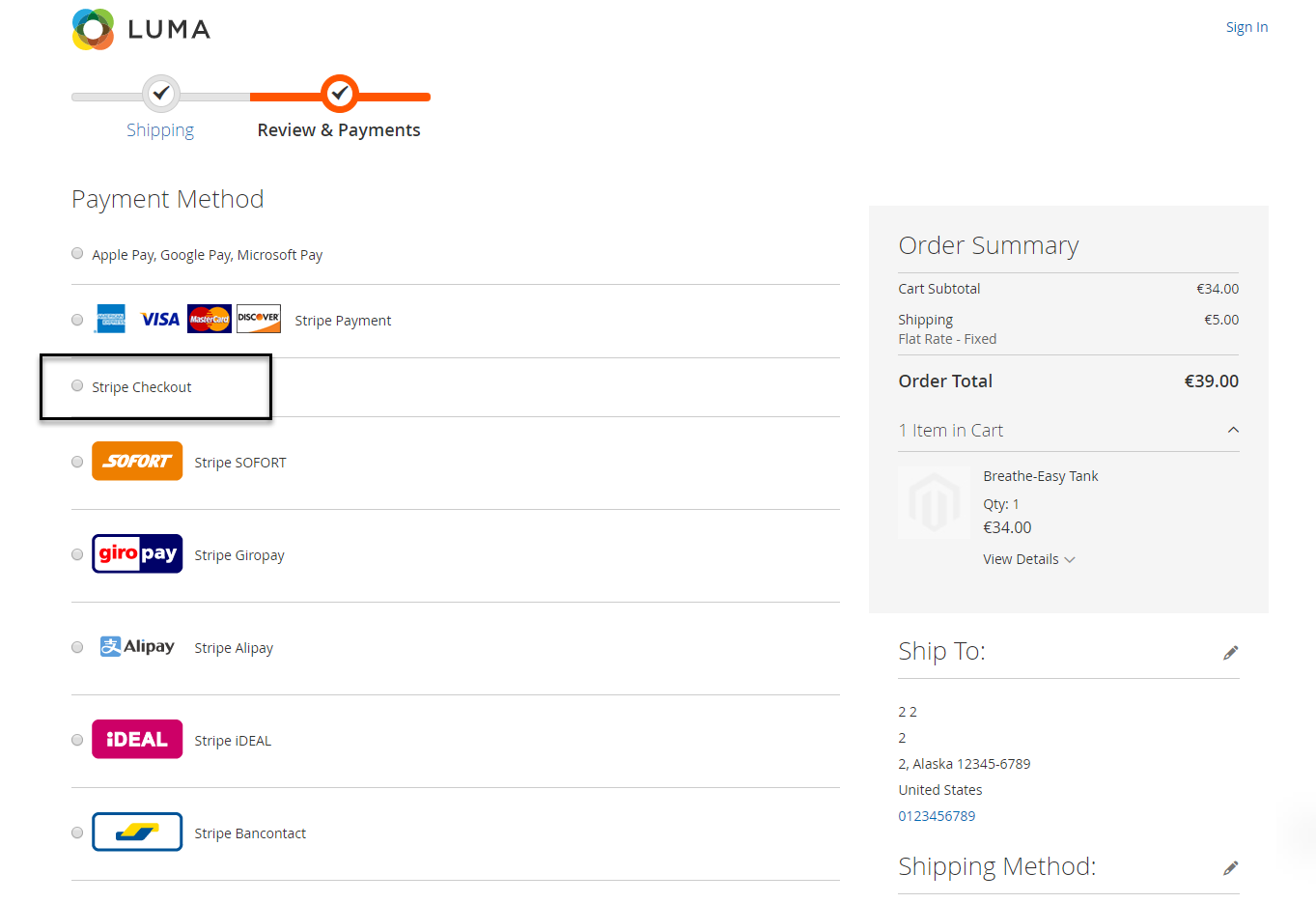

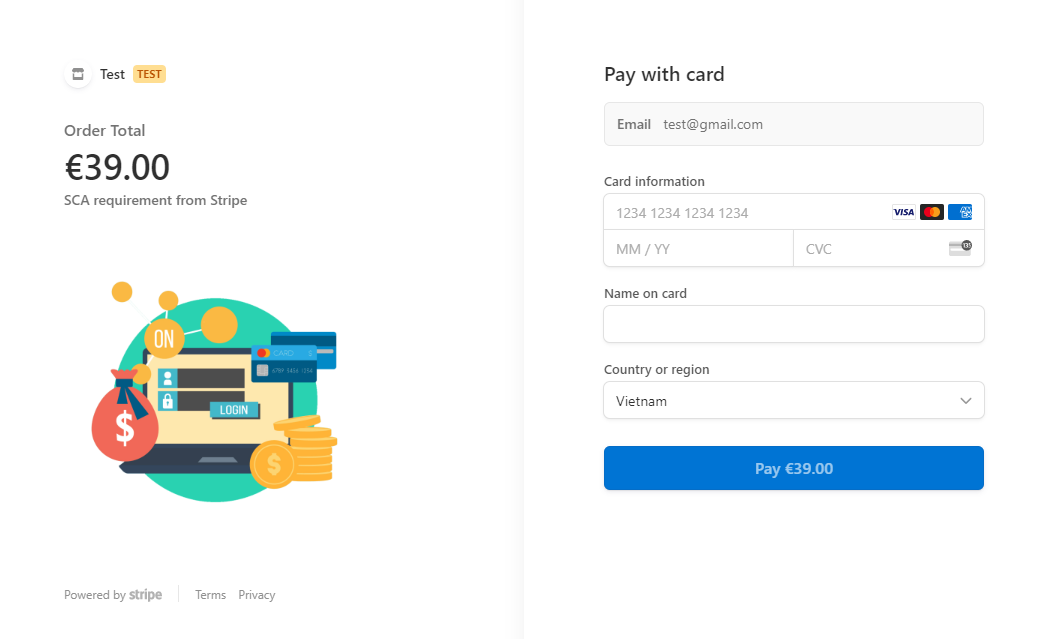

Checkout with Stripe Checkout hosted on Stripe (SCA Ready)
- After filling the Shipping Address information, the customer chooses Stripe Checkout as a payment method.
- Enter the necessary information then click on Pay button.
The checkout page when merchant set No on Collect Billing Address on the configuration.
...

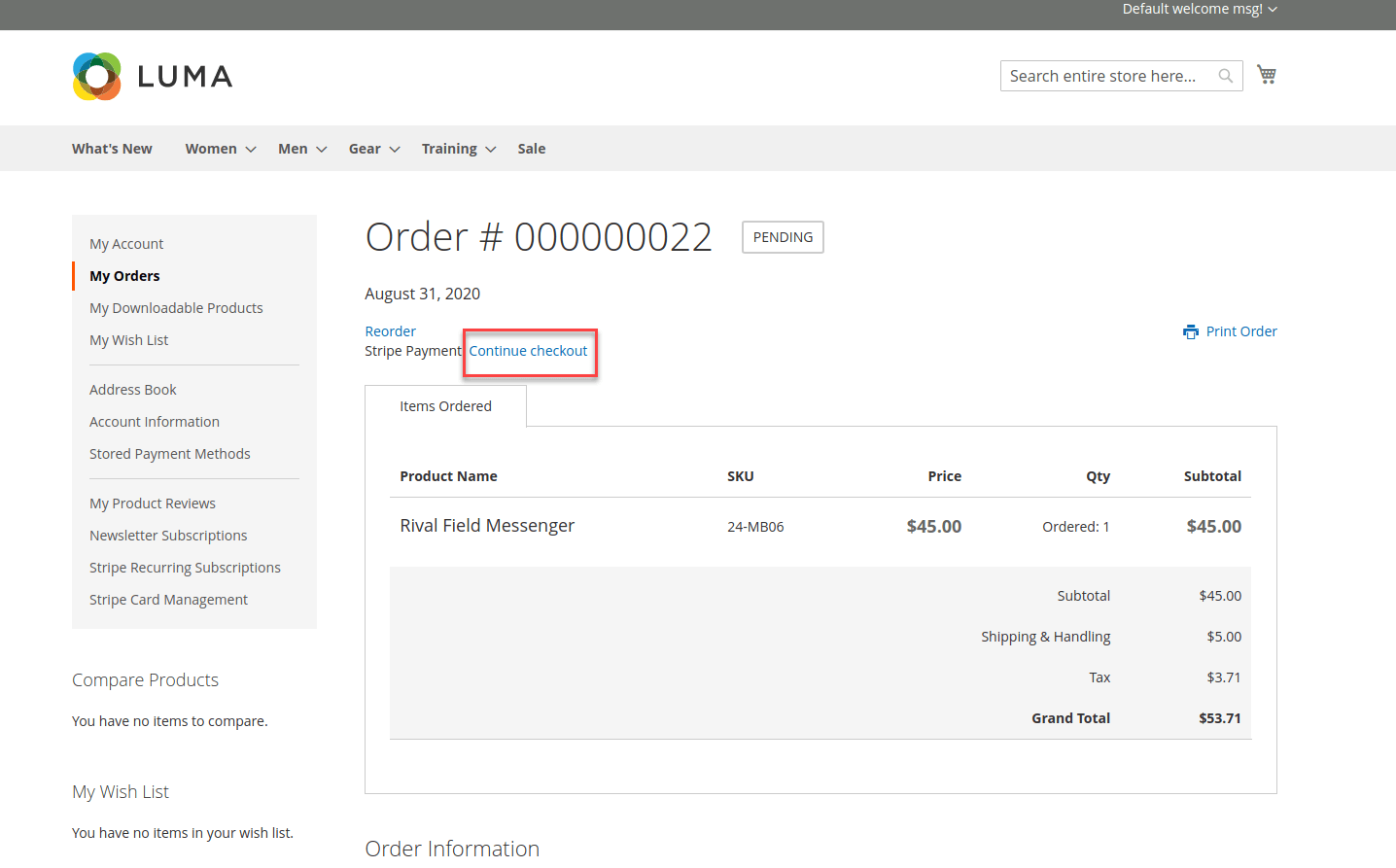

- In case the Customer select Back at the payment form, they will be redirected back to My Order History Page, where they can choose to continue the payment process
...

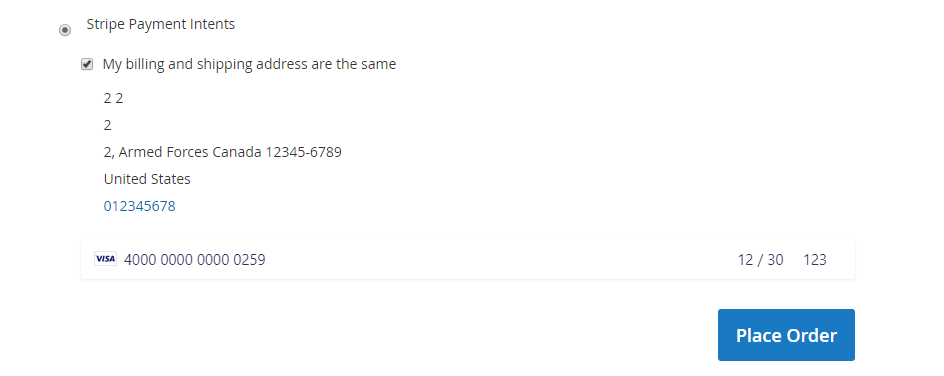

Checkout with Stripe Payment Intents (SCA Ready)
...
- After filling the Shipping Address information, the customer chooses Stripe Checkout Payment Intents as payment method.
- Enter the necessary information then click on Place Order when finishing.

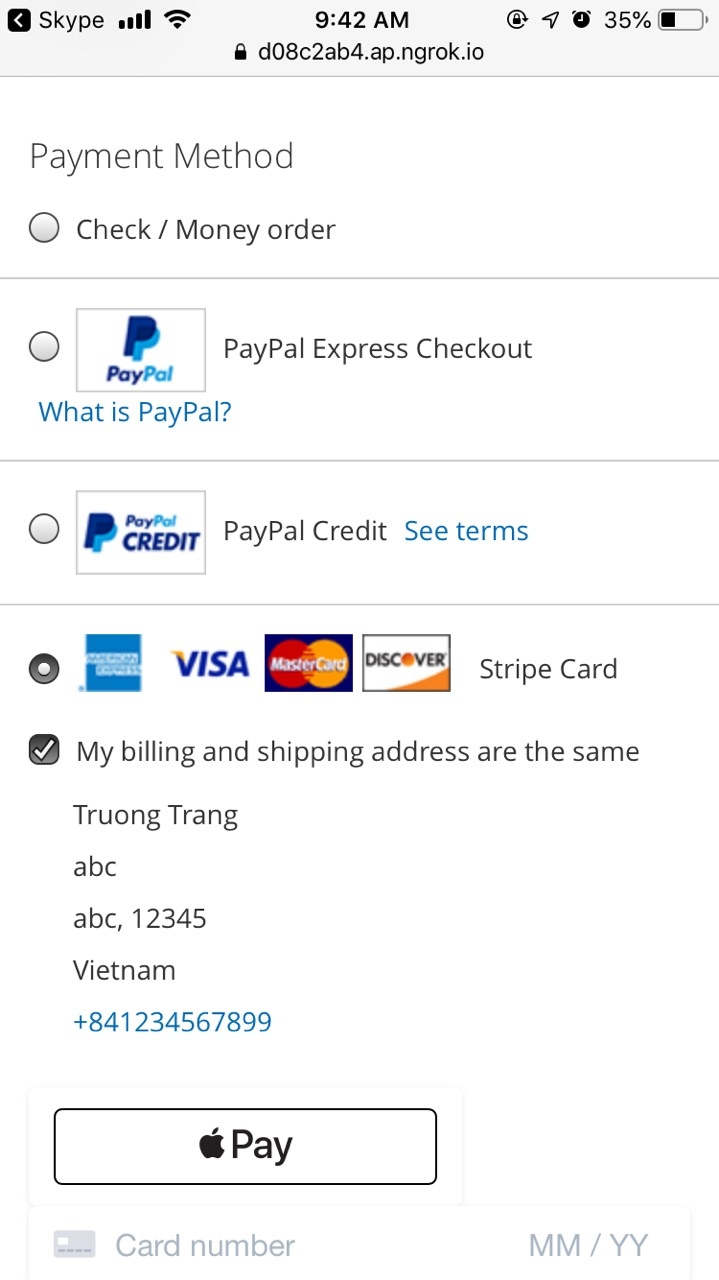

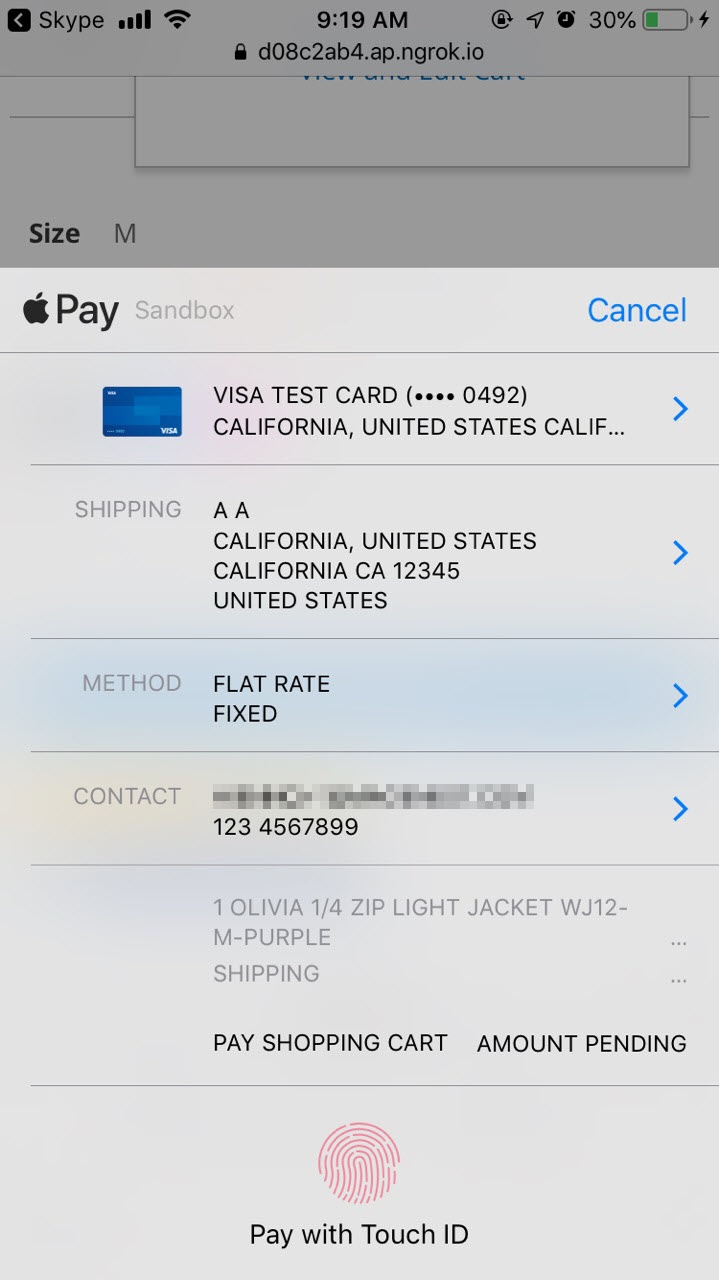

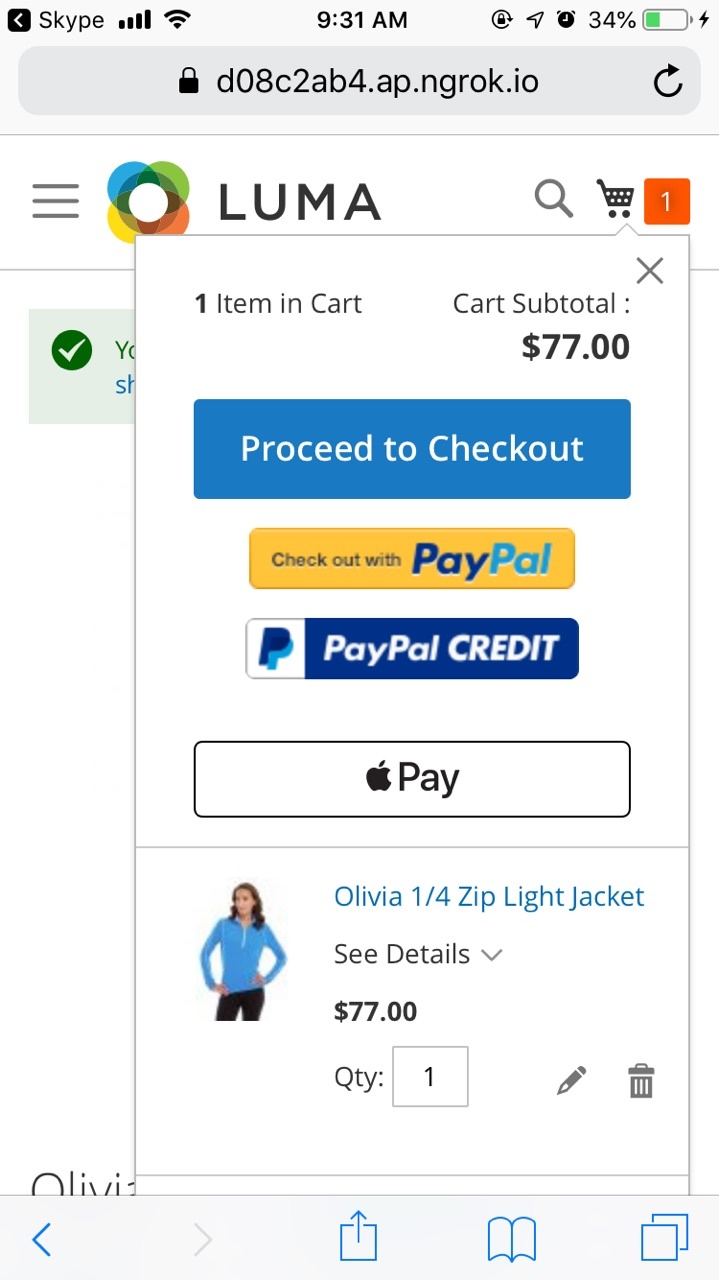

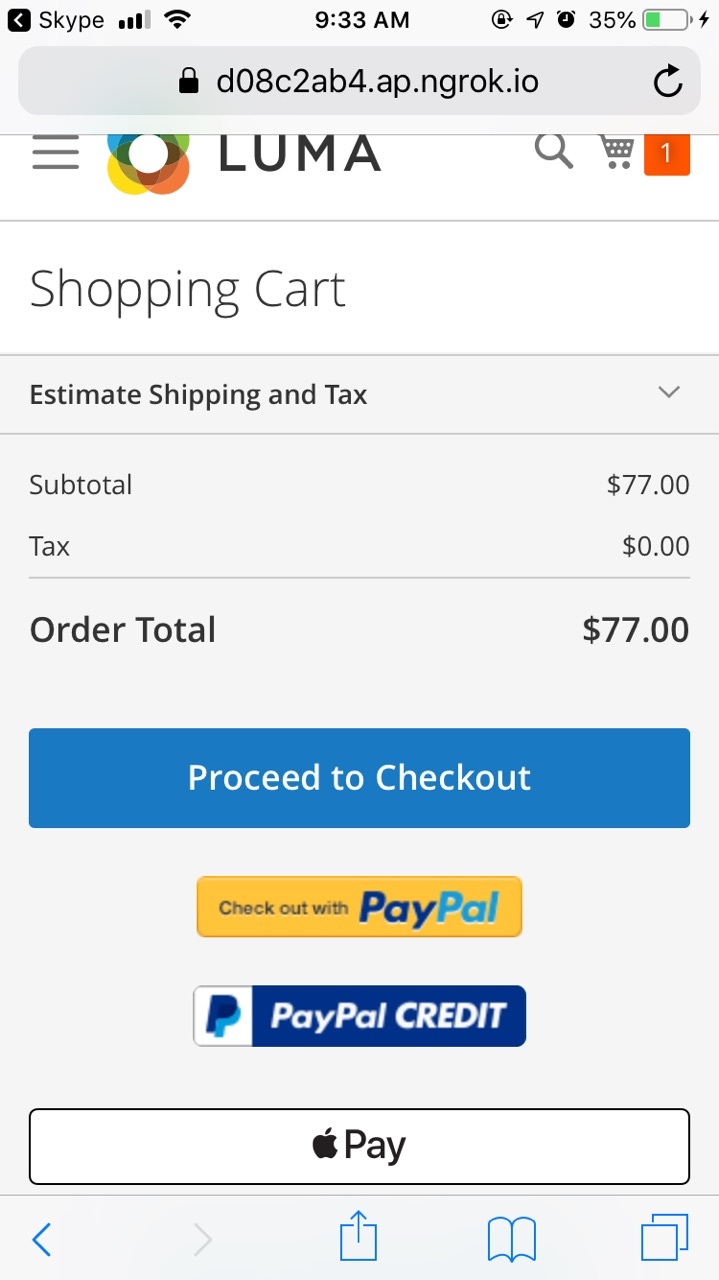

Checkout with Apple Pay/Google Pay
...
In case your browser can't pay button to transfer, follow this guide to display Stripe Payment request button.

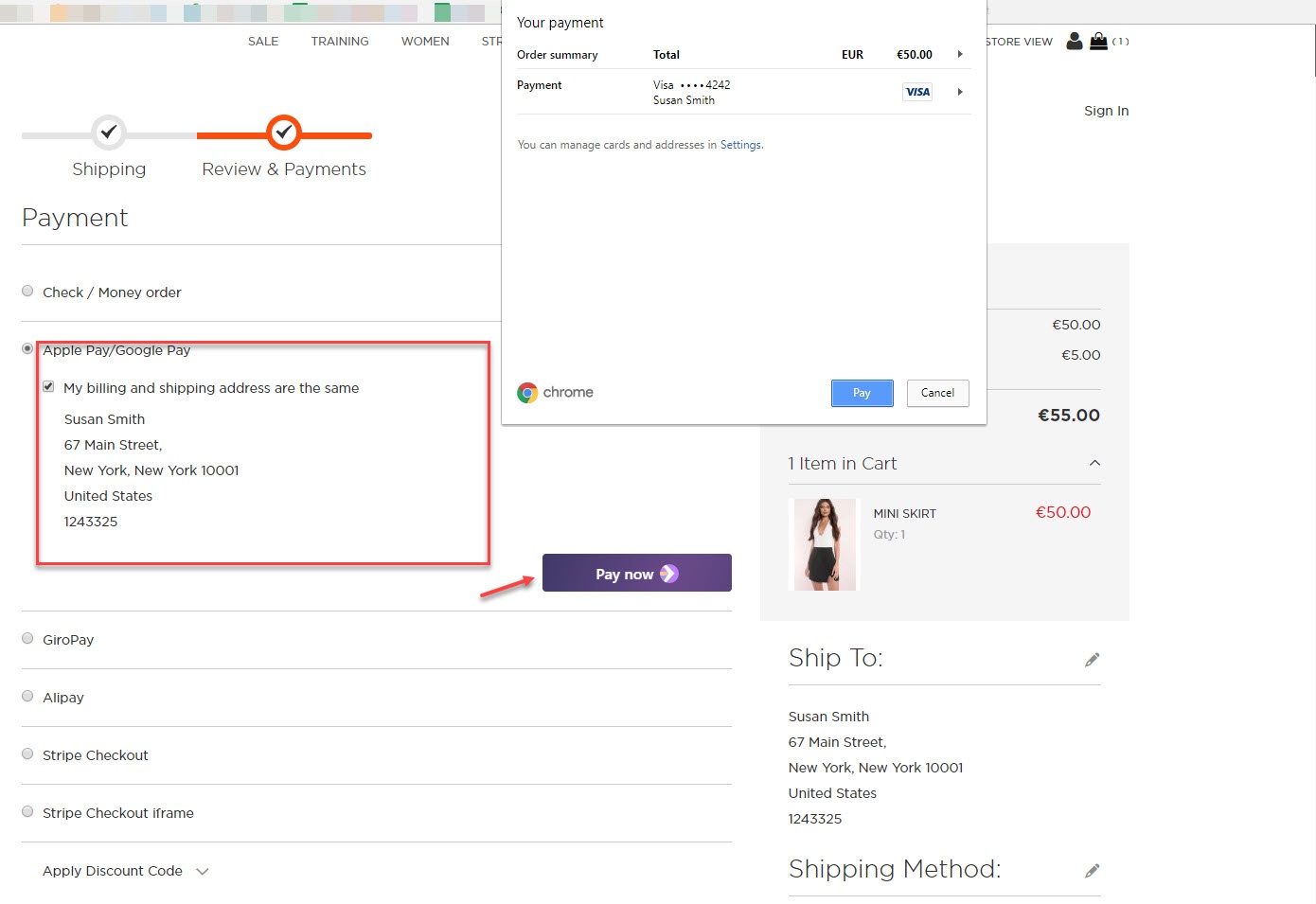

Mark the checkbox "My billing and shipping addresses are the same" if the shipping address and the billing address are not different.
...

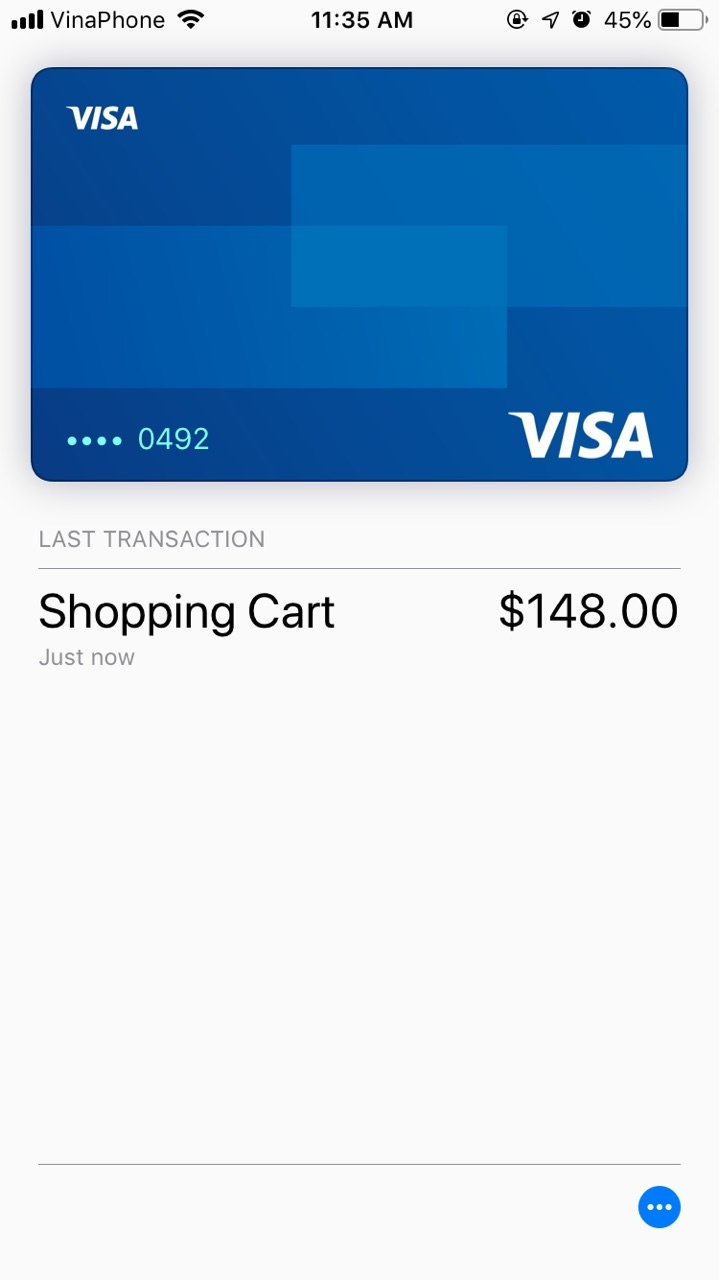

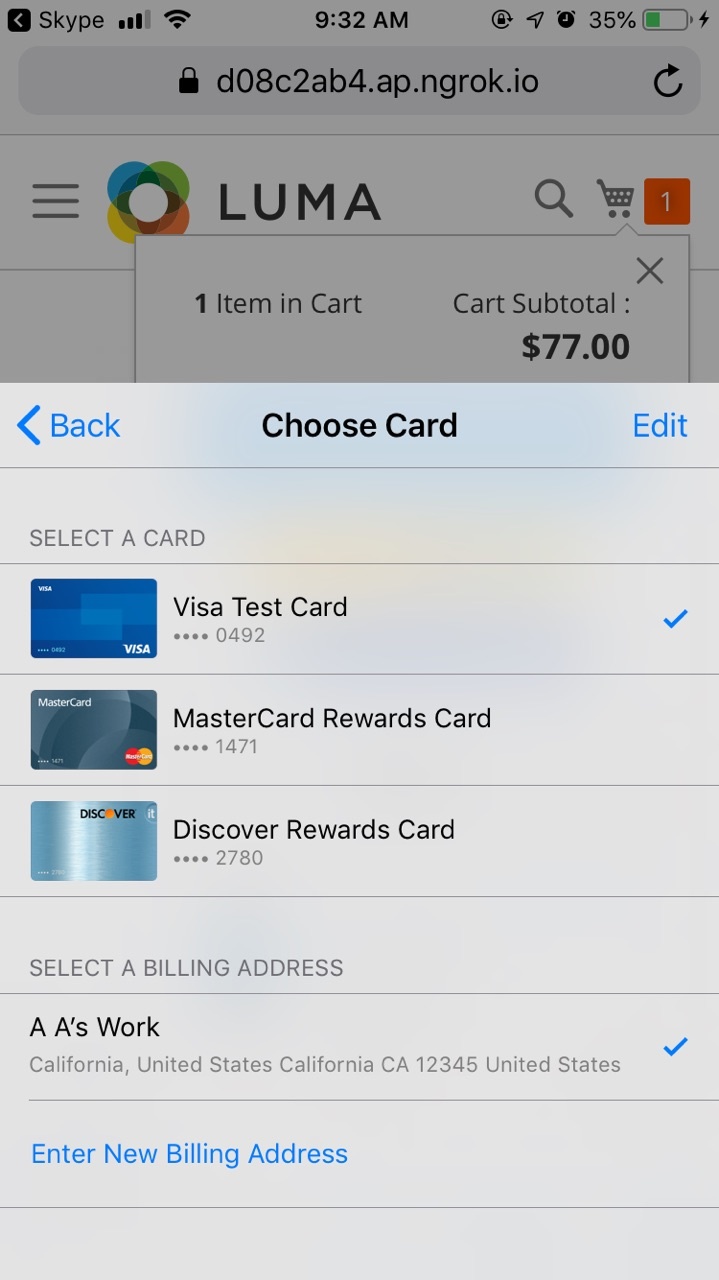

Stripe Apple Pay Checkout
After successful payment, at at the Payments tab of Stripe, the order will be updated corresponding with Magento.
Checkout with Stripe Giro Pay
- Mark the checkbox "My billing and shipping addresses are the same" if the shipping address and the billing address are not different.
- If they are different, fill in the billing address then click "Update"..
After filling in all the neccessary necessary information, click Continue to place the order.
Then, it redirects to Stripe Giro Pay Payment Page and buyer can finalize his payment there.
Checkout with Stripe Alipay
- Mark the checkbox "My billing and shipping addresses are the same" if the shipping address and the billing address are not different.
- If they are different, fill in the billing address then click "Update".
After filling in all the neccessary necessary information, click Place Order
Then, it redirects to Stripe Alipay Payment Page and buyer can finalize his payment there.
Checkout with Stripe Checkout (Direct Checkout)
- Mark the checkbox "My billing and shipping addresses are the same" if the shipping address and the billing address are not different.
- If they are different, fill in the billing address then click "Update".
- Fill in the credit card information
If the customer sign signs in with an account, he/she can use the save card function by ticking in the Save your credit card box.
After filling in all the neccessary necessary information, click Place Order to finalize the payment.
Checkout with Stripe IFrame Checkout (Redirect Checkout)
Another payment method is Stripe Checkout Iframe. It supports wonderful functions with Credit Card, Alipay, and Bitcoin.
When customer Place order, an Iframe form will be displayed as below with 3 choices for payment methods.
...
Credit card Iframe checkout form
Alipay Iframe checkout form
Bitcoin Iframe checkout form
If the customer enters his mobile phone number, Stripe will send a 6-number-verification code to confirm his payment info.
Support 3D secure:
When customers use type of card provided with 3D secure function. Stripe will turn on automatic mode to check. The operation will redirect to processing page:
Press Success button. The inform result will be sent to customer.
Checkout with SEPA Direct Debit
...
- After filling the Shipping Address information, customer chooses Stripe Checkout SEPA Direct Debit as payment method.
- Enter the necessary information then click on Place Order when finishing.
Check out with other payments
A part from Stripe checkout, Stripe Pay also supports multiple payment methods for customer convenience.
Making payment from backend (MOTO)
...
Using PCS DSS and Stripe v3.2 security standards, you can use customers's saved cards to make payment from backend for them. In this way, customer's credit card info will be secured, rather than admin types credit card info.
View Order:
When the transaction is completed, customers can review their orders by clicking Sales > Orders > View.
Capture Invoice:
While invoice is not created meanings customers select Payment Action in Authorize Only status. Customers can capture invoice in their request. However, quantity of products in new invoice must be smaller or equal with pre-order and invoice only is submitted once.
View Invoice:
By clicking invoice and pressing View, customer can see the content of invoice that you want:
Partial or total refund:
...
About partial refund, it applies for many frequencies and up to out of products.
- Checkout with Apple Pay
Customers who use Apple's devices can use Apply Pay payment method in: Product page, cart, cart page, checkout page.
Product page
Cart
Cart page
Checkout page
Choose credit card
Shipping method
Completed
...
Update
- When a new update is available, we will provide you with a new package containing our updated extension.
- You will have to delete the module directory and repeat the installing steps above.
- Flush the config cache then your store and newly installed module should be working as expected.
...
...
Support
- We will reply to support requests within 2 business days.
- We will offer lifetime free update and 6-month free support for all of our paid products. Support includes answering questions related to our products, bug/error fixing to make sure our products fit well in your site exactly like our demo.
- Support DOES NOT include other services such as customizing our products, installation and uninstallation service.
...
...
Once again, thank you for purchasing our extension. If you have any questions relating to this extension, please do not hesitate to contact us for support.
