Introduction
...
Sage Pay Payments extension for Magento 2 is great tool allowing the store owners to sync data form their magento store to SagePay Payment Gateway.
Magento 2 Opayo Payment extension is the most secured payment gateway in the UK.
Extension's page: Sage Pay Payments
Highlight Features
- Allow admins to integrate their SagePay Opayo account to their magento Magento stores.
- Allow customers to checkout using credit card payment
- Enable or disable the gateway.
- Specify allowed credit card types and countries.
- Specify the minimum and maximum order amount.
- Add a layer of security with 3D Secure Checkout.
- Support multiple stores.
- Integrate Save Card Function.
- Customer can capture invoice up to quantity product that they desired.
- Admins can easily check transaction history.
- Admins can easily manage profiles in the backend.
- Customers can also manage their profiles and cancel them if desired.
- Admin can create a credit memo for refunding.
- Easily perform Gift Aid enabled in Sage Payin Opayo.
3D Secure version 2 available in Opayo Direct Method (Learn more about 3D secure ver 2 in here).
System Requirements
Your store should be running on Magento 2 version 2.1.x.
...
- Configuration at magento backend
; 2.2.x, 2.3.x,2.4.x
Tutorial Video
| HTML |
|---|
<iframe style="display: block;margin: auto;" width="560" height="315" src="https://www.youtube.com/embed/YPIJgfm0Ljg" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe> |
Configuration
Firstly, you have to configure the Opayo Payment Extension at Magento back end by going to Stores Firstly, admin need to configure the SagePay Payments extension at Magento back end by clicking on Store > Configuration > Sales > Payment Methods > SagePay Opayo Payment Gateway.In addition, admin can set information for:

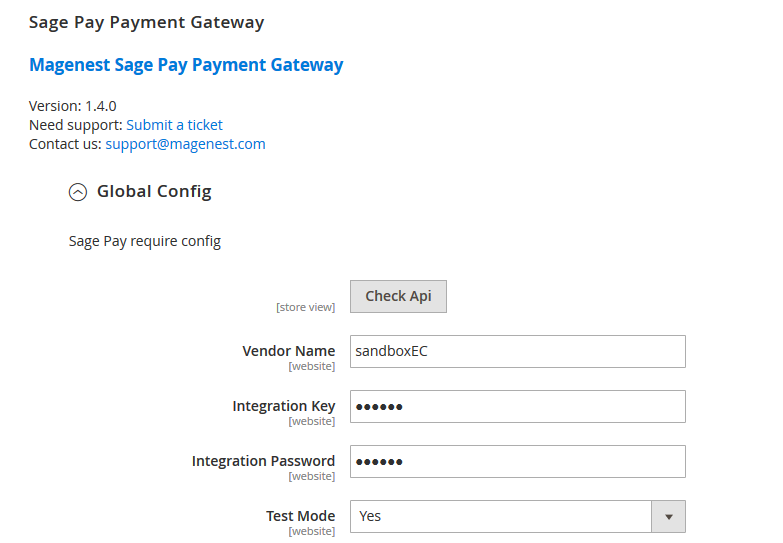

Opayo Global Config
Fill in Vendor Name, Integration Key, Integration Password
...
obtained from your Opayo credentials.
In
...
our example, we
...
use account and API of
...
Opayo to implement transaction in test mode
...
. You can obtain this by going to https://test.sagepay.com/
...
There are two accounts that customers can use: sandbox and sandboxEC. With SandboxEC accounts, users can be supported furthermore such as: 3-D Secure Checked, Strict AVS, CV2 and furthermore.
Note: Customer must use correct SagePay account to config. If account does not belong to SagePay, SagePay could not process your transaction. Payment is unsuccessful.
Payment Action: Authorize and Capture:
...
| Status | ||||
|---|---|---|---|---|
|
Note: 3D secure version 2 is available in Opayo Direct method only.
- Enable 3D Secure Ver 2: choose Yes to enable 3D Secure version 2, which contains many improvements to make it easier to achieve SCA on e-commerce transactions.
- Browser Javascript Enabled: choose Yes to enable the browser Javascript.
Turn on Test Mode when you use test credentials. Choose the Live Mode when you go live.
You can also turn on Ignore address check to skip the address and postcode check in test mode.
Server domain: Fill in your site domain
Form Encryption Password: Obtained from Opayo. Go to Settings > Administrators > Password Details. This field is used for Opayo Form configuration.
Apply 3D Secure with 4 options: Default, Force, Disable, Force & Ingore.
- Default: Use Default My Opayo Settings.
- Force: Apply authentication even if the 3D Secure is turned off.
- Disable: Disable authentication and rules.
- Force & Ignore: Apply authentication but ignore rules.
Apply AVS, CVC Check with 4 options: Default; Force; Disable; Force & Ingore.
- Default: Use Default My Opayo Settings
- Force: Apply authentication even if the AVS, CVC Check is turned off
- Disable: Disable authentication and rules
- Force & Ignore: Apply authentication but ignore rules
Allow Gift Aid: Allow customers to donate to charity. Note that this function only works if your Sage account is enabled for Gift Aid.
Collect Recipient Details:
Send transaction email: This is the setting for Opayo transaction email, which is sent when customers make payment with Opayo Form. There are three options:
- Do not send to either customer or vendor email: Will not send Opayo transactions to customers or vendors via emails.
- Send customer and vendor transaction email: Will send Opayo transactions to both customers and vendors via emails.
- Send vendor email but not customer email: Will send Opayo transactions to vendor's email only.
Vendor Name, User and Password: The credentials you got from Opayo in the above step.
Payment language: The language of the payment page (English, French, German, Spanish, Portuguese, Dutch).
Payment Surcharge Fee: You can add the extra fee for a selected payment type (MasterCard, Visa Credit, Visa Debit, American Express, Diner's Club, Maestro, VISA Electron) . The fee could be defined as fixed price or percentage of the payment.

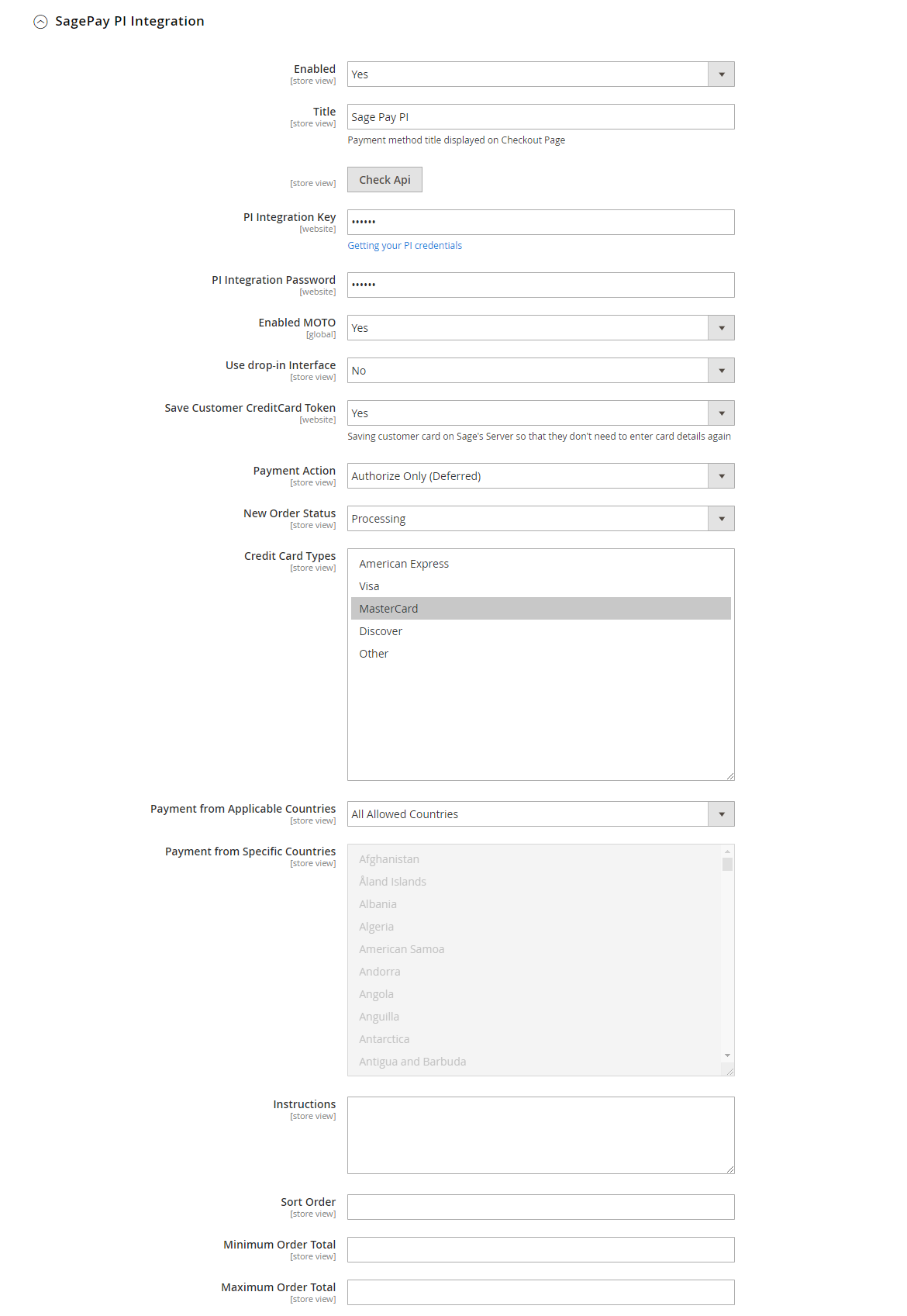

Opayo PI Integration
Enabled: Choose Yes to enable direct checkout for Opayo Payment.
Title: The title of the payment method displayed on the checkout page.
PI Integration Key & PI Integration Password: Obtained from your Opayo account. Click on Check API button to check whether the API is working or not.
Enable MOTO: Allow you to make payments in admin panel for customers buying through email or telephone.
User drop-in interface: Turn this on to show Opayo with drop-in box.
Save Customer CreditCard Token: Allow customers to save credit card token for future purchases.
Payment Action: You can choose between Authorize Only (Deferred) and Authorize and Capture (Payment).- Authorize Only: check for the card for validity but not charge the account yet until the order is approved and invoiced.
- Authorize and Capture (Payment): charge the debit/credit card at the time of the order is placed.
New Order Status: Processing, Suspected Fraud
- Processing: The payment is made successfully and an order invoice is issued.
- Suspected Fraud: No invoice is issued.
Credit Card Types: You can choose which credit card types you want by choosing one or more items.

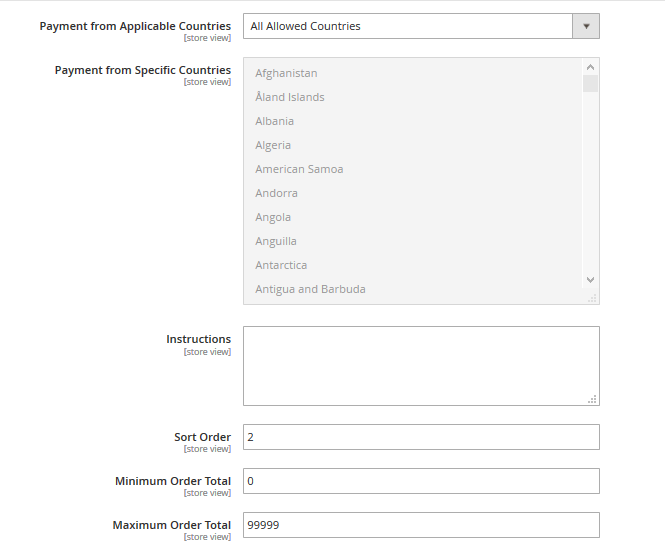

Payment from Applicable Countries:
- All allowed countries: Enable all allowed countries to make payment.
- Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
In addition, you can add/edit the Instructions to instruct customers how to do the payment.
Sort Order: The order of the payment method that will be displayed on the checkout page.
Minimum Order in Total: If the order value is less than this figure, the payment method will not be displayed on the checkout page.
Maximum Order in Total: If the order value is bigger than this figure, the payment method will not be displayed on the checkout page.
After finishing, click Save Configuration.
Integrate with Paypal
To integrate Opayo Payment with your Paypal, please navigate to https://test.sagepay.com/mysagepay/transactions.msp. On the left menu column, choose Pay methods then add your Paypal account on the right in the Use Paypal Express Checkout with Opayo.
Please read these documents from Opayo for more details:
https://www.sagepay.co.uk/support/12/36/adding-paypal-to-your-test-account
https://www.sagepay.co.uk/support/12/36/enabling-sage-pay-on-your-paypal-test-account
https://www.sagepay.co.uk/support/16/36/linking-paypal-to-your-live-account
Create User in Opayo
In Opayo page, choose Users in the Settings, then create an user by clicking on the New user button. You will use this user account to link Paypal with your Opayo.
Opayo Form Integration/Paypal
Enabled: Enable Opayo Form with Paypal option.
Title: The title of the payment method displayed on the checkout page.
Payment Action: You can choose between Authorize Only (Deferred) and Authorize and Capture (Payment).
- Authorize Only: check for the card for validity but not charge the account yet until the order is approved and invoiced.
Authorize and Capture (Payment): charge the debit/credit card at the time of the order is placed.
New Order Status:
- Processing: The payment is made successfully and an order invoice is issued.
- Suspected Fraud: No invoice is issued.
Payment from Applicable Countries:
- All allowed countries: Enable all allowed countries to make payment.
- Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
Sort Order: The order of the payment method that will be displayed on the checkout page.
Minimum Order in Total: If the order value is less than this figure, the payment method will not be displayed on the checkout page.
Maximum Order in Total: If the order value is bigger than this figure, the payment method will not be displayed on the checkout page.
Opayo Server Integration
Enabled: Enable Opayo Server.
Title: The title of the payment method displayed on the checkout page.
Authorize and Capture(Sale): will Payment Action: You can choose between Authorize Only (Deferred) and Authorize and Capture (Payment).
- Authorize Only: check for the card for validity but not charge the account yet until the order is approved and invoiced.
Authorize and Capture (Payment): charge the debit/credit card at the time of the order
...
is placed.
...
New Order Status: Processing, Suspected Fraud
- Processing: The payment is made successfully and an order invoice is issued.
- Suspected Fraud: No invoice is issued. d
Can Save Card: Yes to turn on Save Card mode
Addtional Configuration: to install 3D secure mode.
Apply 3D Secure: Use default MySagePay settings
Apply AVS CVC Check: Use default MySagePay settings
Allow Gift Aid: In the UK, customers can claim back part of their tax money by donating through Gift Aid, a tax relief incentive created to benefit charities and Community Amateur Sports Clubs.
With Gift Aid enabled in Sage Pay, customers can now easily perform this task when donating to a charity. They only need to read the agreement, tick in the checkbox, and everything is automatically.
When done, please press Save Configuration, your configuration is ready to use. This direction can be applied with all Subscription product and non-subscription product.
Main Functions
- Check out with SagePay an easy way
Customers can choose any items that they wish and click on Add to Cart button.
At checkout screen, the SagePay extension will display an additional SagePay with SagePay logo and SagePay Credit Card Drop In Payments option which allows customers to easily pay if they want to use SagePay payment gateway.
Then go to checkout instead of Checkout/ Money order.
With SagePay Credit Card Payment:
Payment from Applicable Countries:
- All allowed countries: Enable all allowed countries to make payment.
- Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
Sort Order: The order of the payment method that will be displayed on the checkout page.
Minimum Order in Total: If the order value is less than this figure, the payment method will not be displayed on the checkout page.
Maximum Order in Total: If the order value is bigger than this figure, the payment method will not be displayed on the checkout page.

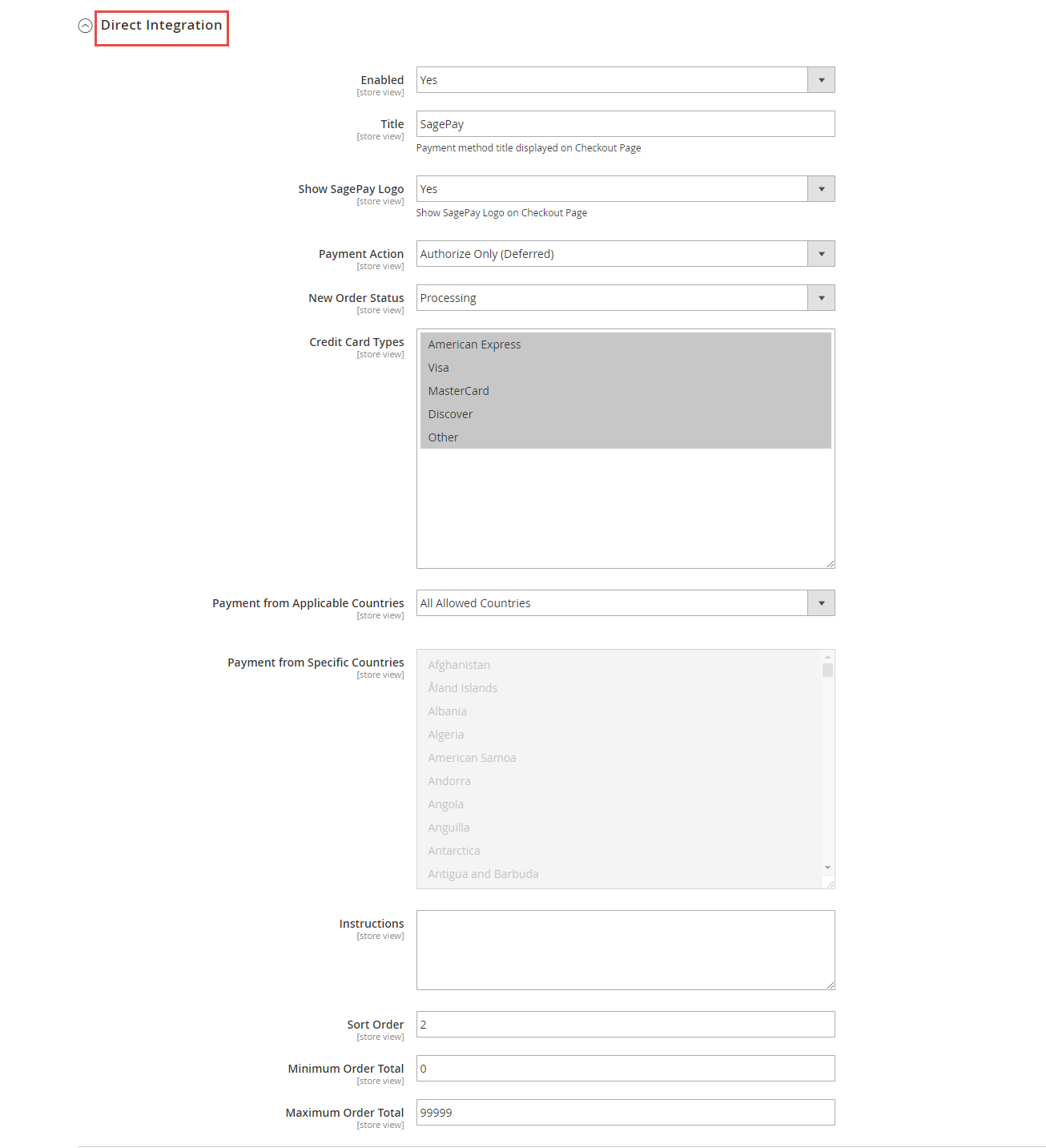

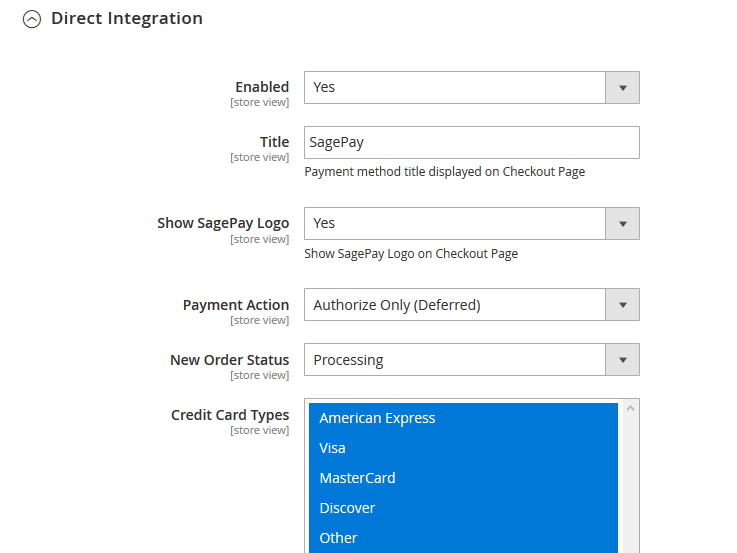

Opayo Direct Integration
Enabled: Enable Opayo Direct Payment.
Title: The title of the payment method displayed on the checkout page.
Payment Action: You can choose between Authorize Only (Deferred) and Authorize and Capture (Payment).
- Authorize Only: check for the card for validity but not charge the account yet until the order is approved and invoiced.
Authorize and Capture (Payment): charge the debit/credit card at the time of the order is placed.
New Order Status: Processing, Suspected Fraud
- Processing: The payment is made successfully and an order invoice is issued.
- Suspected Fraud: No invoice is issued.
Payment from Applicable Countries:
- All allowed countries: Enable all allowed countries to make payment.
- Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
Sort Order: The order of the payment method that will be displayed on the checkout page.
Minimum Order in Total: If the order value is less than this figure, the payment method will not be displayed on the checkout page.
Maximum Order in Total: If the order value is bigger than this figure, the payment method will not be displayed on the checkout page.
Opayo PayPal
Enabled: Enable Opayo PayPal Payment.
Title: The title of the payment method displayed on the checkout page.
Payment Action: You can choose between Authorize Only (Deferred) and Authorize and Capture (Payment).
- Authorize Only: check for the card for validity but not charge the account yet until the order is approved and invoiced.
Authorize and Capture (Payment): charge the debit/credit card at the time of the order is placed.
New Order Status: Processing, Suspected Fraud
- Processing: The payment is made successfully and an order invoice is issued.
- Suspected Fraud: No invoice is issued.
Payment from Applicable Countries:
- All allowed countries: Enable all allowed countries to make payment.
- Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
Sort Order: The order of the payment method that will be displayed on the checkout page.
Minimum Order in Total: If the order value is less than this figure, the payment method will not be displayed on the checkout page.
Maximum Order in Total: If the order value is bigger than this figure, the payment method will not be displayed on the checkout page.
...
Main Functions
Check out with Opayo in an easy way

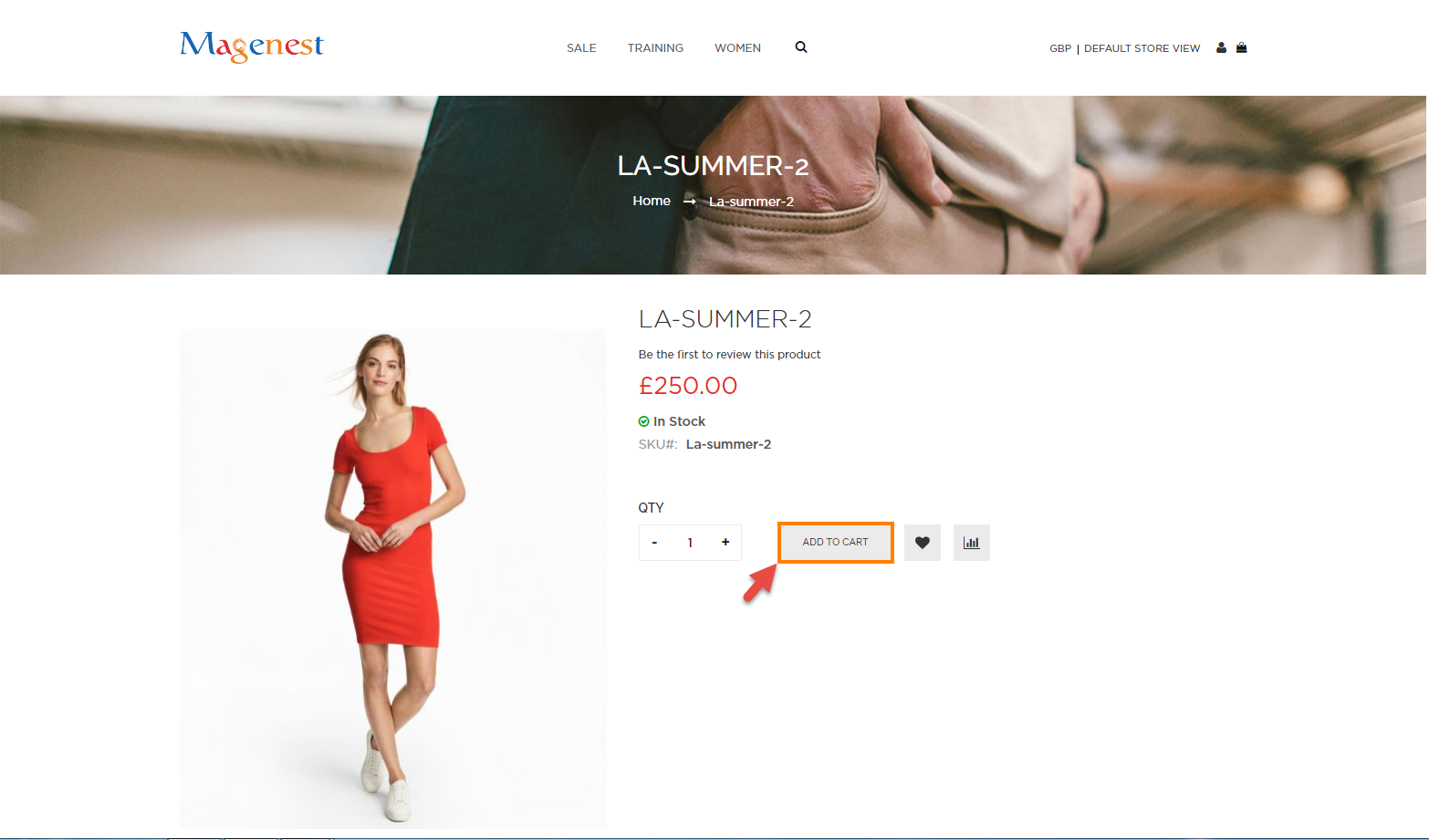

- Customers can add their desired items to the shopping cart by clicking on Add to Cart button.
- Then, the customer can go to the checkout page easily with the Checkout Button in the drop down of the shopping cart icon .
- Next. customer fills in his/her shipping address and selects the payment method.
- At the review and payments section, there are two Opayo payment methods: Opayo Credit Card drop in Payments and Opayo Direct Payment.
With Opayo Credit Card Payment
- Mark the checkbox "My billing and shipping addresses are the same" if the shipping address and the billing address are not different.
- If they are different, fill in the billing address then click "Update".
The customer fills credit card information into the checkout form and clicksCustomer fill information into checkout form and click Place Order button. The system will process with Sage and return successful result.the result with the customer's order number.
With SagePay

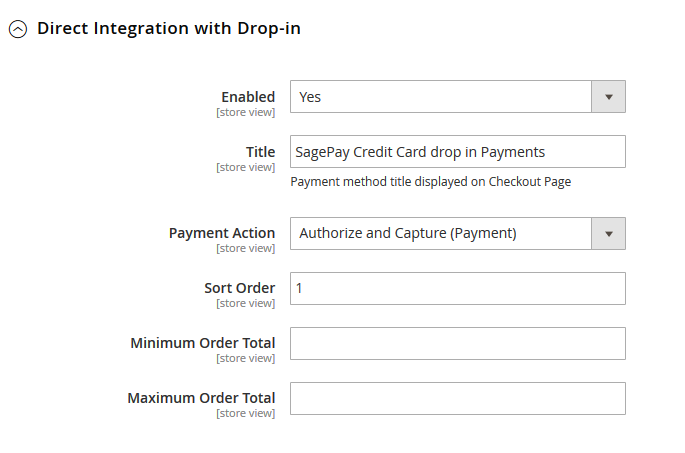

With Opayo Drop In Payments:
Another payment method is SagePay Drop In Payments. It supports wonderful functions for diferent types of card. Customer also apply similarity steps such as SagePay Credit Card Payments methods.
SagePay Drop In is counselling sessions for people seeking help when they need it most. This single-session therapy program is here when you are ready. The counselling team will support you, drawing upon your own strengths and abilities, and provide you with information that can help you create a plan for the change you most want in your life. They can also direct you to other services that are available in our community.
It is the convenient function, Magenest decide to develop Drop- In payments in SagePay extension.
...
- Mark the checkbox "My billing and shipping addresses are the same" if the shipping address and the billing address are not different.
- If they are different, fill in the billing address then click "Update".
In this section, the customer will enter his/her credit card info into a drop-in that is more secure.
Support 3D Secure
When customers use type of card provided with 3D secure mode. SagePay Opayo will turn on automatic mode to check. The operation will redirect to processing page:
Click Submit and the system will process between Sagepay and Magento then result payment result. Save card function: to finalize the payment.
3D Secure version 2 available in Opayo Direct Method.
All of what the customer needs to do is filling the card information then click on Place Order button. Then there will be an authentication flow – where the customer doesn’t even realize that authentication has taken place.
Save card function
We design this function to help customers pay more conveniently. It can support customers usefully in case they forgot card number:
...
. Customers could save time from typing a long range of numbers.
My Saved Card Identifiers
Customers can see the cards that they used by clicking My Account-> My Saved Card Identifiers:
View
View Order
...
When the transaction is completed, customers merchants can review their orders by clicking Sales - > Orders - >View:
Capture
Capture Invoice
If you set the Payment Action as Authorize Only, invoice will not be created. You have to capture invoice in your :While invoice is not created meanings customers select Payment Action in Authorize Only status. Customers can capture invoice in their request. However, the quantity of the products in the new invoice must be smaller than or equal with to the pre-order and invoice only is submitted once.
This extension does not support multiple invoices.
View Invoice
You can manage invoices by going to Sales > Invoices
Click on View button to see the details : By clicking invoice and pressing View, customer can see the content of invoice that you want:
And choose Credit Memo tab and clicking Refund in need
Partial or total refund:
.
You can change the column content by clicking on the Columns icon on the top right. Next to it is the Export icon that allows you to export the invoices list into CSV and XML files.
On the right side, there are three important buttons: Send email, Credit memo, and Print.
- Send email: Allow you to send the current invoice to customer.
- Credit memo: Allow you to make the refund.
- Print: Print out the current invoice.
Partial or total refund
Moreover, Sage is a maverlous tool. Customer can refund partially or totally by clicking Credit Memo - > Refund.
About partial refund, it applies for many frequencies and up to out of products.
This plugin does not support multiple invoices.
Transaction
Transaction:
To view transaction transactions in SagaPayOpayo, customer log in Magento backend and choose SagePay Payment Gateway item-> Transactions:
Opayo Payment Gateway > Transactions
...
Update
- When a new update is available, we will provide you with a new package containing our updated extension.
- In case you update your module, you will have to delete the old module directory and repeat the installing steps above.
- Flush the config cache then your store and newly installed module should be working as expected.
...
Support
- We will reply to support requests within 2 business days.
- We will offer lifetime free update and 6 months free support for all of our paid products. Support includes answering questions related to our products, bug/error fixing to make sure our products fit well in your site exactly like our demo.
- Support DOES NOT include other services such as customizing our products, installation and uninstallation service.
...
Once again, thank you for purchasing our extension. If you have any questions relating to this extension, please do not hesitate to contact us for support.
