Firstly, you have to configure the SagePay Payment Extension at Magento back end by clicking on Stores > Configuration > Sales > Payment Methods > SagePay Payment Gateway.

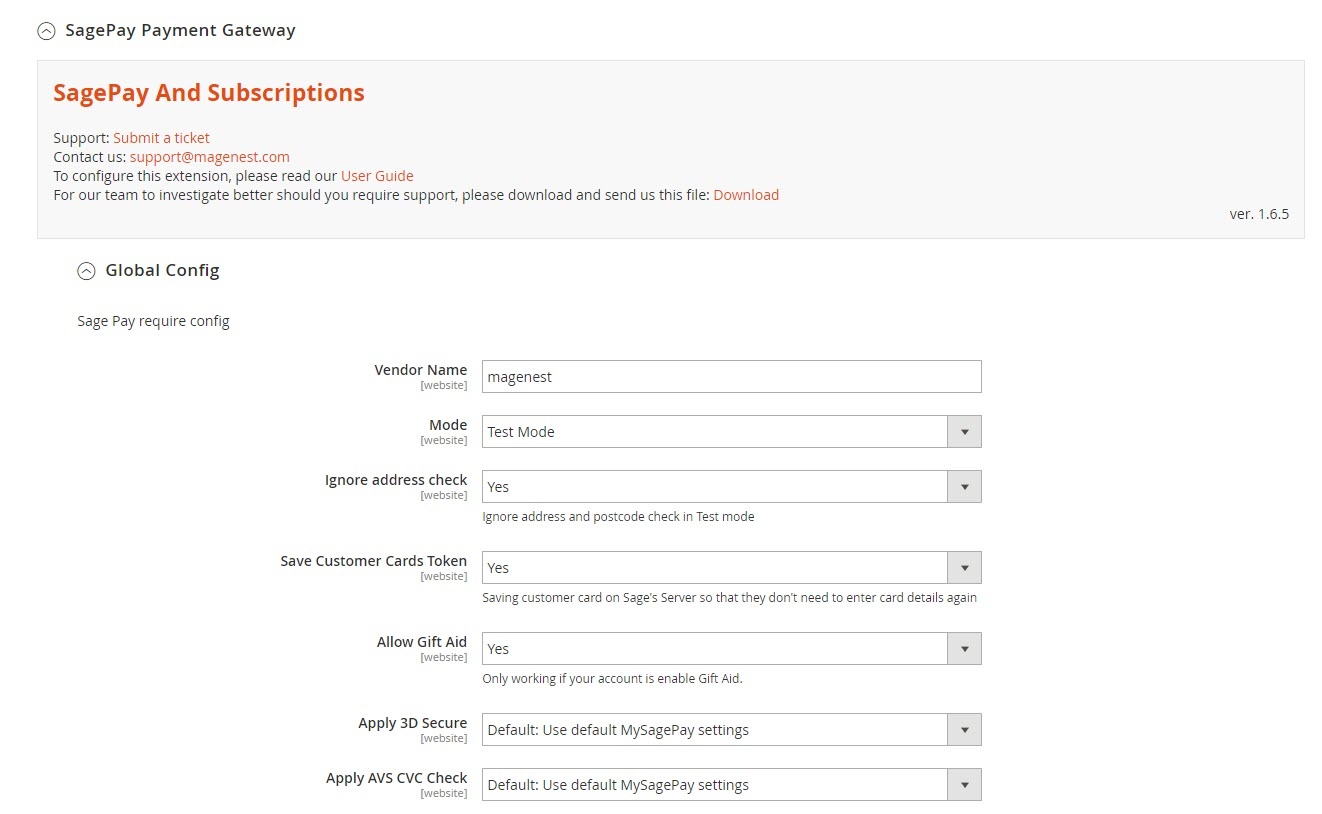

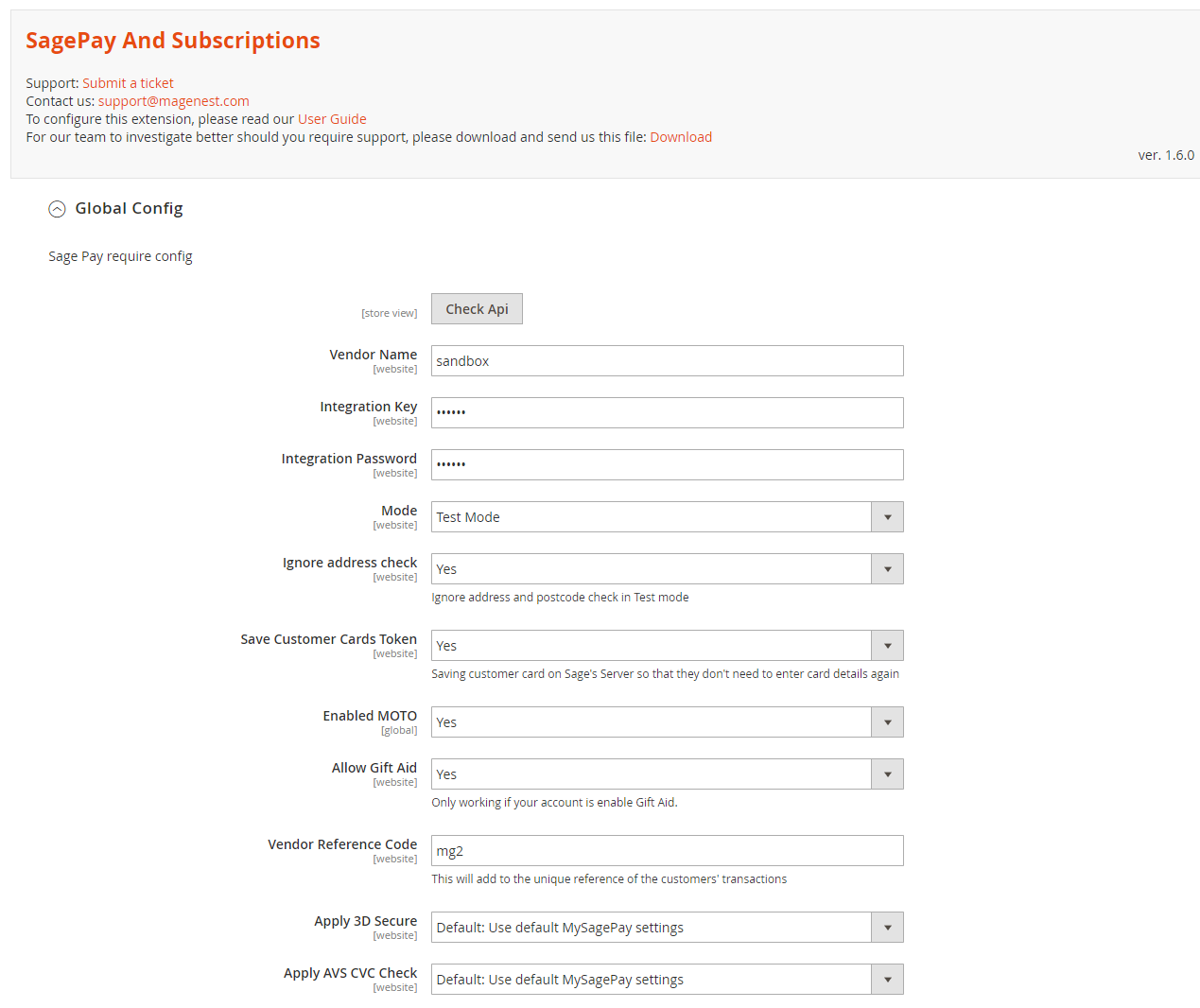

In Global Config:
Fill in Vendor Name, Integration Key, Integration Password Password obtained from your SagePay credentials
In our example, we use account and API of SagePay to implement transaction in test mode. You can obtain this by going to https://test.sagepay.com/mysagepay/transactions.msp
Turn on Test Mode (Choose Yes) when you use test credentials. Turn off the Test Mode (Choose No) when Choose the Live Mode when you go live.
You can also turn on Ignore address check to skip the address and postcode check in test mode.
Then Click on Check API button to check whether the API is working or not.
Save Customer Card Token: Allow customers to save credit card token for future purchase. Enable MOTO: Allow you to make payments in admin panel for customers buying through email or telephone.
Allow Gift Aid: Allow customers to donate to charity. Note that this function only works if your Sage account is enabled for Gift Aid.
Vendor Reference Code: This will add to the unique reference of the customers' transactions. Doing this will help you recognize the source of the transactions in case you have multiple stores.
Apply 3D Secure with 4 options: Default, Force, Disable, Force & Ingore
- Default: Use Default My SagePay Settings
- Force: Apply authentication even if the 3D Secure is turned off
- Disable: Disable authentication and rules
- Force & Ignore: Apply authentication but ignore rules
Apply AVS, CVC Check with 4 options: Default; Force; Disable; Force & Ingore
- Default: Use Default My SagePay Settings
- Force: Apply authentication even if the AVS, CVC Check is turned off
- Disable: Disable authentication and rules
- Force & Ignore: Apply authentication but ignore rules

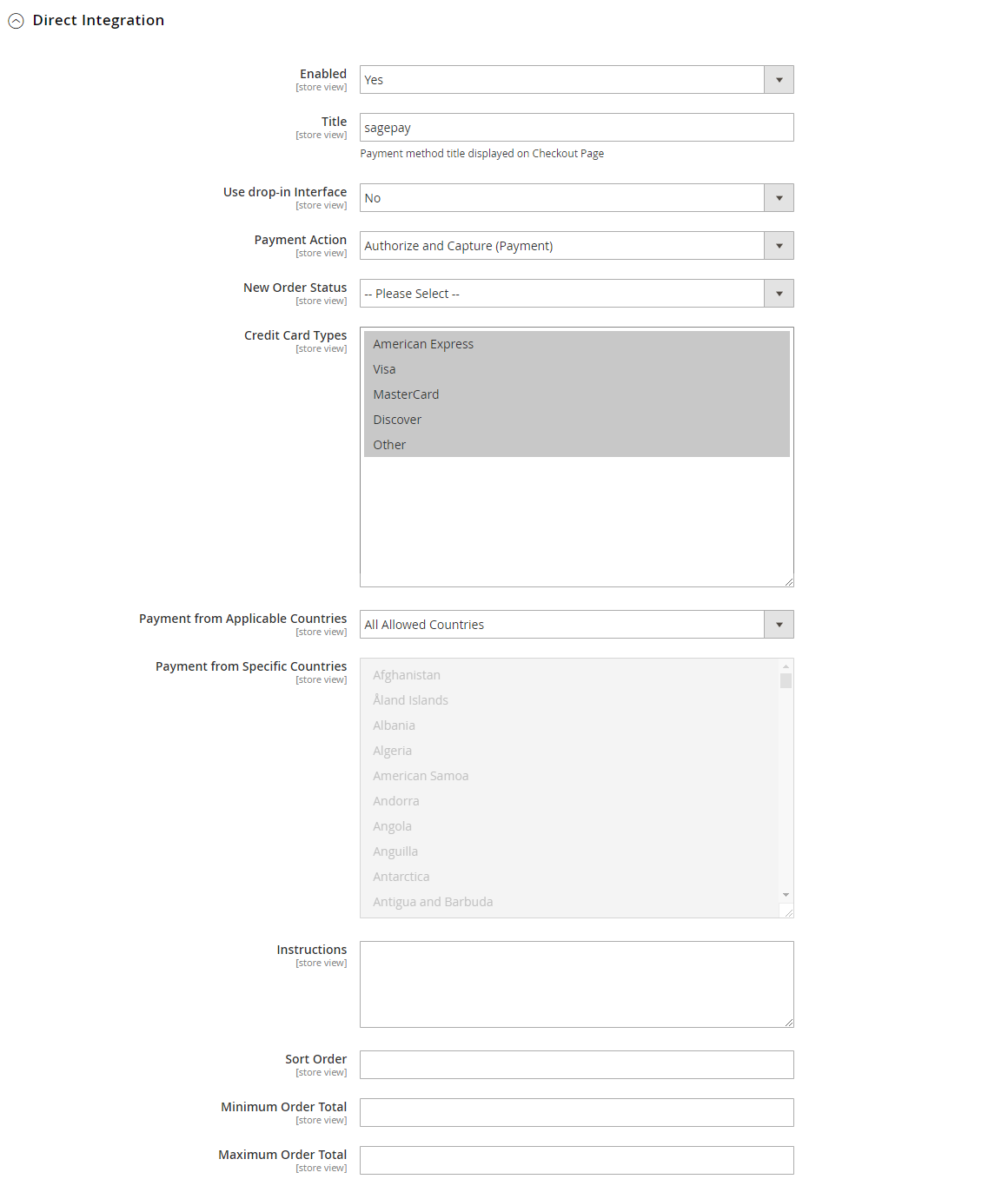

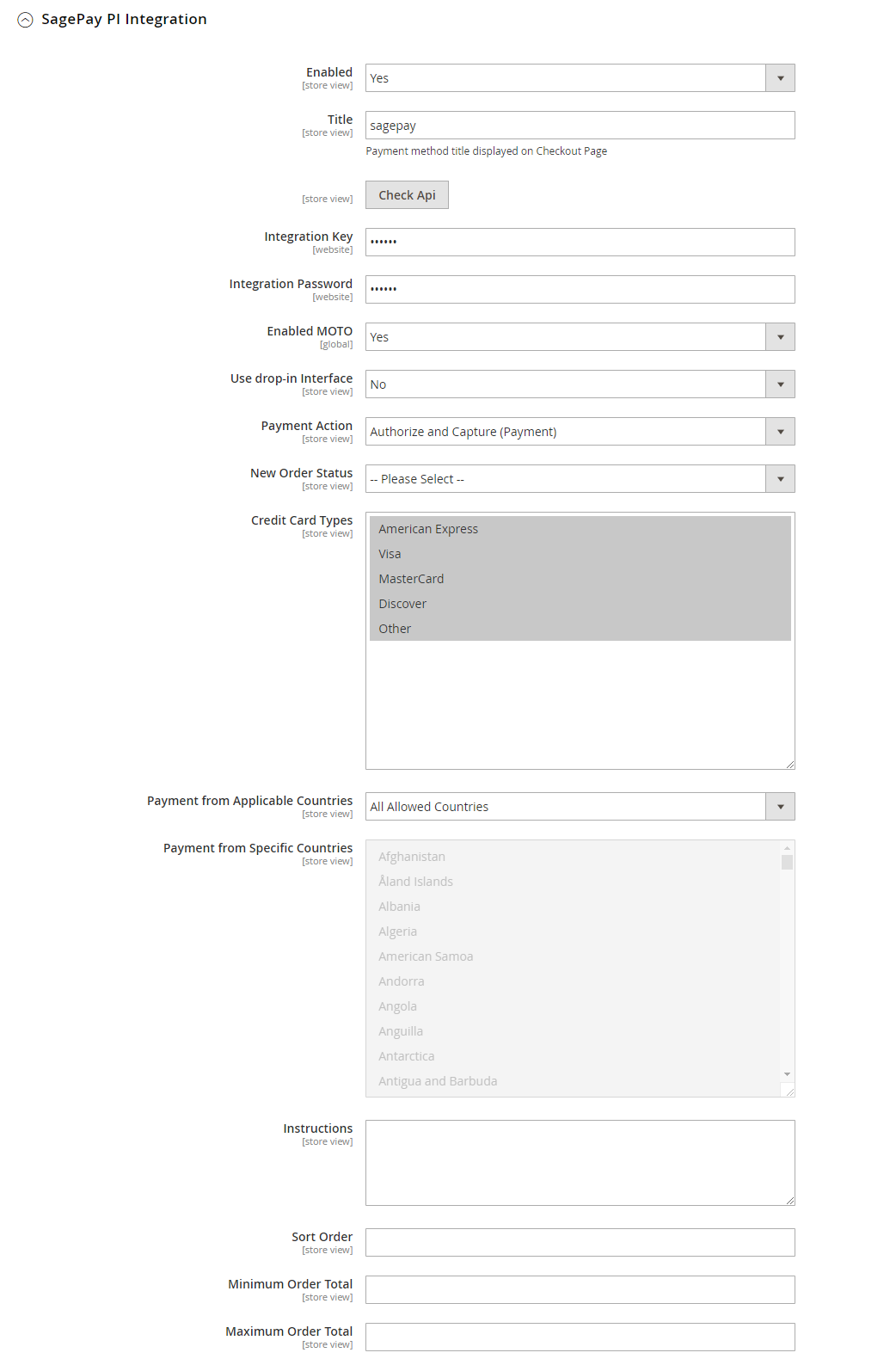

In Direct Integration Sage Pay IP Integration
Enabled: Choose Yes to enable direct checkout for SagePay Payment
Title: The title of the payment method displayed on the checkout page.
Integration Key & Integration Password: Obtained from you Sage Pay account
Click on Check API button to check whether the API is working or not.
Enable MOTO: Allow you to make payments in admin panel for customers buying through email or telephone. Payment Action: You can choose between Authorize Only (Deferred) and Authorize and Capture (Payment)- Authorize Only: check for the card for validity but not charge the account yet until the order is approved and invoiced.
- Authorize and Capture (Payment): charge the debit/credit card at the time of the order is placed.
New Order Status: Processing, Suspected Fraud
- Processing: The payment is made successfully and an order invoice is issued.
- Suspected Fraud: No invoice is issued.
Credit Card Types: You can choose which credit card types you want by choosing one or more items.
Payment from Applicable Countries:
- All allowed countries: Enable all allowed countries to make payment.
- Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
In addition, you can add/edit the Instructions to instruct customers how to do payment.
Sort Order: The order of the payment method that will be displayed on the checkout page.
Minimum Order in Total: If the order value is less than this figure, the payment method will not be displayed on the checkout page.
Maximum Order in Total: If the order value is bigger than this figure, the payment method will not be displayed on the checkout page.
When done, press Save Configuration. This direction can be applied with both Subscription product and non-subscription product.
Integrate
Integrate with Paypal
On the left menu column, choose Pay methods then add your Paypal account on the right in the Use Paypal Express Checkout with Sage Pay
Please read these documents from SagePay for more details:
https://www.sagepay.co.uk/support/12/36/adding-paypal-to-your-test-account
https://www.sagepay.co.uk/support/12/36/enabling-sage-pay-on-your-paypal-test-account
https://www.sagepay.co.uk/support/16/36/linking-paypal-to-your-live-account

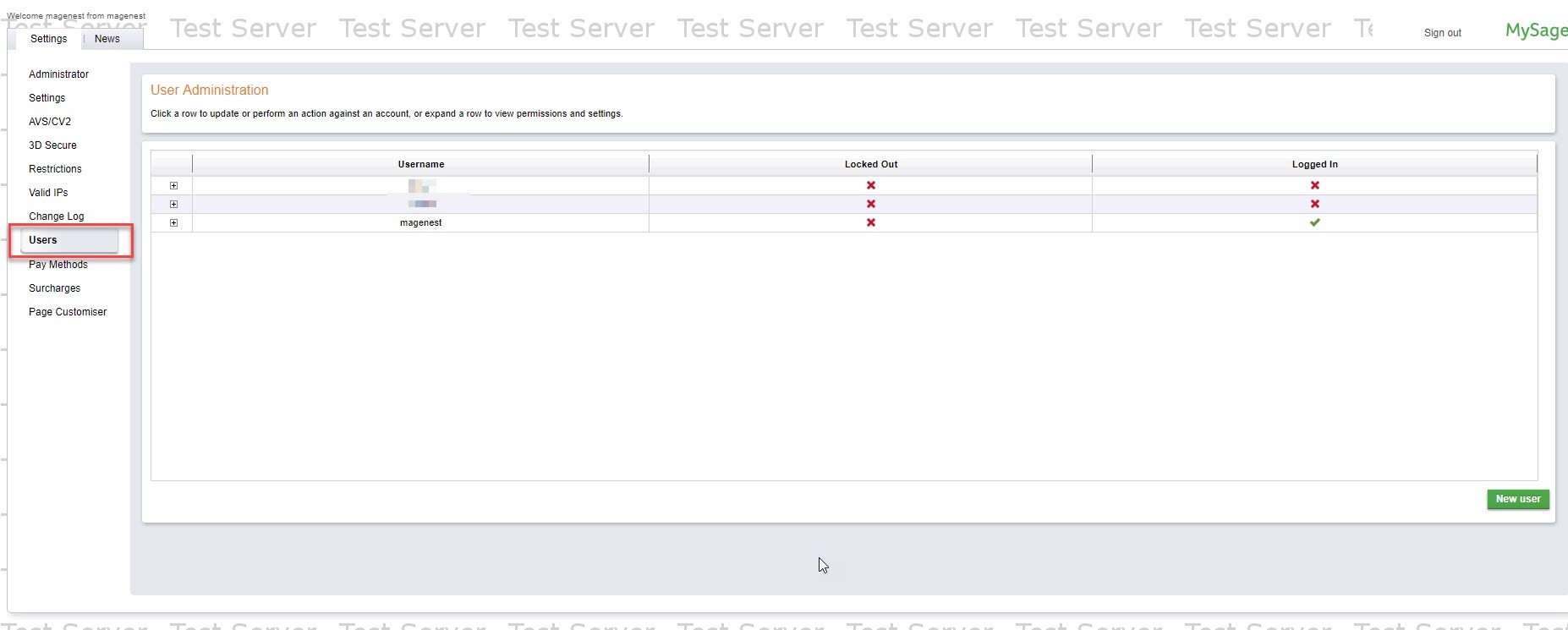

Create User in Sage Pay
In Sage Pay page, choose Users in the Settings, then create an user by clicking on the New user button. You will use this user account to link Paypal with your Sage Pay

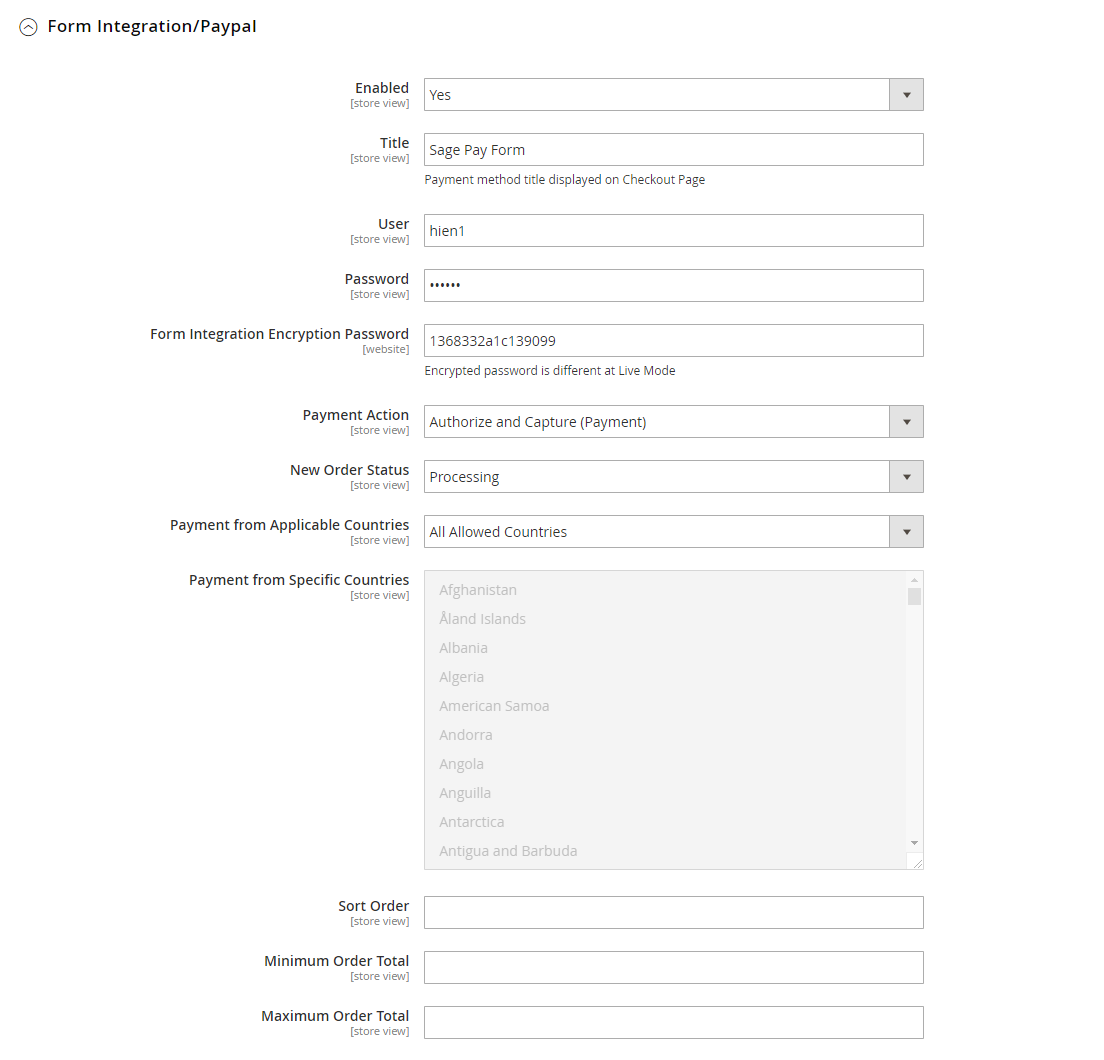

In Form Integration/Paypal

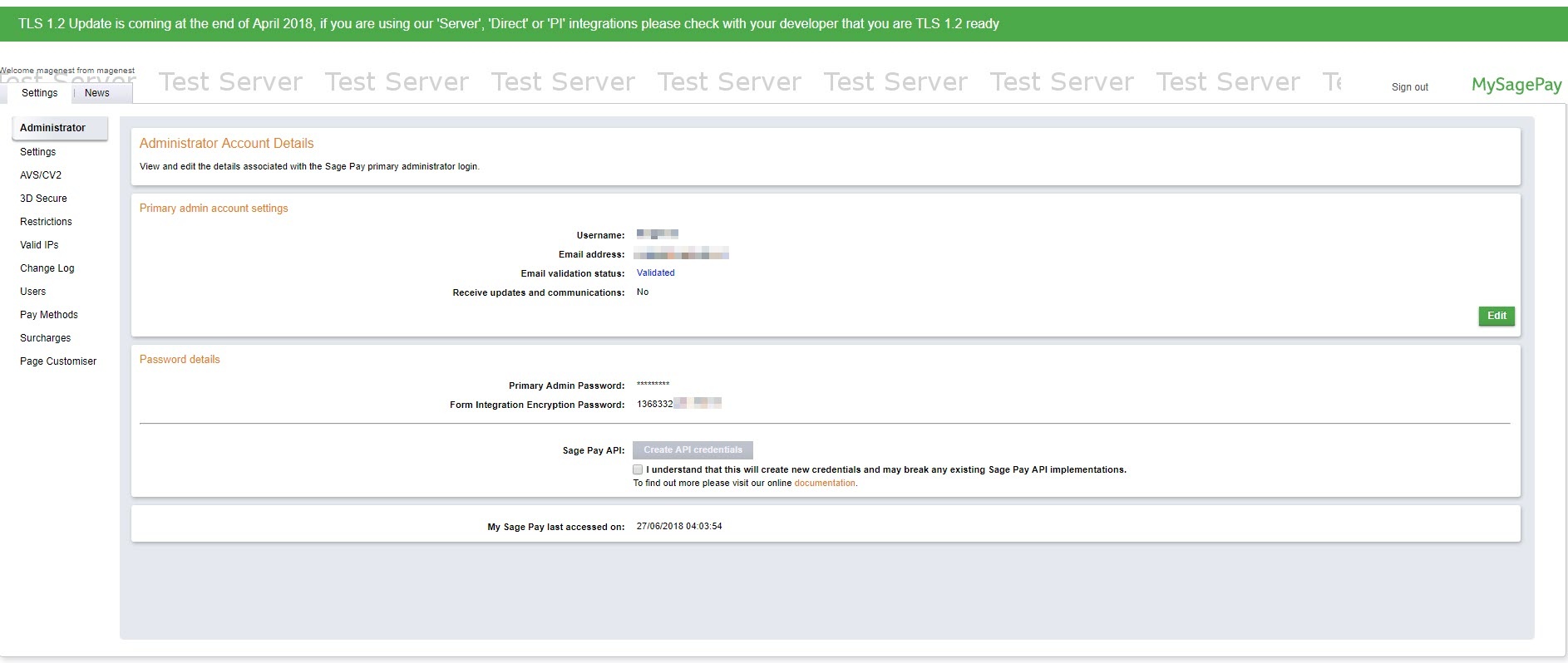

Enabled: Enable Sage Pay Form with Paypal option Title: The title of the payment method displayed on the checkout page User and Password: Obtained from user created in Sage Pay Form Integration Encryption Password: Obtained from in SagePay. Go to Settings > Administrators > Password Details Payment Action: You can choose between Authorize Only (Deferred) and Authorize and Capture (Payment)- Authorize Only: check for the card for validity but not charge the account yet until the order is approved and invoiced.
- Authorize and Capture (Payment): charge the debit/credit card at the time of the order is placed.
New Order Status: Processing, Suspected Fraud
- Processing: The payment is made successfully and an order invoice is issued.
- Suspected Fraud: No invoice is issued.
Payment from Applicable Countries:
- All allowed countries: Enable all allowed countries to make payment.
- Specific Countries: Restrict some countries by unselecting them from the Payment from Specific Countries.
Sort Order: The order of the payment method that will be displayed on the checkout page.
Minimum Order in Total: If the order value is less than this figure, the payment method will not be displayed on the checkout page.
Maximum Order in Total: If the order value is bigger than this figure, the payment method will not be displayed on the checkout page.
For Subscription Products
...
Customer fill credit card information into the checkout form and click Place Order button. The system will process with Sage and return the result with customer's order number.
With SagePay with Drop-In PaymentsInterface :
- Mark the checkbox "My billing and shipping addresses are the same" if the shipping address and the billing address are not different.
- If they are different, fill in the billing address then click "Update".
In this section, customer will enter his/her credit card info into a drop-in that is more secured.

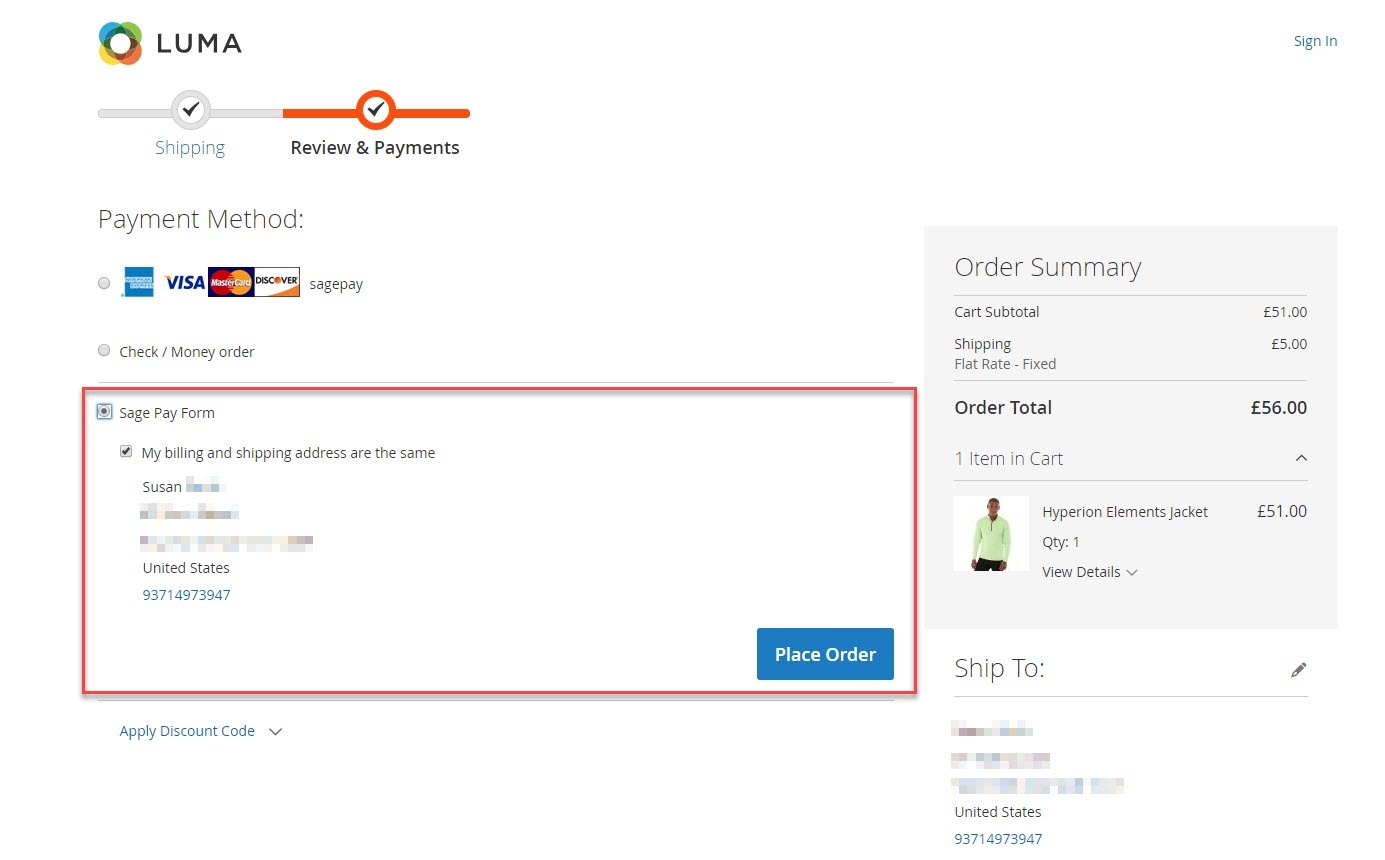

Sage Pay Form/Paypal

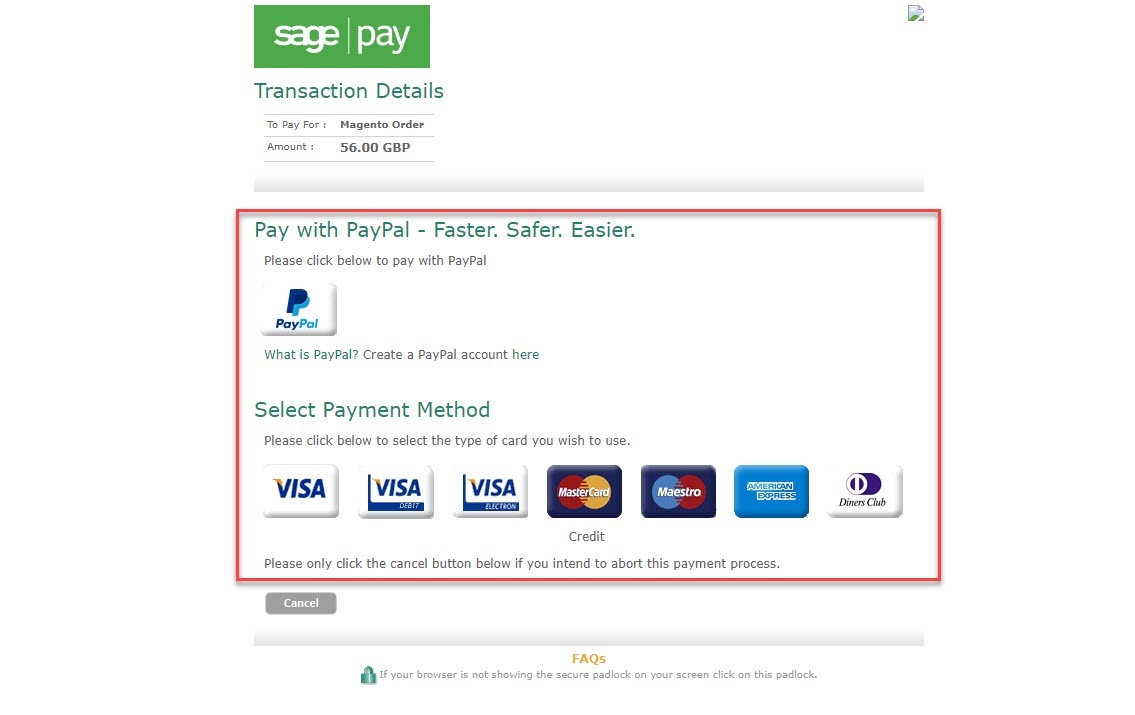

With Sage Pay Form, all transactions will be handled by Sage Pay. When customer Place order, it will redirect to Sage Pay Form
Customers can pay with Paypal or Credit Cards up to their choice.
Support 3D Secure:
When customers use type of card provided with 3D secure mode. SagePay will turn on automatic mode to check. The operation will redirect to processing page.
...
