Thank you for purchasing our extension. If you have any questions that are beyond the scope of this document, do not hesitate to leave us an email via our email address below.
Created: 01/02/2016 | By: Magenest | Support Portal: http://servicedesk.izysync.com/servicedesk/customer/portal/22
Enjoy a seamless payment process and advanced security with Magento 2 Stripe Payment.
Extension's page: Stripe Payment Gateway
A lot of features are included in the extension that you can tweak to make it best suit your business, including:
Choose between Authorize Only or Authorize and Capture.
Various credit card types
Support CVC/AVS Verification
Easily partial capture invoice.
Conveniently partial or total refund
Support Giropay, Alipay, SOFORT, Bancontact, EPS, etc.
The primary aim of the extension is to deliver the most fluent and effortless payment experience to the customers:
Easily checkout using credit card.
Your store should be running on Magento 2 version 2.0.x; 2.1.x; 2.2.x
You need to have a stripe account to use our extension. If you have not any stripe accounts, you need to create a new account by clicking on the following link: https://dashboard.stripe.com/register
Then, choose Create your Stripe account to set up a new account

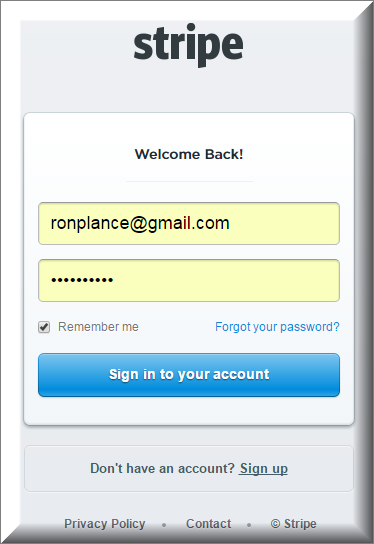

Once you have the Stripe account, sign into your account.

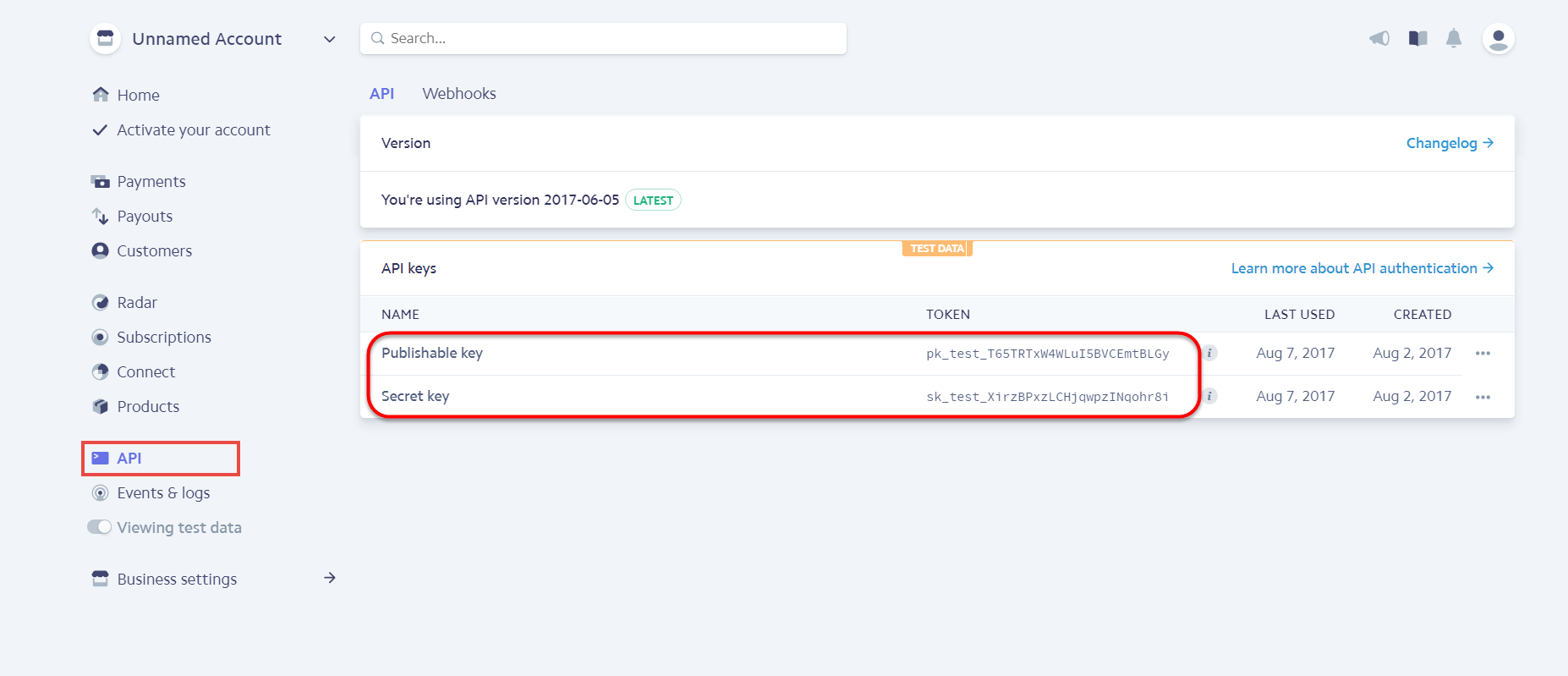

After that, click on API at the left corner > API Keys to take API Keys.
At back end, you need to configure some fields to connect between your Magento site and the Stripe account.

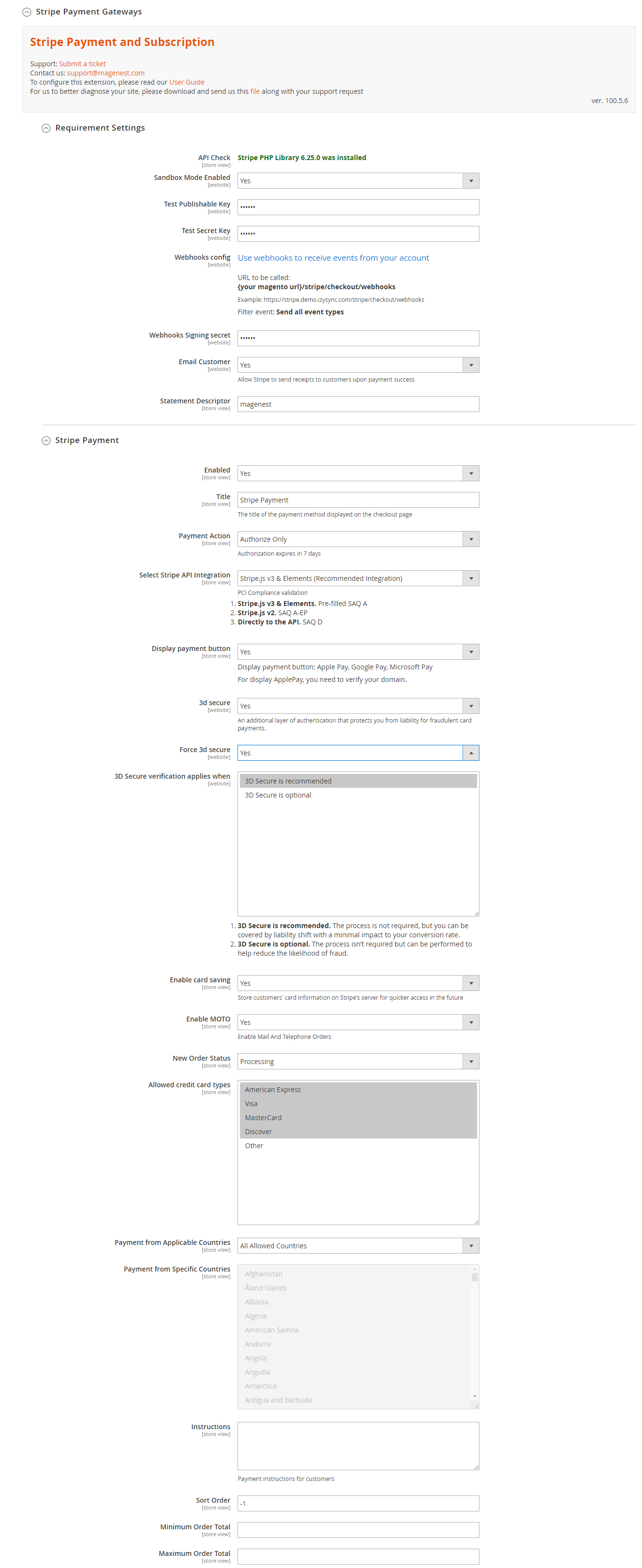

Firstly, click on Stripe Payments > Settings > Stripe Payment Gateway
If you use the Test Key:
If you use the Live Key:
Title: the title of the payment method displayed on the Checkout Page.
You can set the Payment Action to be Authorize and Capture or Authorize Only
Select Stripe API Integration: There are 3 Stripe API to choose
It is highly recommended to use Stripe.js v3 & Elements for advanced security features.
Note: In order to enable 3D secure, you must use Stripe.js v3 & Elements or Stripe.js v2.
3D Secure: Choose Yes to enable 3D secure for Stripe payments
The behavior and application of 3D secure varies across card types and networks. Some card issuers does not support this verification method, in order to deal with that, you can choose 1 of 2 options for 3D secure application:
3D secure is recommended: The process is not required, but you can be covered by liability shift.
3D secure is optional: The process isn’t required but can be performed to help reduce the likelihood of fraud.
Enable card saving: Allow logged in customers to save credit card information.
Enable MOTO: Allow admin to make payment from backend.
You can set the New Order Status: Processing, Suspected Fraud
Email Customer: Allow Stripe to send receipts to customers once the payment is successful.
Allowed Credit Card Types: You can choose which credit card types are accepted on your site by choosing one or more items.
Payment from Applicable Countries:
In addition, you can add/edit the Instructions to instruct customers how to do payment.
Sort Order: The order of the payment method that will be displayed on the checkout page.

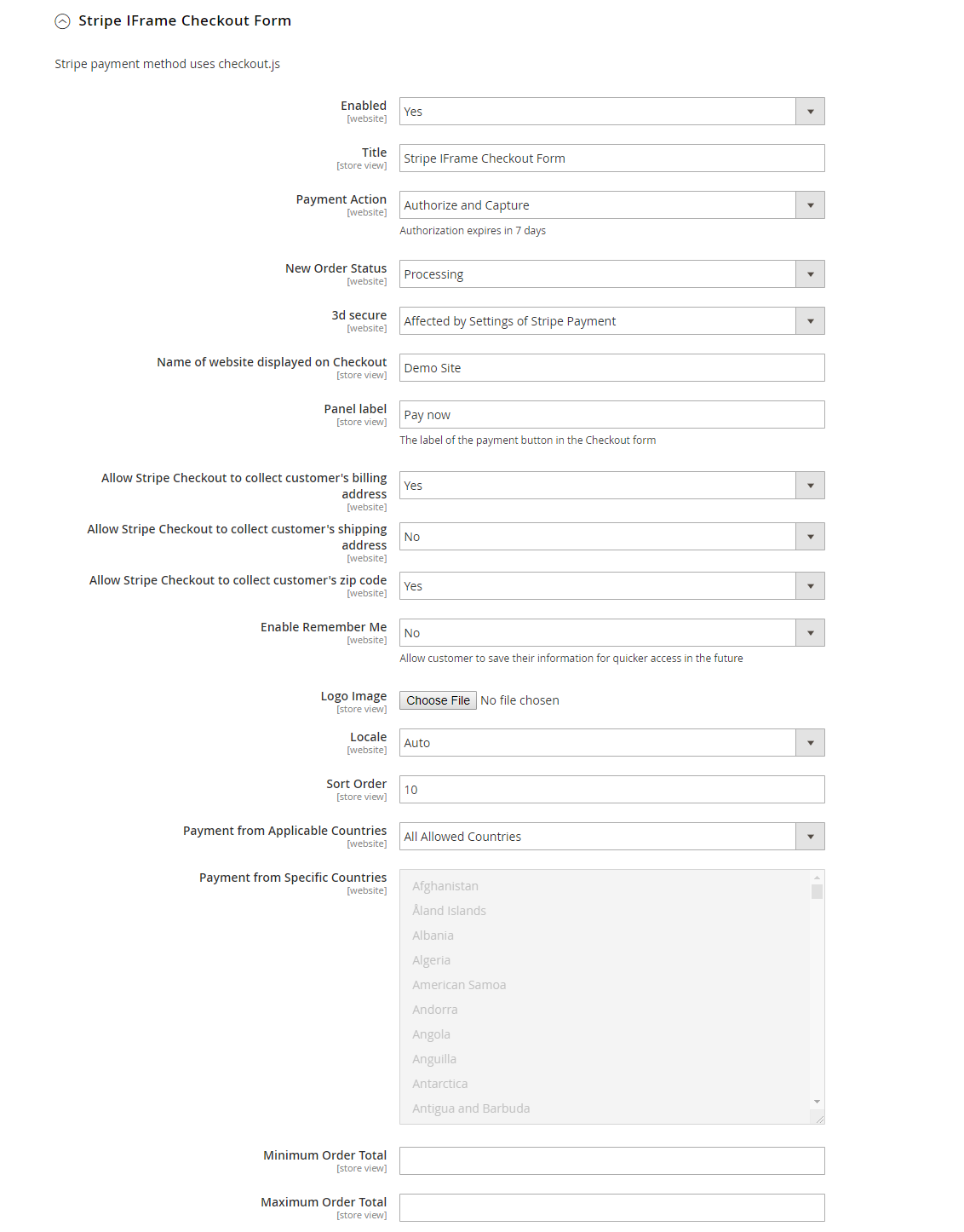

Stripe IFrame Checkout Form
Enabled: Choose Yes to enable the IFrame checkout form method
Title: Edit the title for the payment method. Here we recommend you to set it as "Stripe Checkout IFrame"
You can set the Payment Action to be Authorize and Capture or Authorize Only
You can set the New Order Status: Processing, Suspected Fraud
3D secure: The 3D secure settings for this method will follow the 3D secure settings in Stripe Payment Settings. Note that you don't have to enable Stripe Payment Settings to make it work, just change the 3D secure settings then Save Config.
Name of website displayed on Checkout: Your store name.
Panel Label: The label of the payment button in the Checkout form
You can turn on Allow Stripe Checkout to collect customer's billing address, shipping address and zip code
Remember Me: If you set this option to Yes, Stripe will save the customer's information for later purchase in every website that use Stripe Payment Gateway.
Logo image:
Sort Order: The order of the payment method that will be displayed on the checkout page.
Payment from Applicable Countries:

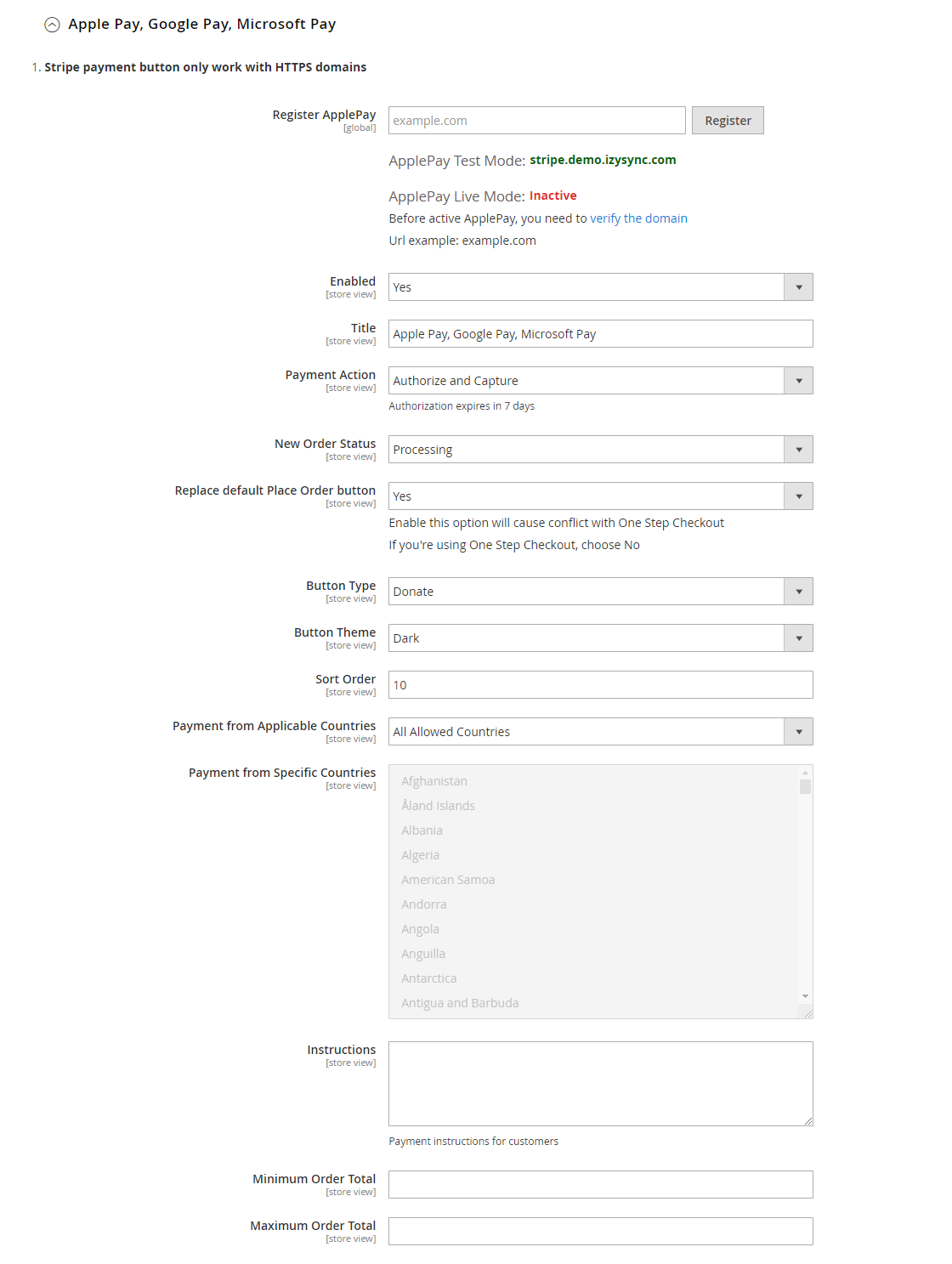

Enable this method: Choose Yes to enable Apple Pay, Google Pay, Microsoft Pay
Title: Fill in the title for the payment method
You can set the Payment Action to be Authorize and Capture or Authorize Only
You can set the New Order Status: Processing, Suspected Fraud
Replace default Place order button: Enable to replace the default Place Order button with Apple Pay, Google Pay or Microsoft Pay Place Order button. Note that this option can cause conflict with One step Checkout extension, so if currently you are using One Step Checkout, turn this option off.
To use Google Pay (for PC), customers have to add their credit card to the browser.
You can enable Alipay Payment easily just by choosing Yes in Enabled then Save Config.
Note that the currency of the payment must be the default currency of your country. It could be AUD, CAD, EUR, HKD, NZD, SGD, or USD.
In Denmark, Norway, Sweden, and Switzerland, the currency for the payment will be exchanged to EUR.

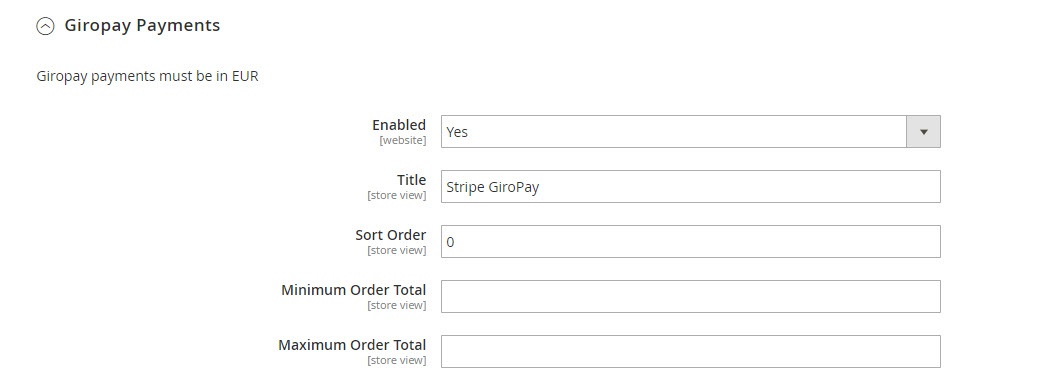

The Giropay currency is EUR.
You can enable the payment method by choosing Yes in Enabled then Save Config.

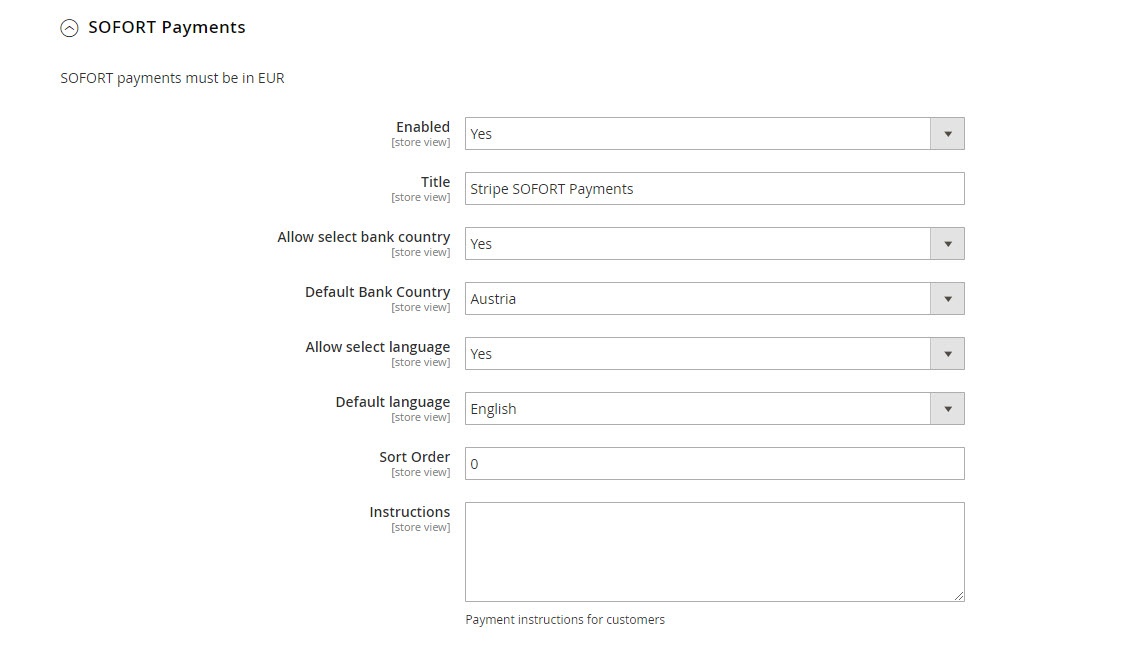

The SOFORT currency is EUR.
You can enable the payment method by choosing Yes in Enabled.
Title: Fill in the title for the payment method
Allow select bank country: Enable customers to choose their country to make payments.
Default Bank Country: Set the default bank country to be displayed on checkout: Austria, Belgium, Germany, Italy, Netherlands, Spain
Allow select language: Enable customers to choose the preferred language
Default language: Set the default language for the payment method: English, German, Spanish, Italian, French, Dutch, Polish.

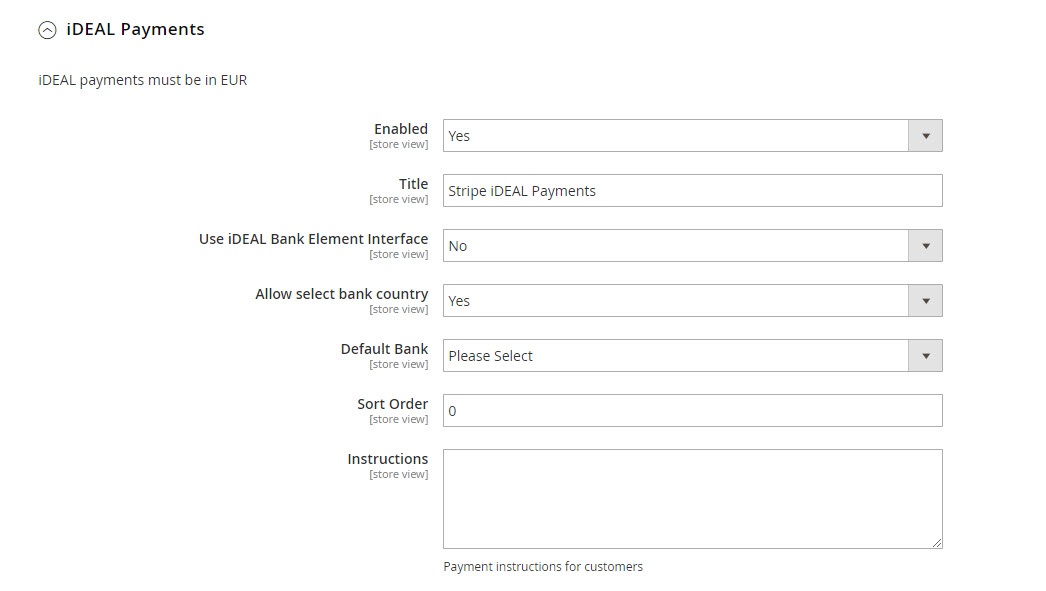

The iDEAL currency is EUR.
You can enable the payment method by choosing Yes in Enabled.
Title: Fill in the title for the payment method

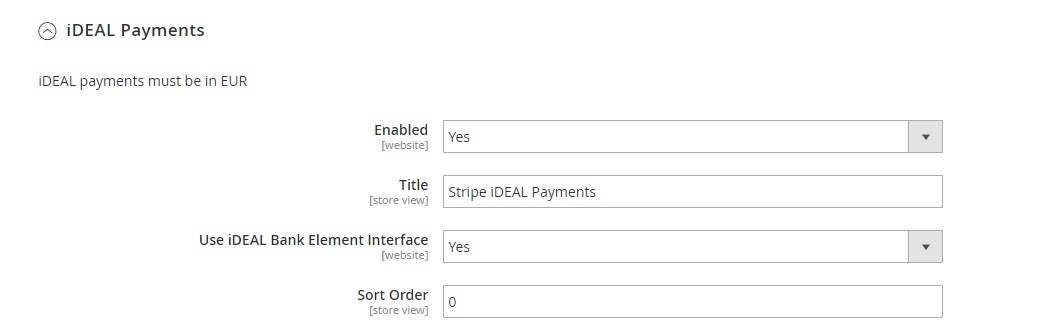

Use iDEAL Bank Element Interface: If you choose Yes, the payment method will be displayed with iDEAL interface.
If you don't use the iDEAL interface, you can choose No and change the settings as follows:
Allow select bank country: Enable customers to choose their country to make payments.
Default Bank: If you don't want to allow customers to choose their bank. You can set a default bank.

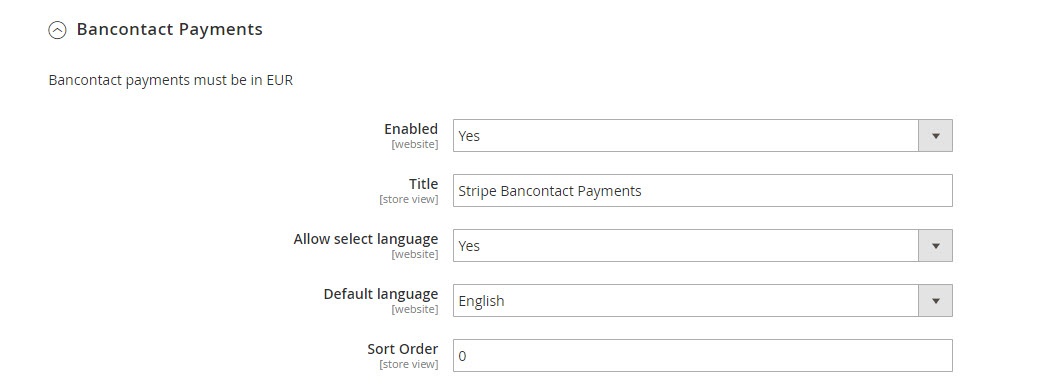

The Bancontact currency is EUR.
You can enable the payment method by choosing Yes in Enabled.
Title: Fill in the title for the payment method
Allow select language: Enable customers to choose the preferred language
Default language: Set the default language for the payment method: English, German, French, Dutch.

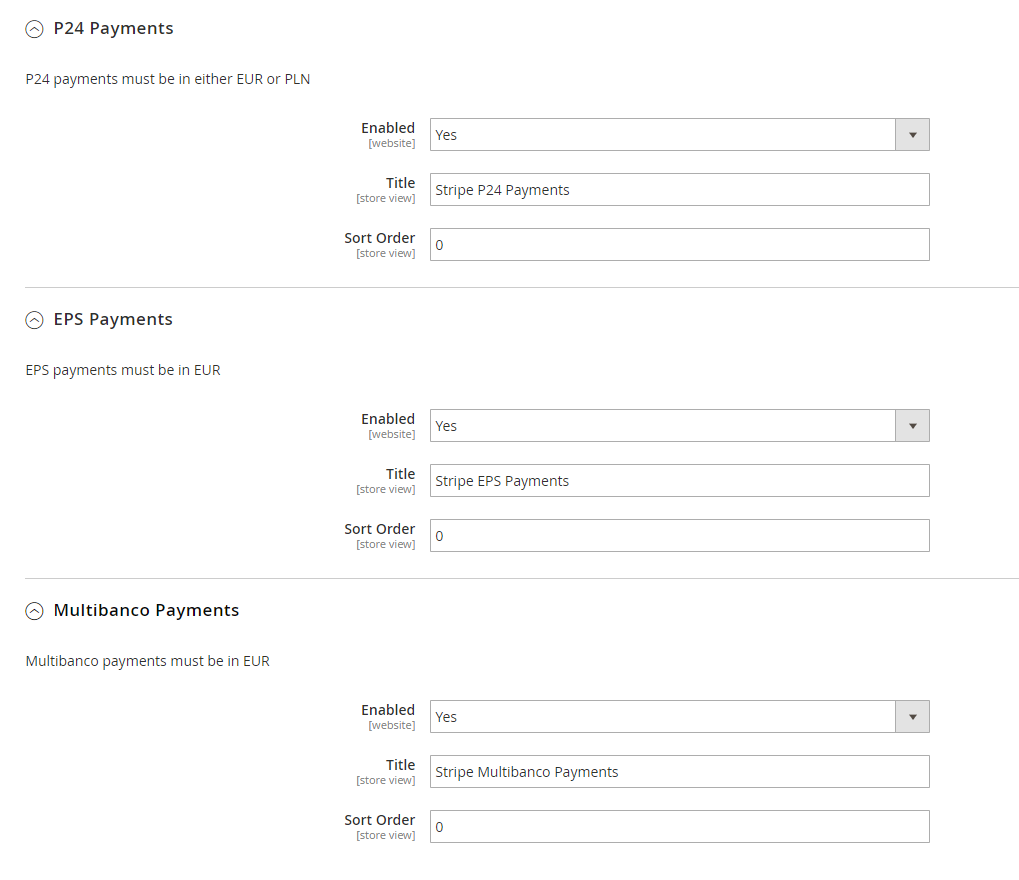

Following other payment method, in order to enable P24 Payments, EPS Payments, or Multibanco Payments, you have to choose Yes in Enabled.
When done, please press Save Configuration then go to Cache Management to flush cache.

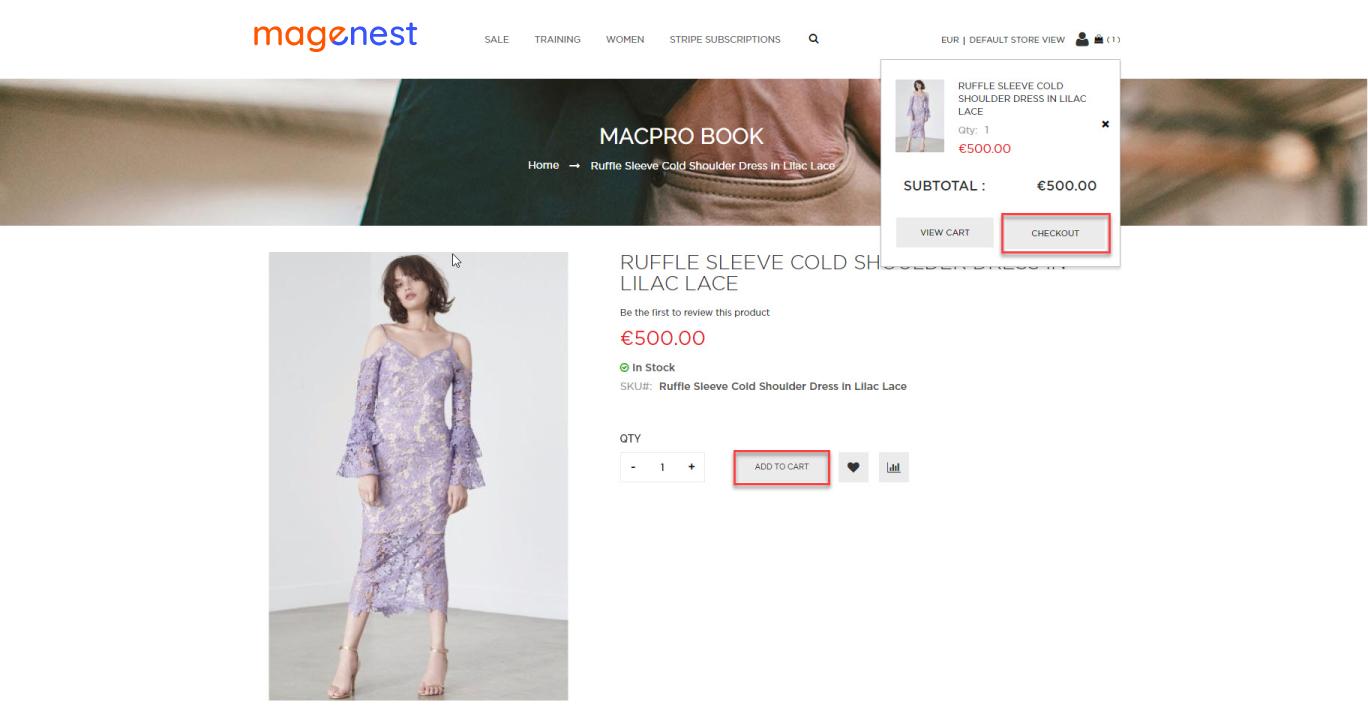

At front end, customer can add the items into shopping cart by clicking the Add to Cart button.

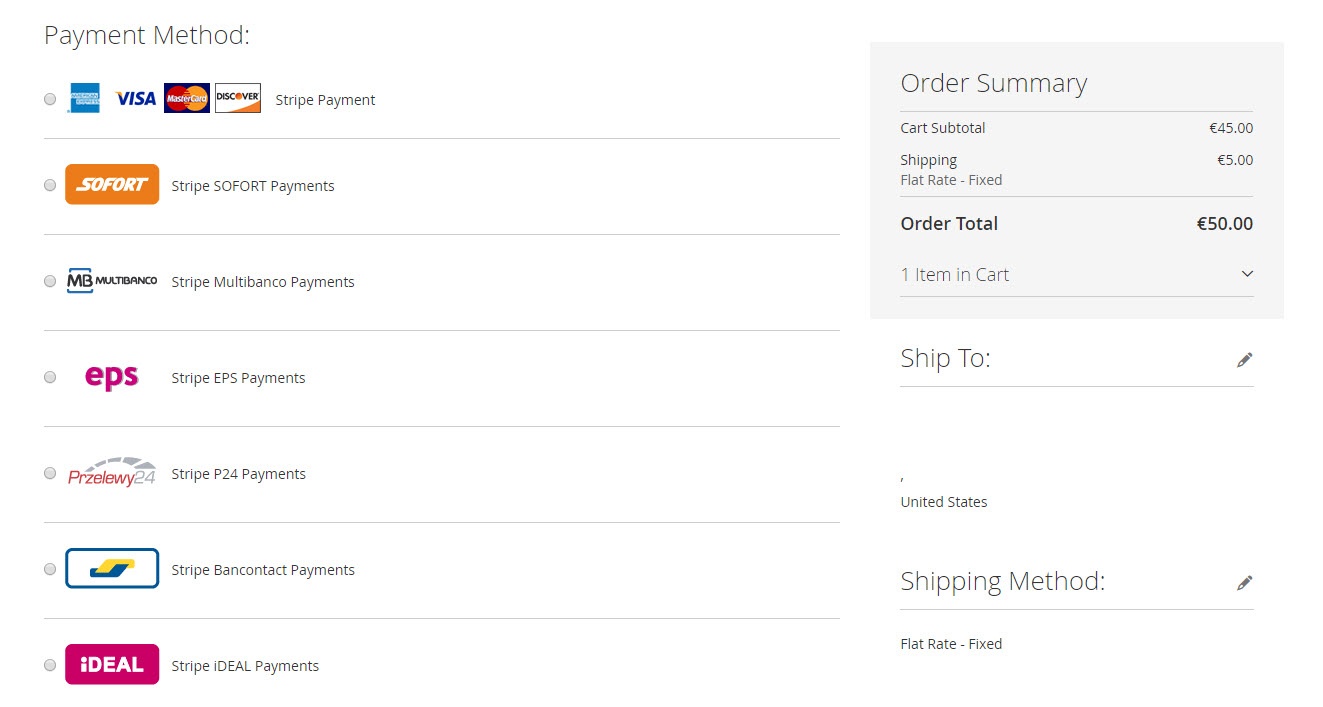

Then, go to the checkout page. Customer fills in his/her shipping address and selects the payment method.
Checkout with Apple Pay/Google Pay
To use Google Pay (for PC), customers have to add their credit card to the browser.
In case your browser can't pay button to transfer, follow this guide to display Stripe Payment request button.
Mark the checkbox "My billing and shipping addresses are the same" if the shipping address and the billing address are not different.
If they are different, fill in the billing address then click "Update".
After filling in all the neccessary information, click Pay now to place the order.
Stripe Apple Pay Checkout
After successful payment, at Payments tab of Stripe, the order will be updated corresponding with Magento.
Checkout with Stripe Giro Pay
After filling in all the neccessary information, click Continue to place the order.
Then, it redirects to Stripe Giro Pay Payment Page and buyer can finalize his payment there.

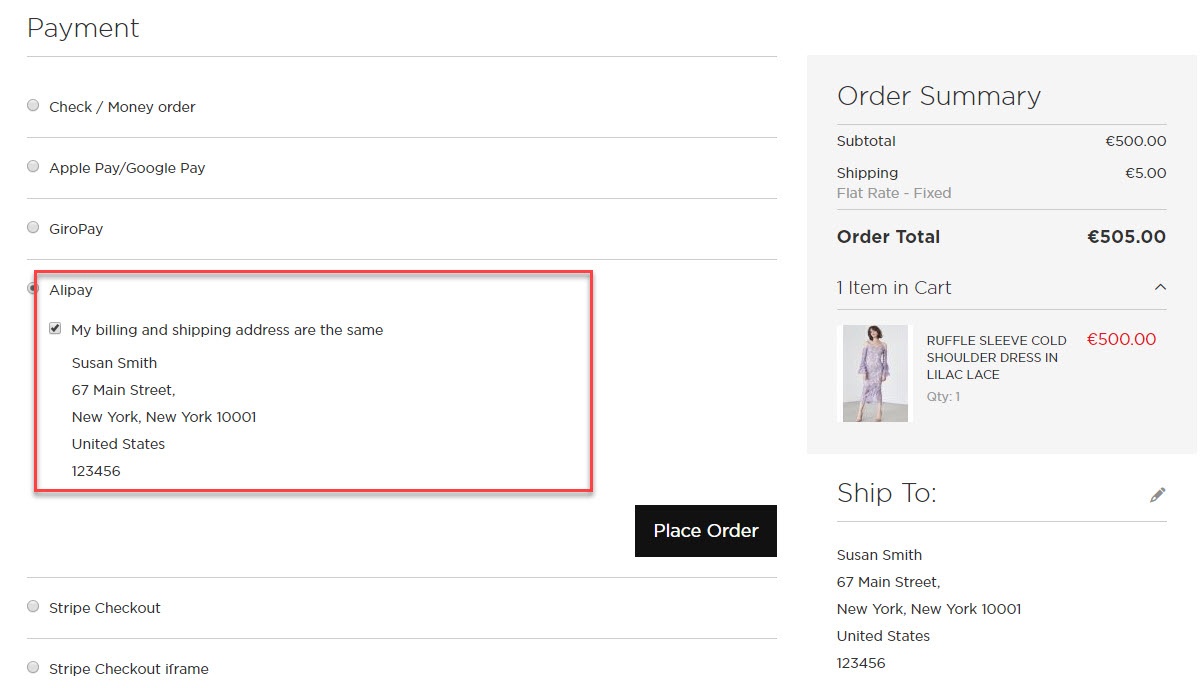

Checkout with Stripe Alipay
After filling in all the neccessary information, click Place Order
Then, it redirects to Stripe Alipay Payment Page and buyer can finalize his payment there.

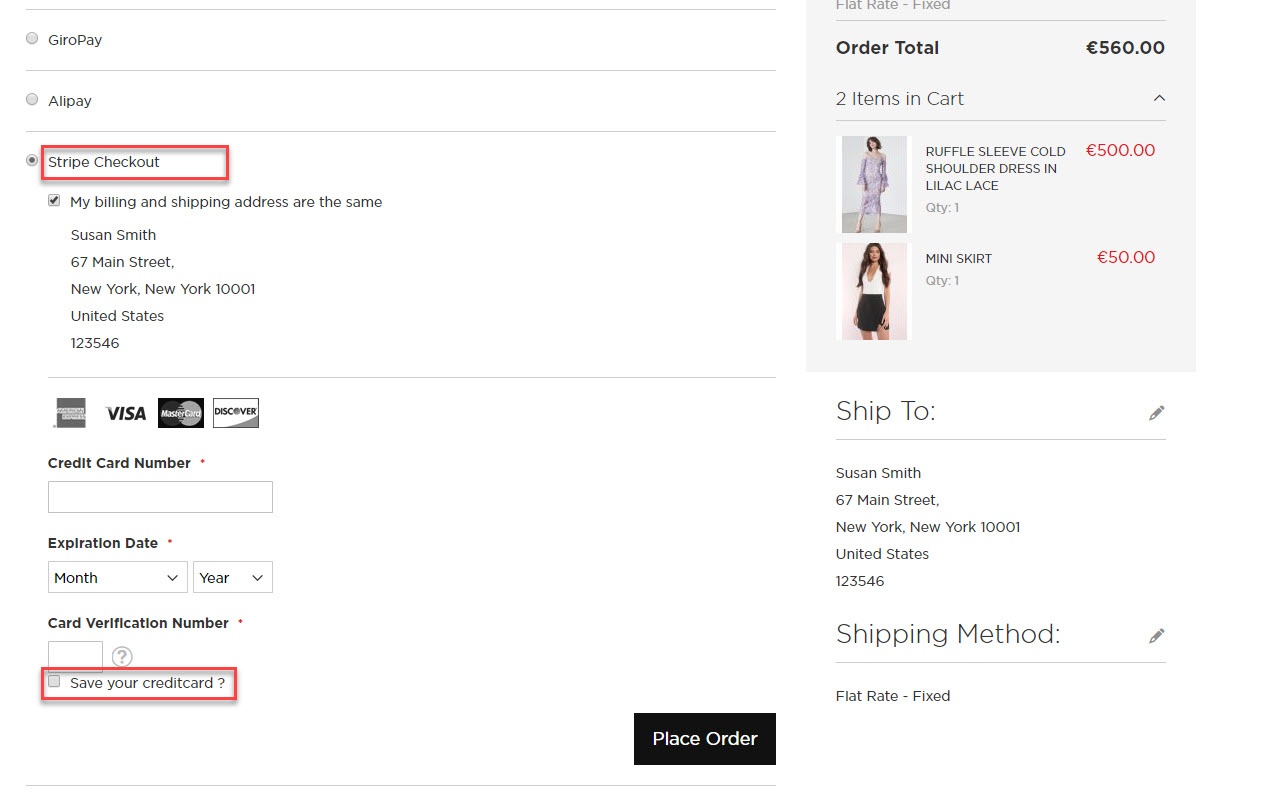

Checkout with Stripe Checkout (Direct Checkout)
If the customer sign in with an account, he/she can use the save card function by ticking in the Save your credit card box.

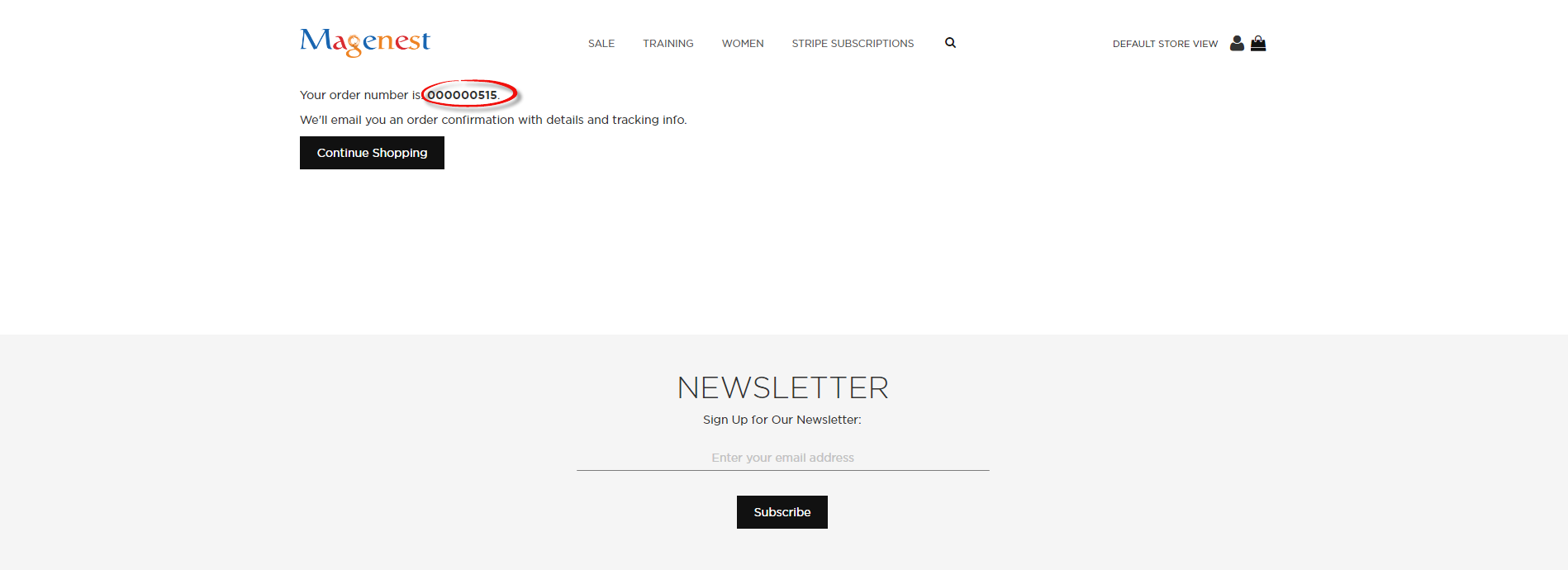

After filling in all the neccessary information, click Place Order to finalize the payment.

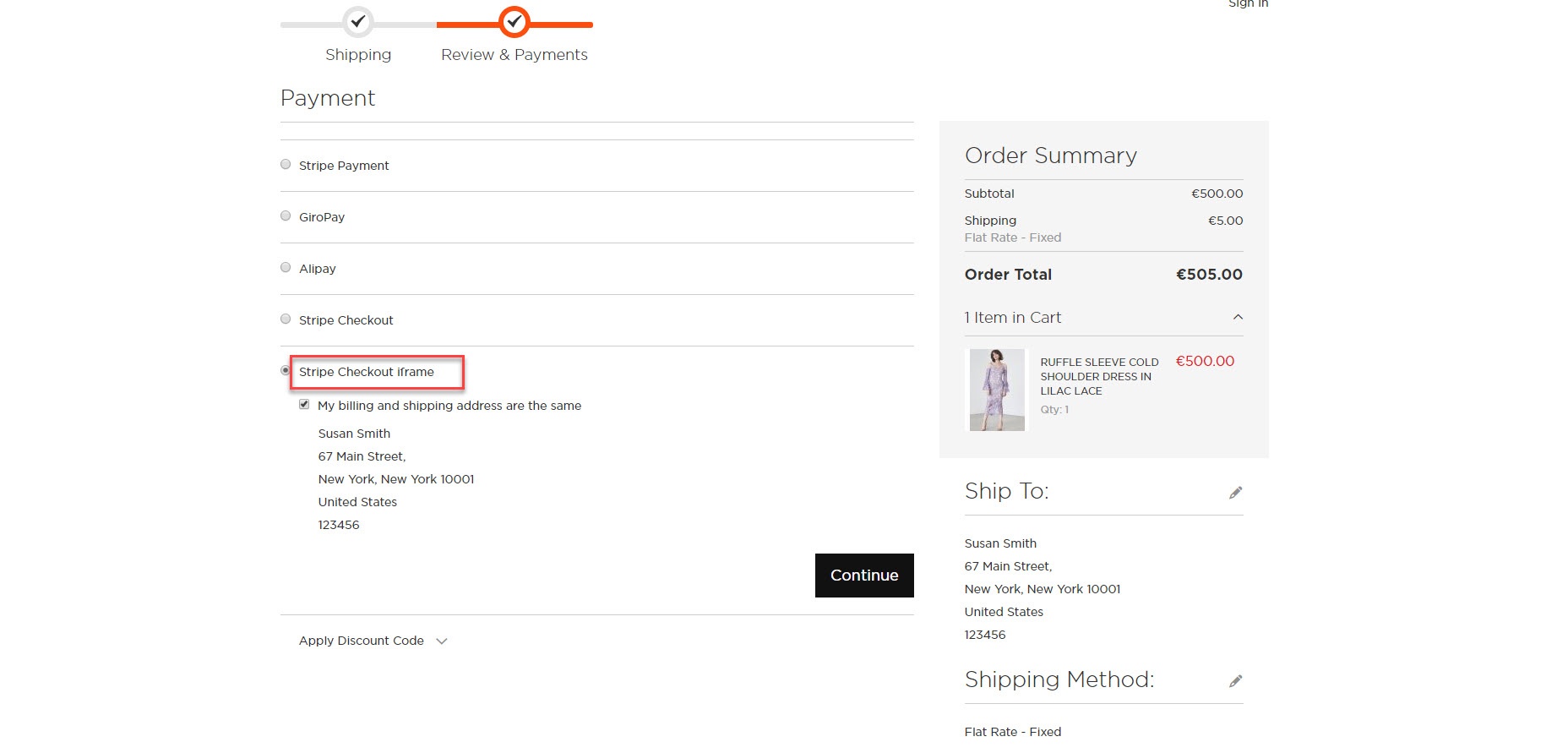

Checkout with Stripe IFrame Checkout (Redirect Checkout)
Another payment method is Stripe Checkout Iframe. It supports wonderful functions with Credit Card, Alipay, and Bitcoin.
When customer Place order, an Iframe form will be displayed as below with 3 choices for payment methods.

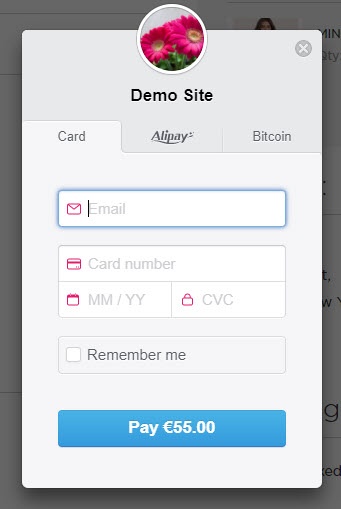

Credit card Iframe checkout form

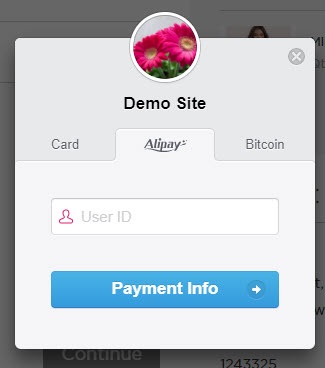

Alipay Iframe checkout form

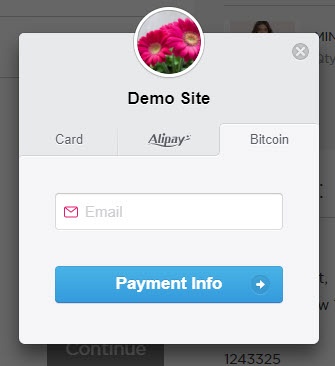

Bitcoin Iframe checkout form
If customer enters his mobile phone number, Stripe will send a 6-number-verification code to confirm his payment info.
Support 3D secure:

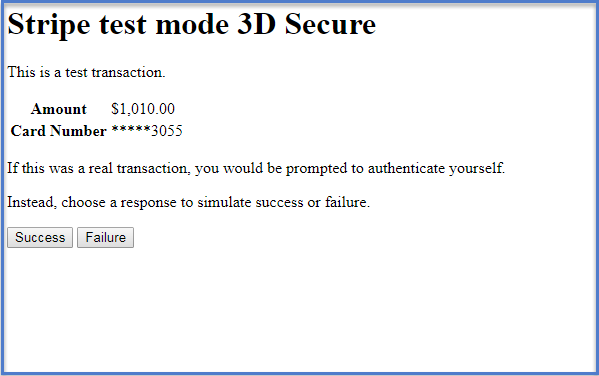

When customers use type of card provided with 3D secure function. Stripe will turn on automatic mode to check. The operation will redirect to processing page:
Press Success button. The inform result will sent to customer.

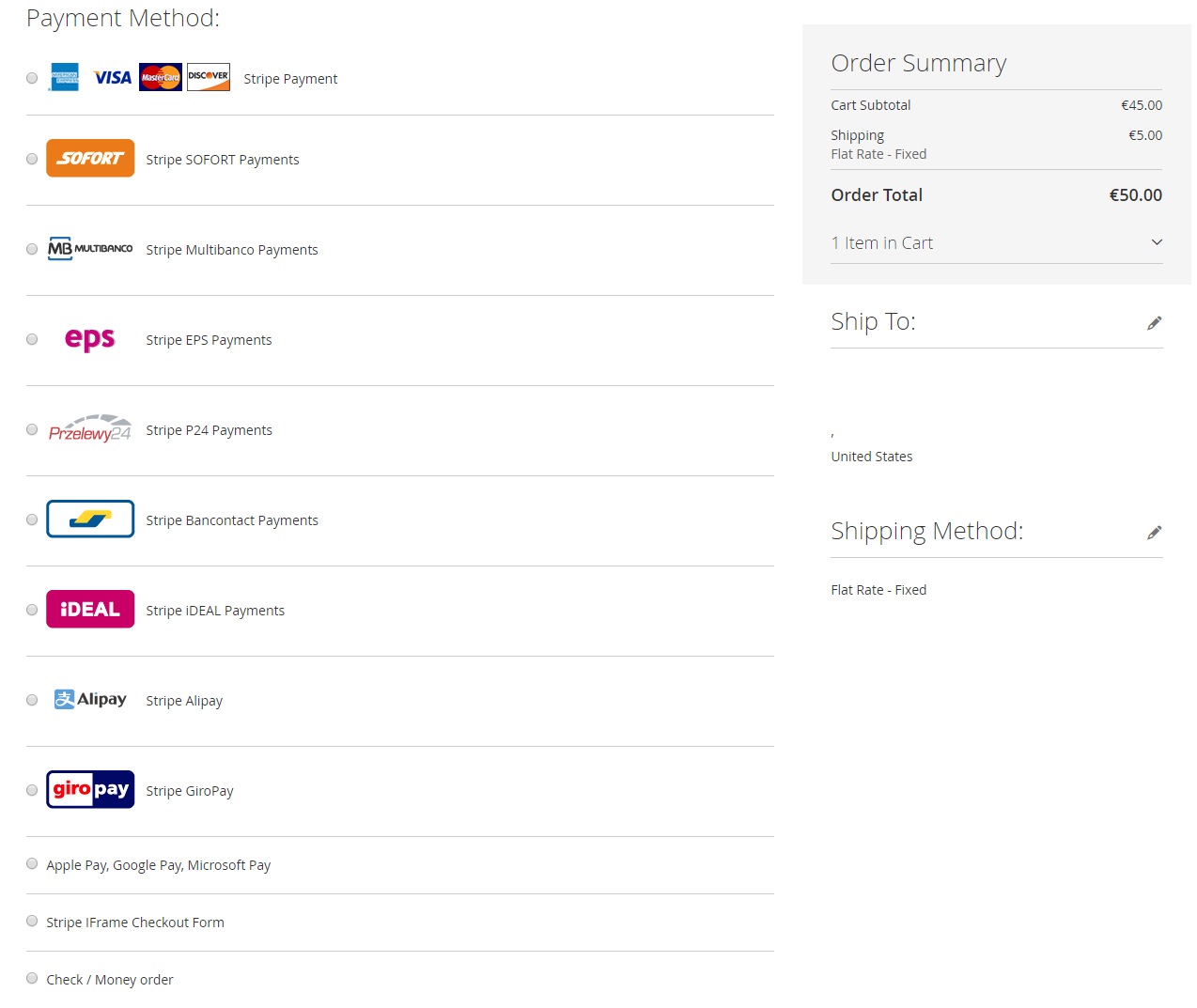

Check out with other payments
A part from Stripe checkout, Stripe Pay also supports multiple payment methods for customer convenience.
Making payment from backend (MOTO)
Customers do not always purchase online, sometimes they can order via telephone calls or emails. In these cases, it is essential that you - admin can make payments from backend on behalf of customers.
Using PCS DSS and Stripe v3.2 security standards, you can use customers's saved cards to make payment from backend for them. In this way, customer's credit card info will be secured, rather than admin types credit card info.

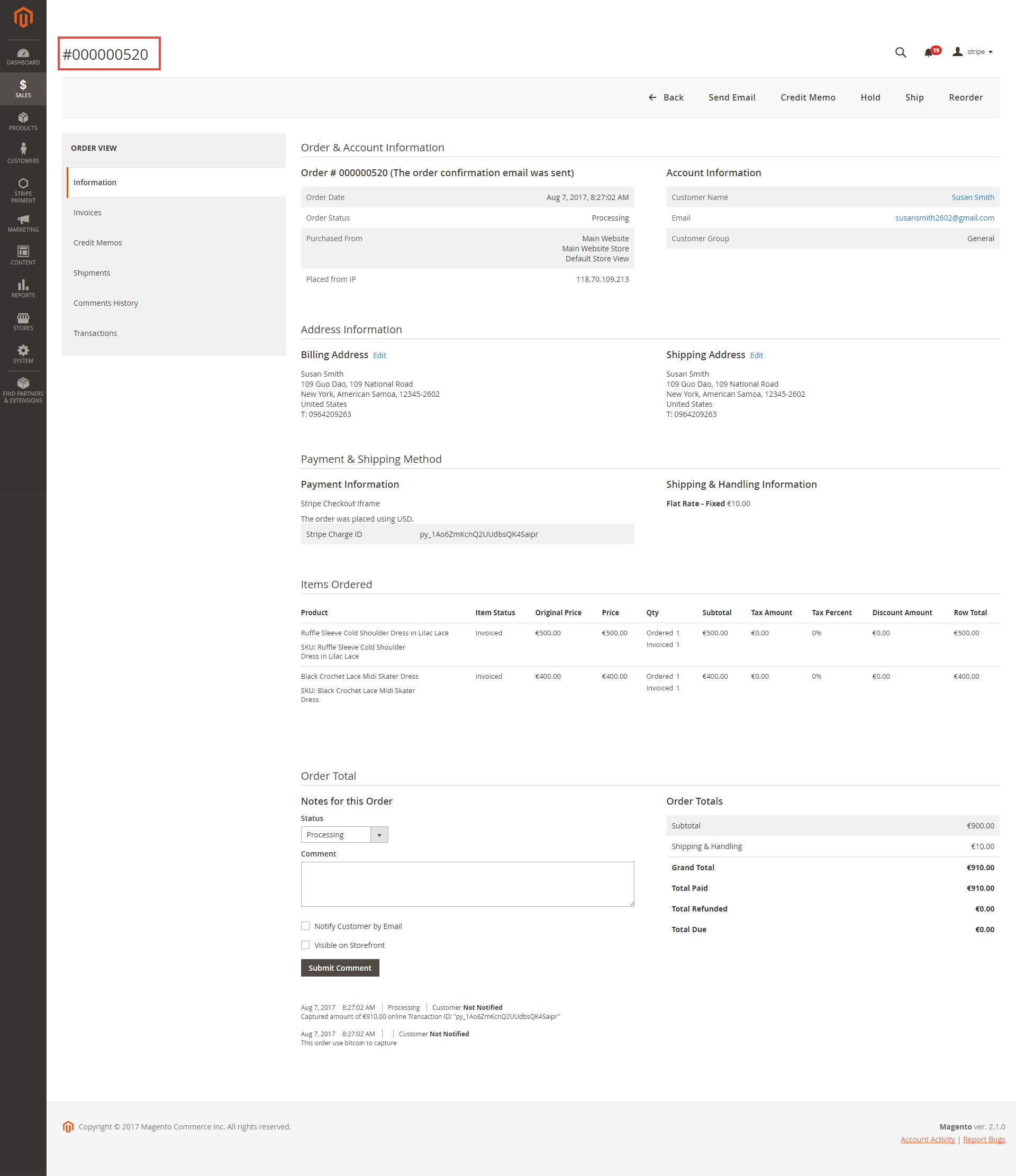

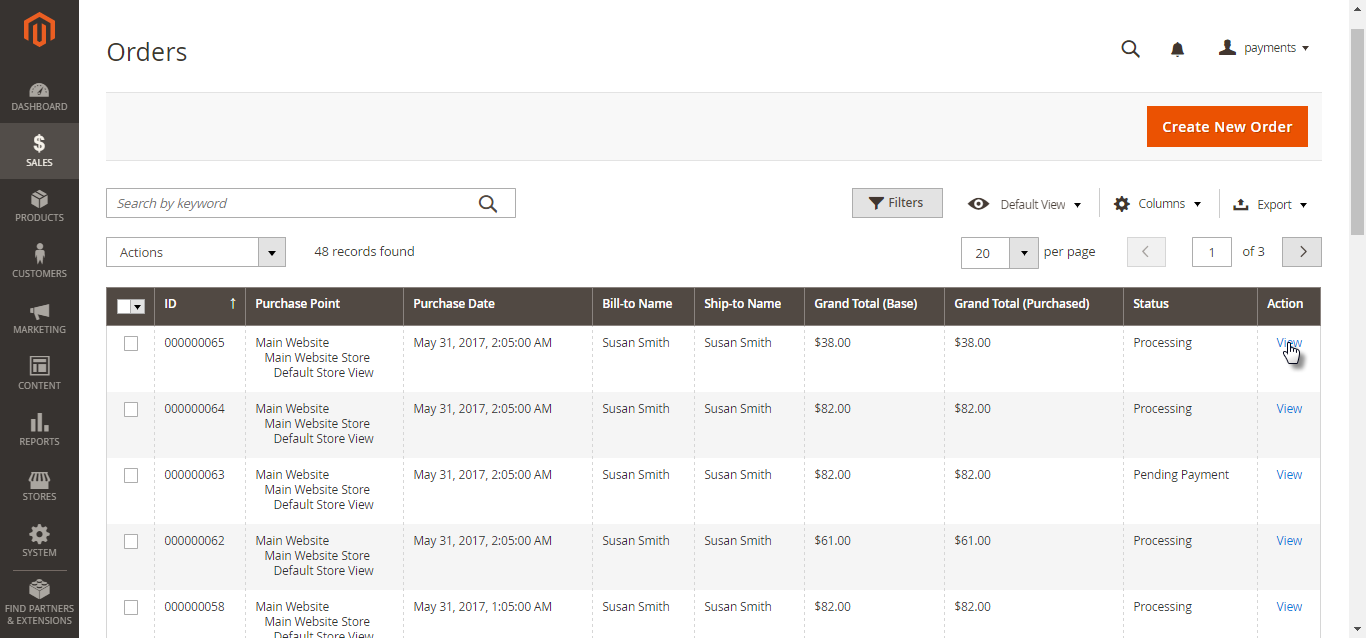

View Order:
When the transaction is completed, customers can review their orders by clicking Sales > Orders > View.

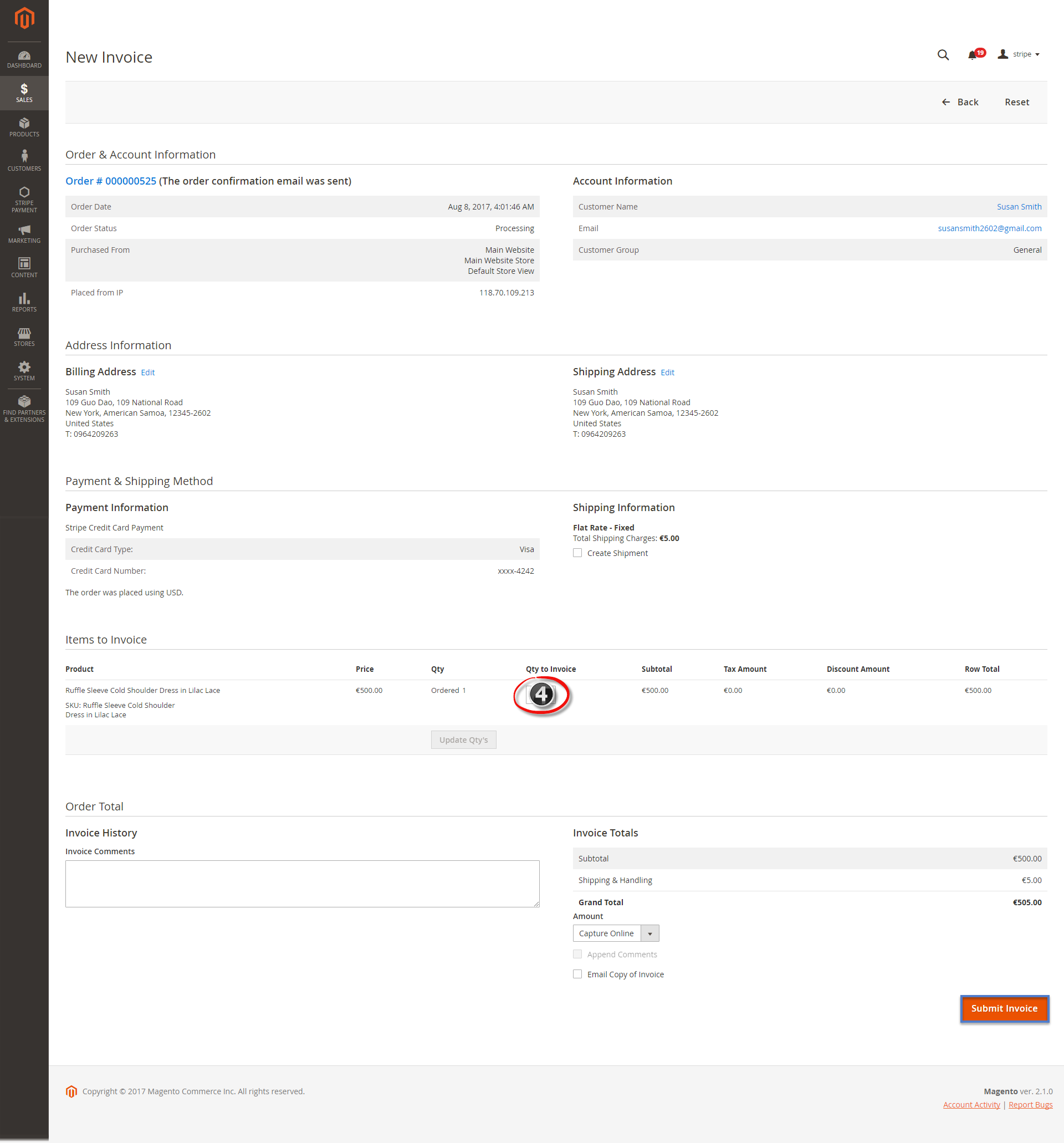

Capture Invoice:
While invoice is not created meanings customers select Payment Action in Authorize Only status. Customers can capture invoice in their request. However, quantity of products in new invoice
must be smaller or equal with pre-order and invoice only is submitted once.

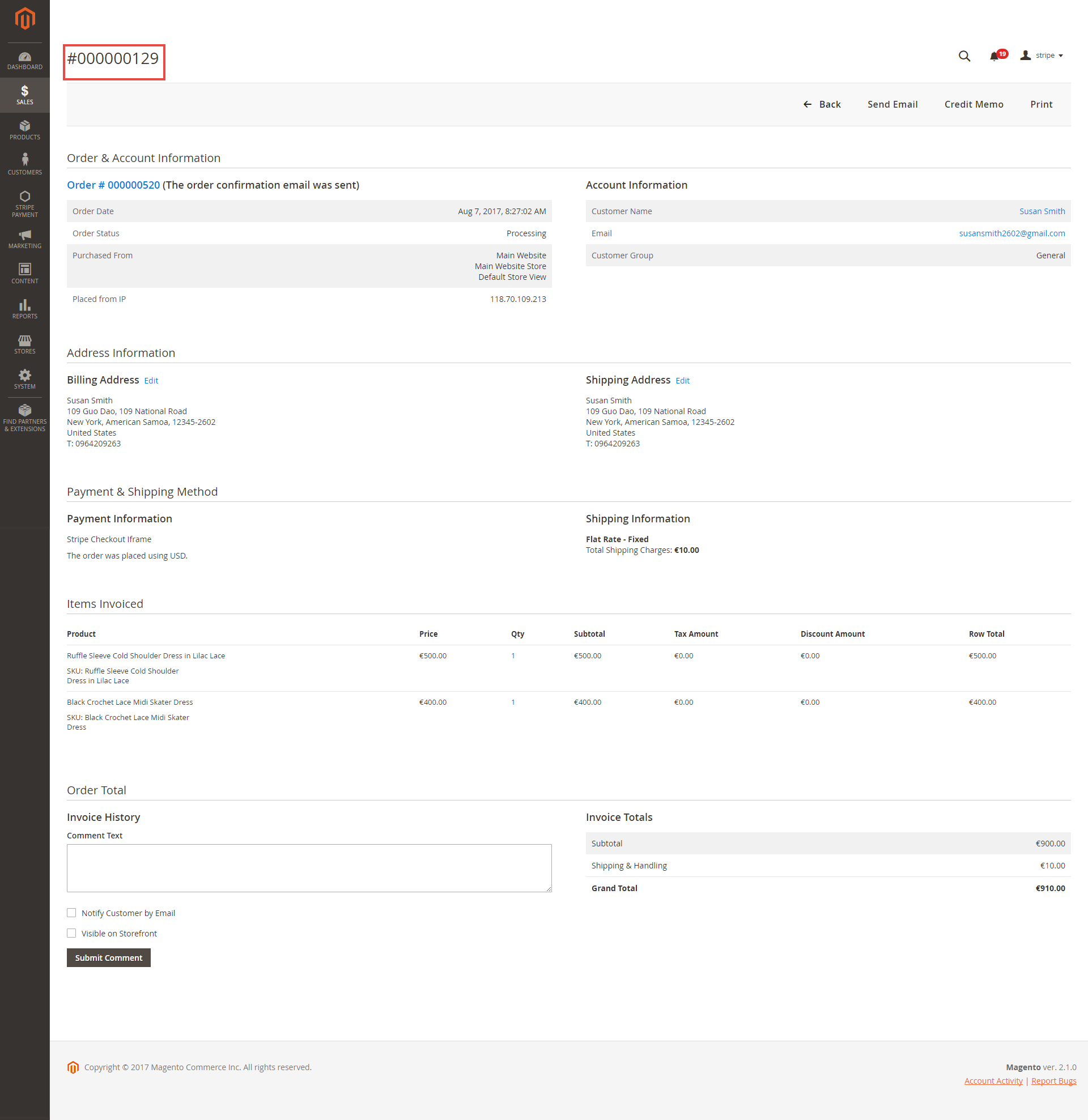

View Invoice:
By clicking invoice and pressing View, customer can see the content of invoice that you want:
And choose Credit Memo tab and clicking Refund in need
Partial or total refund:
Moreover, Stripe is a great tool. Customer can refund partially or totally by clicking Credit Memo-> Refund.
About partial refund, it applies for many frequencies and up to out of products.
Once again, thank you for purchasing our extension. If you have any questions relating to this extension, please do not hesitate to contact us for support.
