Thank you for purchasing our extension. If you have any questions that are beyond the scope of this document, do not hesitate to leave us an email via [email protected]
Created: 08/11/2016 | By: Magenest | Support Portal: http://servicedesk.izysync.com/servicedesk/customer/portal/22
Magento 2 Stripe Payment Gateway And Subscription extension by Magenest is the ultimate tool that provides seamless payment experience between your Magento 2 store and the Stripe Payment Gateway.
A lot of features is included in the extension that you can tweak to make it best suit your business, including:
Choose between Authorize Only or Authorize and Capture.
Various credit card types
Enable CVC/AVS Verification
Restrict unwanted countries from payment
Easily partial capture invoice.
Conveniently partial or total refund.
Support Giropay, Alipay, SOFORT, Bancontact, EPS, etc.
The primary aim of the extension is to deliver the most fluent and effortless payment experience to the customers:
Your store should be running on Magento 2 version 2.0.x; 2.1.x, and 2.2.x
Merchant needs to have a Stripe account to use our extension. If you have not any Stripe accounts, you need to create a new account by clicking on the following link: https://dashboard.stripe.com/register.
Then, choose Create your Stripe account to set up a new account:
Once you have the Stripe account, sign into your account.
After that, click on API at the left corner > API Keys to take API Keys.

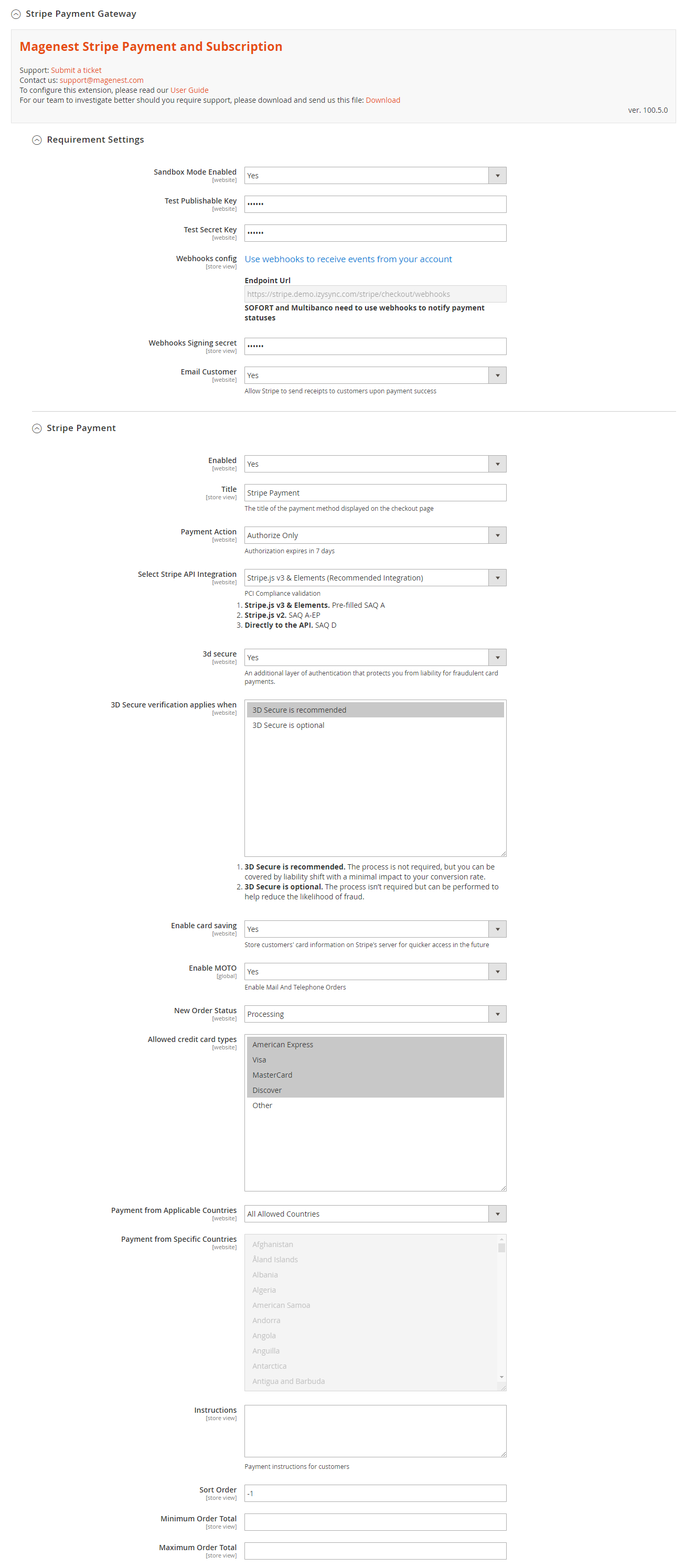

At back end, you need to configure some fields to connect between your Magento site and the stripe account.
First, click on Stripe Payments > Settings > Stripe Payment Gateway
If you use the Test Key:
If you use the Live Key:
Webhooks config: You can configure Stripe webhooks by going to Use webhooks to receive events from your account.

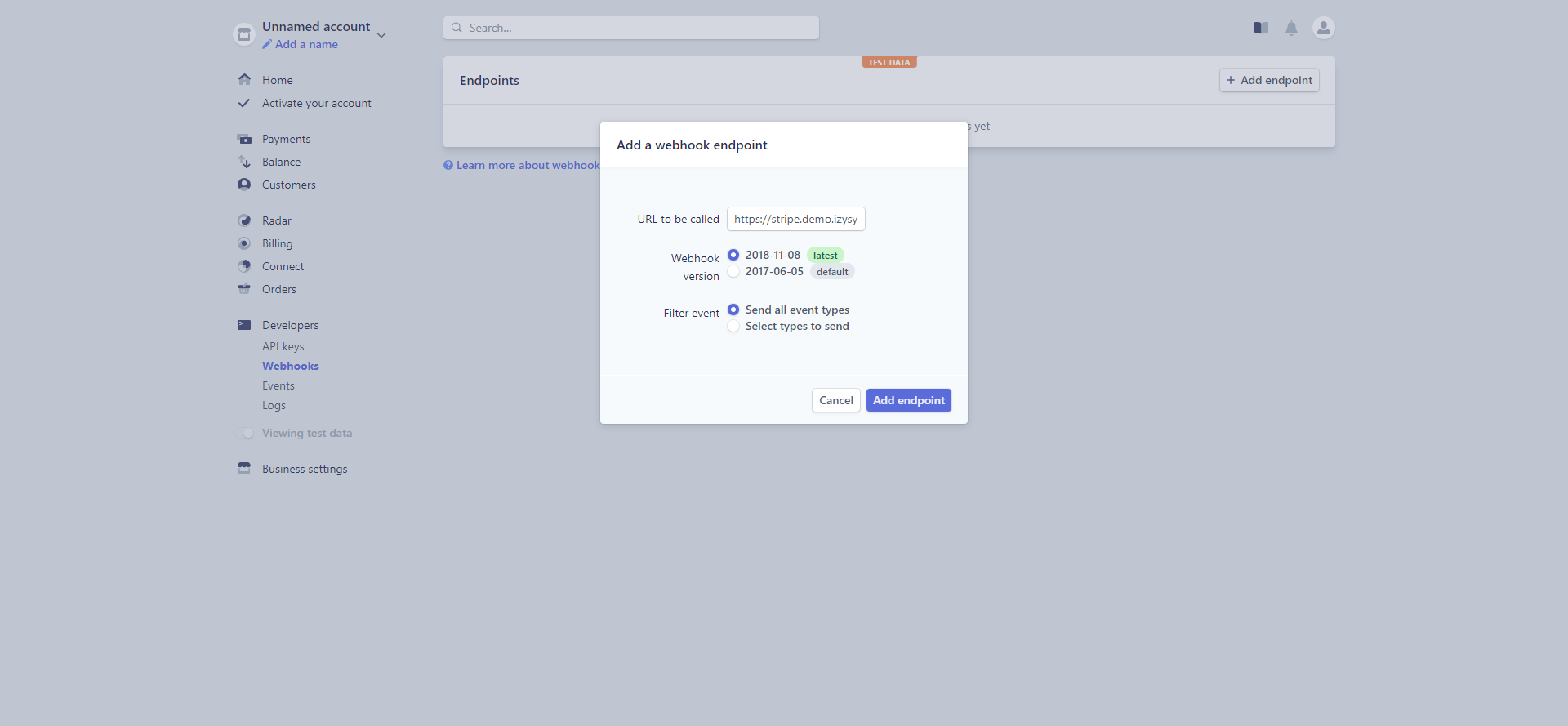

Login your Stripe account, then in the Webhooks configuration, click on Add endpoint button.
The URL to be called follows the format: {your magento url}/stripe/checkout/webhooks
Select the filter event as Send all event types
Add a webhook endpoint

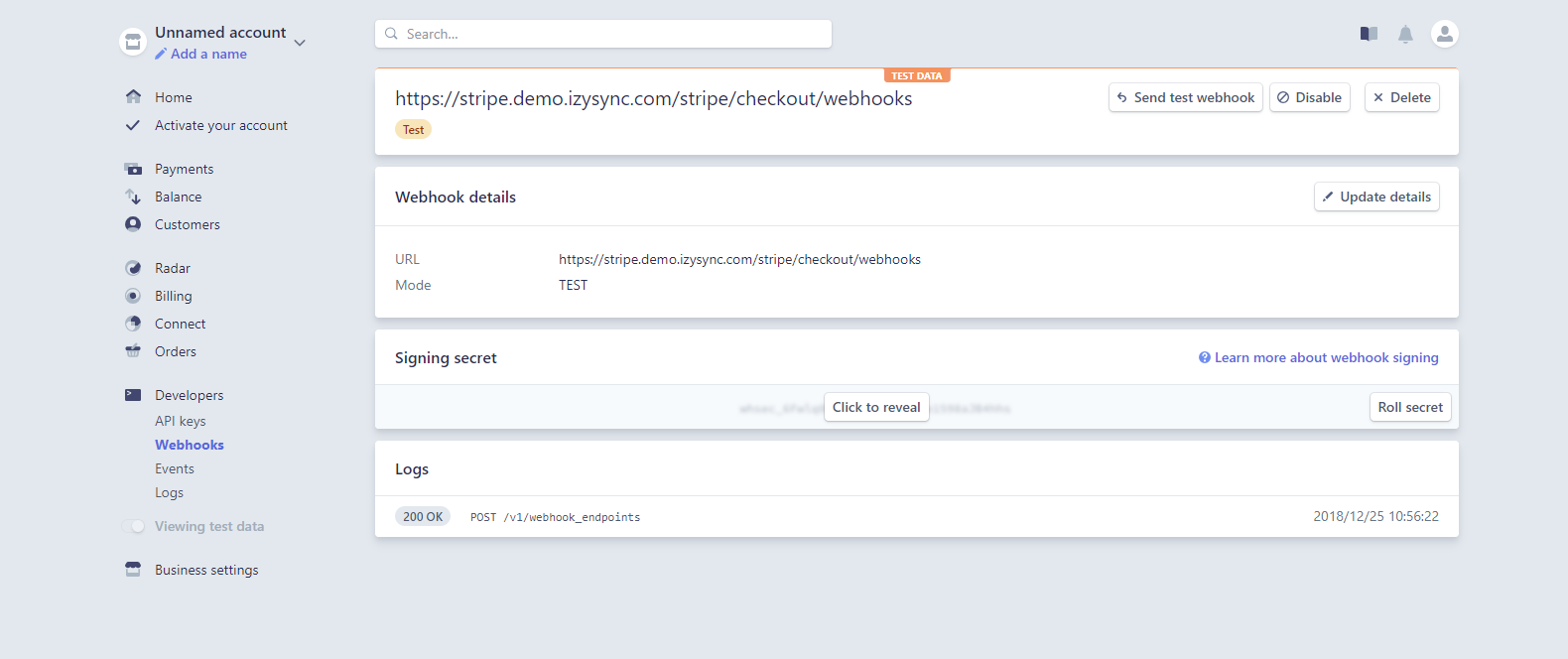

Copy the signing secret and paste to Magento 2 Configuration
Enabled: Choose Yes to enable the Stripe payment method.
Title: the title of the payment method displayed on the Checkout Page.
You can set the Payment Action to be Authorize and Capture or Authorize Only
Select Stripe API Integration: There are 3 Stripe API to choose
It is highly recommended to use Stripe.js v3 & Elements for advanced security features.
Note: In order to enable 3D secure, you must use Stripe.js v3 & Elements or Stripe.js v2.
Display payment button: Enable this option to display Apple Pay, Google Pay, and Microsoft Pay payment button in Stripe payment method
3D Secure: Choose Yes to enable 3D secure for Stripe payments
The behavior and application of 3D secure varies across card types and networks. Some card issuers does not support this verification method, in order to deal with that, you can choose 1 of 2 options for 3D secure application:
3D secure is recommended: The process is not required, but you can be covered by liability shift.
3D secure is optional: The process isn’t required but can be performed to help reduce the likelihood of fraud.
Force 3D secure: Choose Yes to force 3D secure application.
Enable card saving: Allow logged in customers to save credit card information.
Enable MOTO: Allow admin to make payment from backend.
You can set the New Order Status: Processing, Suspected Fraud
Allowed Credit Card Types: You can choose which credit card types are accepted on your site by choosing one or more items.
Payment from Applicable Countries:
In addition, you can add/edit the Instructions to instruct customers how to do payment.
Sort Order: The order of the payment method that will be displayed on the checkout page.
Subscription Configuration
Subscription Billing:
Apply tax for each subscription item
Cancel at period end
Note that subscription product cannot be in the same cart with one-time purchase product
Subscription products in the same cart have to be in the same billing cycle
Stripe IFrame Checkout Form
Enabled: Choose Yes to enable the IFrame checkout form method
Title: Edit the title for the payment method. Here we recommend you to set it as "Stripe Checkout IFrame"
You can set the Payment Action to be Authorize and Capture or Authorize Only
You can set the New Order Status: Processing, Suspected Fraud
3D secure: The 3D secure settings for this method will follow the 3D secure settings in Stripe Payment Settings. Note that you don't have to enable Stripe Payment Settings to make it work, just change the 3D secure settings then Save Config.
Name of website displayed on Checkout: Your store name.
Panel Label: The label of the payment button in the Checkout form
You can turn on Allow Stripe Checkout to collect customer's billing address, shipping address and zip code
Remember Me: If you set this option to Yes, Stripe will save the customer's information for later purchase in every website that use Stripe Payment Gateway.
Logo image:
Sort Order: The order of the payment method that will be displayed on the checkout page.
Payment from Applicable Countries:
Register Apple Pay: Enter your domain here to verify for Apple Pay.
Enabled: Choose Yes to enable Apple Pay, Google Pay, Microsoft Pay
Title: Fill in the title for the payment method
You can set the Payment Action to be Authorize and Capture or Authorize Only
You can set the New Order Status: Processing, Suspected Fraud
Replace default Place order button: Enable to replace the default Place Order button with Apple Pay, Google Pay or Microsoft Pay Place Order button. Note that this option can cause conflict with One step Checkout extension, so if currently you are using One Step Checkout, turn this option off.
To use Google Pay (for PC), customers have to add their credit card to the browser.
Button type: You have 3 options for the payment button type - Default, Donate or Buy
Button Theme: 3 options as Dark, Light, Light Outline
Sort Order: The order of the payment method that will be displayed on the checkout page.
Payment from Applicable Countries:
You can enable Alipay Payment easily just by choosing Yes in Enabled then Save Config.
Note that the currency of the payment must be the default currency of your country. It could be AUD, CAD, EUR, HKD, NZD, SGD, or USD.
In Denmark, Norway, Sweden, and Switzerland, the currency for the payment will be exchanged to EUR.
The Giropay currency is EUR.
You can enable the payment method by choosing Yes in Enabled then Save Config.
The SOFORT currency is EUR.
You can enable the payment method by choosing Yes in Enabled.
Title: Fill in the title for the payment method
Allow select bank country: Enable customers to choose their country to make payments.
Default Bank Country: Set the default bank country to be displayed on checkout: Austria, Belgium, Germany, Italy, Netherlands, Spain
Allow select language: Enable customers to choose the preferred language
Default language: Set the default language for the payment method: English, German, Spanish, Italian, French, Dutch, Polish.
In addition, you can add/edit the Instructions to instruct customers how to do payment.
The iDEAL currency is EUR.
You can enable the payment method by choosing Yes in Enabled.
Title: Fill in the title for the payment method
Use iDEAL Bank Element Interface: If you choose Yes, the payment method will be displayed with iDEAL interface.
If you don't use the iDEAL interface, you can choose No and change the settings as follows:
Allow select bank country: Enable customers to choose their country to make payments.
Default Bank: If you don't want to allow customers to choose their bank. You can set a default bank.
In addition, you can add/edit the Instructions to instruct customers how to do payment.
The Bancontact currency is EUR.
You can enable the payment method by choosing Yes in Enabled.
Title: Fill in the title for the payment method
Allow select language: Enable customers to choose the preferred language
Default language: Set the default language for the payment method: English, German, French, Dutch.
In addition, you can add/edit the Instructions to instruct customers how to do payment.
Following other payment method, in order to enable P24 Payments, EPS Payments, or Multibanco Payments, you have to choose Yes in Enabled.
You can add/edit the Instructions to instruct customers how to do payment.
When done, please press Save Configuration then go to Cache Management to flush cache.
To create a subscription product, click on Products > Catalog. On the right side, click on Add Product and choose the desired product type among 6 types (Simple Product, Configurable Product, Grouped Product, Virtual Product, Bundle Product, Downloadable Product).
Then, the New Product page will be shown.
Regarding the Stripe Payment and Subscriptions extension, focus on two tabs named Stripe Subscription and Stripe Subscription Billing Options.
At Stripe Subscription tab, you will set whether a product is a stripe subscription product or not.
At Stripe Subscription Billing Options tab, you will need to set plans for the subscription product. There are some fields to set, include:
Also, if you want to add more plans for a product, click on Add Option button on the right side. Then, you can add the same as above.
Finally, click on Save button to complete.
At the same time, your Stripe account will also automatically sync a product corresponding with the subscription product created at Plans tab.
We created a Stripe Payment tab which allows you to view and manage Stripe Order.
There are two tabs, includes:
With the Settings tab, we provide you with the fastest way possible to access to Stripe Payment Settings.
Go to Subscription Manager tab, you will see the list of orders regarding the subscription products.
You can view and manage some information such as: Order ID, Subscription ID, Start Date, End Date and Status an easy way.
Click on the View button on the right to see the details of a subscription product.
Click on the Subscription ID Number in the first column to see the details of a subscription order.
At front end, customer can add the items into shopping cart by clicking the Add to Cart button.
Then, go to the checkout page. Customer fills in his/her shipping address and selects the payment method.
Checkout with Apple Pay/Google Pay
To use Google Pay (for PC), customers have to add their credit card to the browser.
In case your browser can't pay button to transfer, follow this guide to display Stripe Payment request button.
Mark the checkbox "My billing and shipping addresses are the same" if the shipping address and the billing address are not different.
If they are different, fill in the billing address then click "Update".
After filling in all the neccessary information, click Pay now to place the order.
Stripe Apple Pay Checkout
After successful payment, at Payments tab of Stripe, the order will be updated corresponding with Magento.
Checkout with Stripe Giro Pay
After filling in all the neccessary information, click Continue to place the order.
Then, it redirects to Stripe Giro Pay Payment Page and buyer can finalize his payment there.
Checkout with Stripe Alipay
After filling in all the neccessary information, click Place Order
Then, it redirects to Stripe Alipay Payment Page and buyer can finalize his payment there.
Checkout with Stripe Checkout (Direct Checkout)
If the customer sign in with an account, he/she can use the save card function by ticking in the Save your credit card box.
After filling in all the neccessary information, click Place Order to finalize the payment.

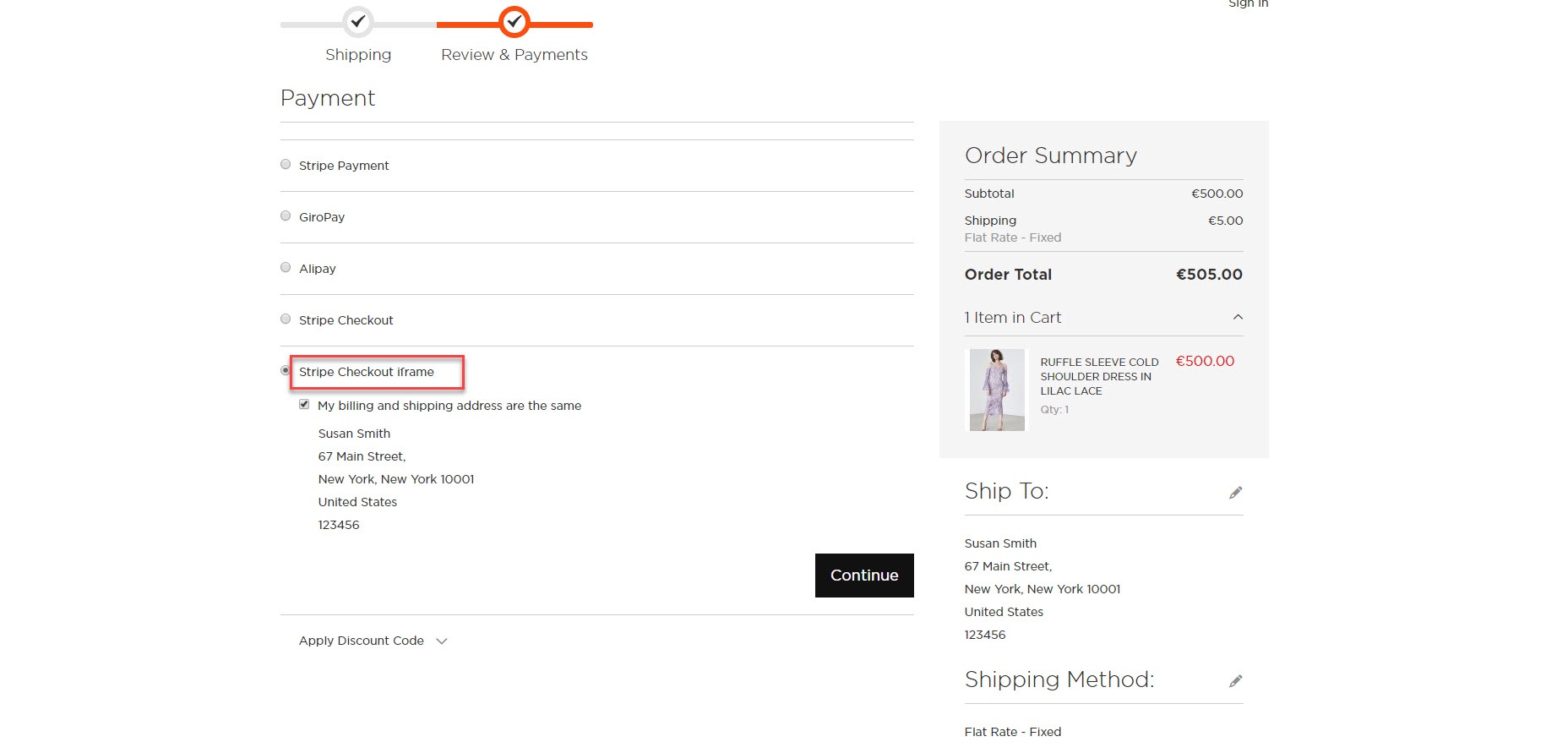

Checkout with Stripe IFrame Checkout (Redirect Checkout)
Another payment method is Stripe Checkout Iframe. It supports wonderful functions with Credit Card, Alipay, and Bitcoin.
When customer Place order, an Iframe form will be displayed as below with 3 choices for payment methods.
Credit card Iframe checkout form
Alipay Iframe checkout form
Bitcoin Iframe checkout form
If customer enters his mobile phone number, Stripe will send a 6-number-verification code to confirm his payment info.
Support 3D secure:
When customers use type of card provided with 3D secure function. Stripe will turn on automatic mode to check. The operation will redirect to processing page:
Press Success button. The inform result will sent to customer.
Check out with other payments
A part from Stripe checkout, Stripe Pay also supports multiple payment methods for customer convenience.

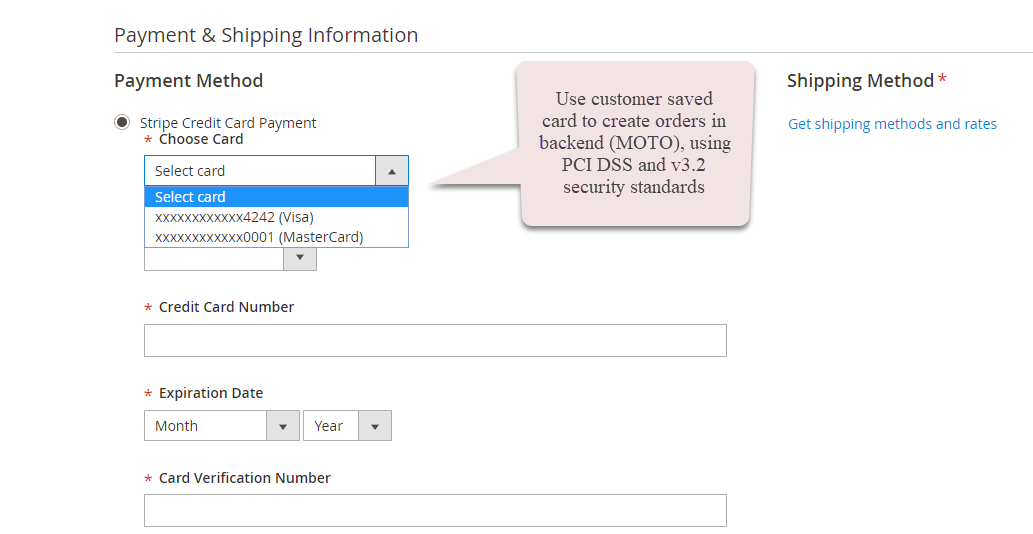

Customers do not always purchase online, sometimes they can order via telephone calls or emails. In these cases, it is essential that you - admin can make payments from backend on behalf of customers.
Using PCS DSS and Stripe v3.2 security standards, you can use customers's saved cards to make payment from backend for them. In this way, customer's credit card info will be secured, rather than admin types credit card info.
To enable this feature, go to Stripe Payments > Settings > Stripe Payment Gateway > Stripe Payment and choose Yes in Enable MOTO.
When you create new order in Magento 2 backend, in Payment & Shipping Information, choose Stripe Credit Card Payment then fill in the credit card information to make the payment for the order.
View Order:
When the transaction is completed, customers can review their orders by clicking Sales > Orders > View.
Capture Invoice:
While invoice is not created meanings customers select Payment Action in Authorize Only status. Customers can capture invoice in their request. However, quantity of products in new invoice
must be smaller or equal with pre-order and invoice only is submitted once.
View Invoice:
By clicking invoice and pressing View, customer can see the content of invoice that you want:
And choose Credit Memo tab and clicking Refund in need
Partial or total refund:
Moreover, Stripe is a great tool. Customer can refund partially or totally by clicking Credit Memo-> Refund.
About partial refund, it applies for many frequencies and up to out of products.
Once again, thank you for purchasing our extension. If you have any questions relating to this extension, please do not hesitate to contact us for support.
