Introduction
Stripe Payment Gateway And Subscription extension by Magenest is the ultimate tool that provides seamless payment experience between your Magento 2 store and the Stripe Payment Gateway.
Extension's page: Stripe Payment Gateway And Subscription.
Features For Admins
A lot of features is included in the extension that you can tweak to make it best suit your business, including:
Choose between Authorize Only or Authorize and Capture.
New order status.
Email customer.
Allowed credit card types.
Enable CVC verification.
Allowed country.
- Admin can config 3D Secure mode
- Support Save Card function
Easily partial capture invoice.
Conveniently partial or total refund.
Features For Customers
The primary aim of the extension is to deliver the most fluent and effortless payment experience to the customers:
Easily checkout using credit card.
Manage subscriptions (view and cancel subscriptions).
System Requirements
Your store should be running on Magento 2 Community Edition version 2.0.x and 2.1.
Configuration
Set Up Stripe Online Account
You need to have a stripe account to use our extension. If you have not any stripe accounts, you need to create a new account by clicking on the following link: https://dashboard.stripe.com/register

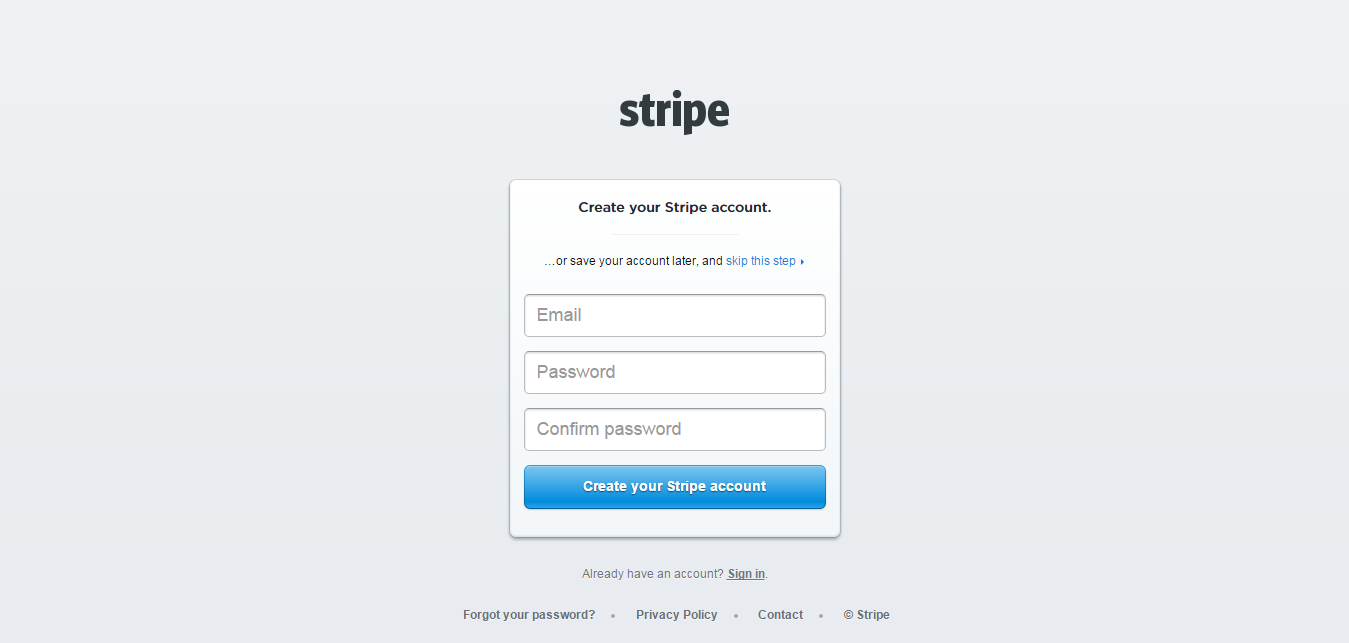

Then, choose Create your Stripe account to set up a new account:

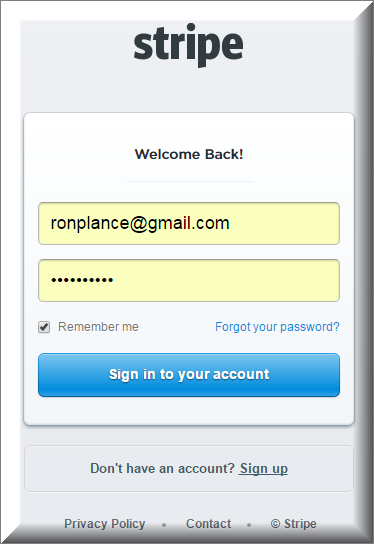

If you had a stripe account, you only sign into your account.
After that, click on API at the left corner > API Keys to take API Keys.
Set Up The Integration On Magento 2

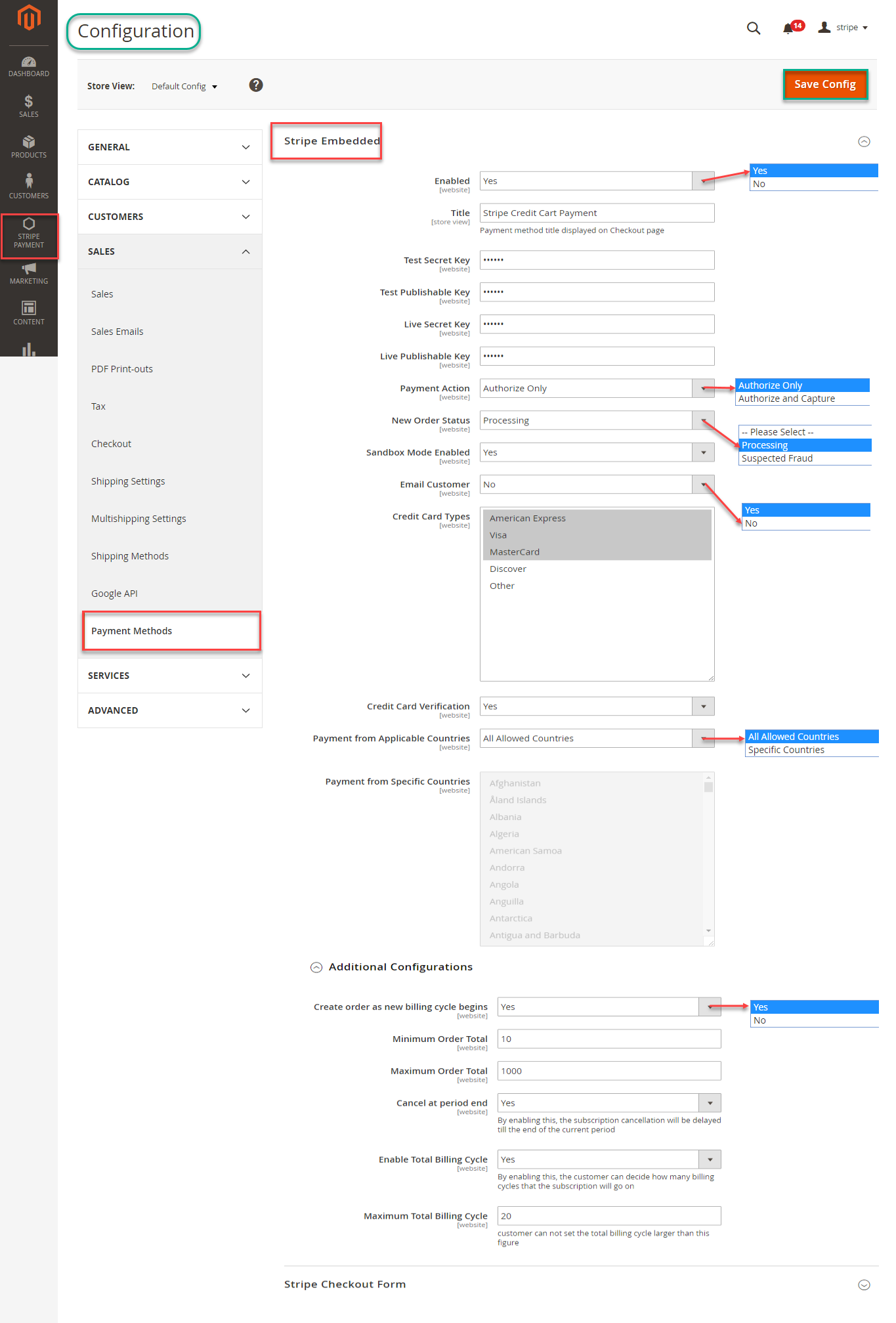

First, navigate to Backend of Magento 2 > Stores > Configuration > Sales > Payment Methods
Admins have the ability of setting Stripe on Magento 2 stores or not. Using API Keys from Stripe websites to fill in the following fields below.
In addition, admins can set information for: Title, Payment Action, New Order Status, Sandbox Mode Enabled, Email Customer, Credit Card Types, Credit Card Verification, Payment from Specific Countries, Minimum or Maximum for Order Total.
Payment Action: choose Authorize Only or Authorize and Capture
Distinguishing between Authorize Only& Authorize and Capture:
- Authorize only: will check the card for validity but not charge the account until the order is approved and invoiced.
- Authorize and capture: will charge the debit/credit card at the time of the order submission.
Note: This direction can be applied with all Subscription product and non-subscription product.
When done, please press Save Configuration, your configuration is ready to use.
Main Functions
For Subscription Product
Create a subscription product
To create a subscription product, admin click on Products > Catalog and choose a product type.

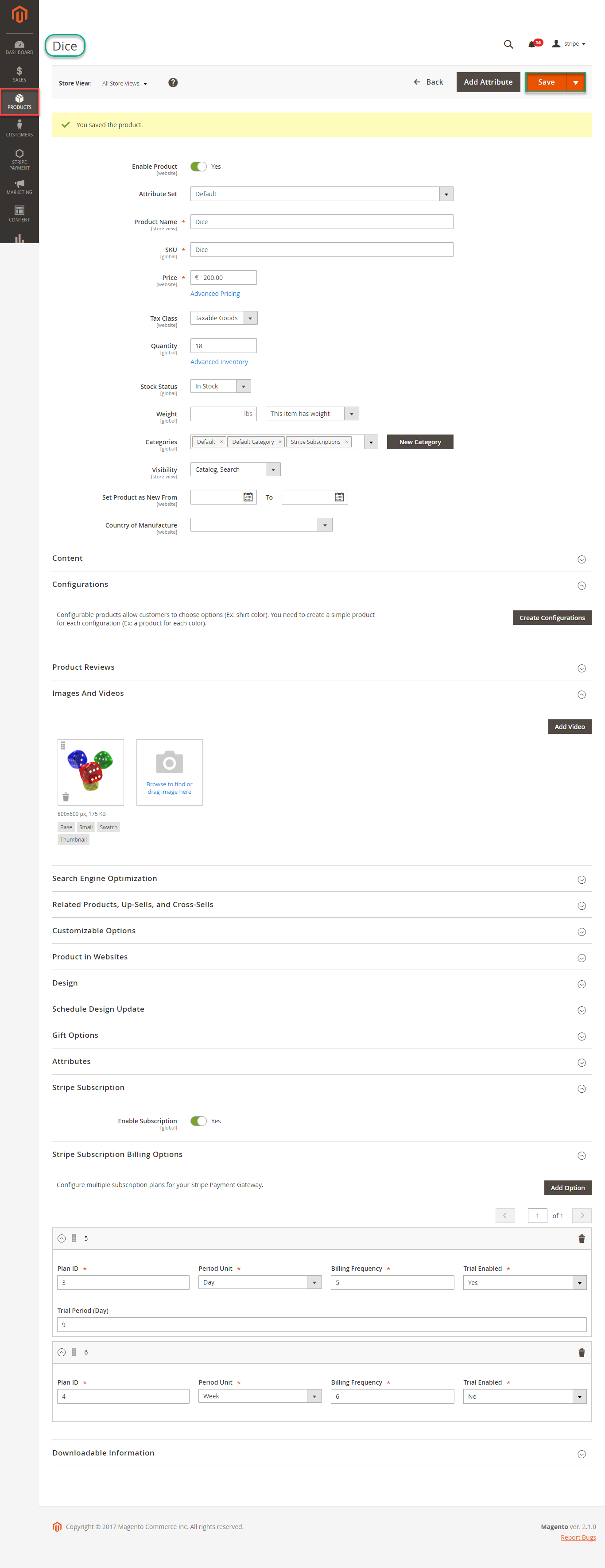

Then, the New Product page will be shown. Regarding the Stripe Payment and Subscriptions extension, admin needs to consider two tabs named Stripe Subscription and Stripe Subscription Billing Options.
At Stripe Subscription tab, admin will set whether a product is a stripe subscription product or not.
+ YES: This product will be shown as a stripe subscription product at front end. This means this product's plans which were set at the Stripe Subscription Billing Options tab will be shown with this product at this product detail page (e.g. Plan ID, Billing Frequency ...). Customers will choose one of them and payment.
+ NO: This product will be shown as a simple product (don't show this product's plans, it will be hidden).
- At Stripe Subscription Billing Options tab, admin will need to set plans if they wish it is a subscription product. There are some fields that admin need to set, include:
+ Plan ID.
+ Period Unit: Select one of the period units (Day, Week, Month, Year).
+ Billing Frequency.
+ Trial Period: Yes/No (Whether the product have a trial version or not). If admin choose Yes, they can define the period time allowing customer can use free the product according to your wish. If admin choose No, this means this product will not have a trail version.
Also, if admin want to add more plans for a product, they only click on Add Option button. Then, admin can add the same as above.
Please click on Save button to complete.

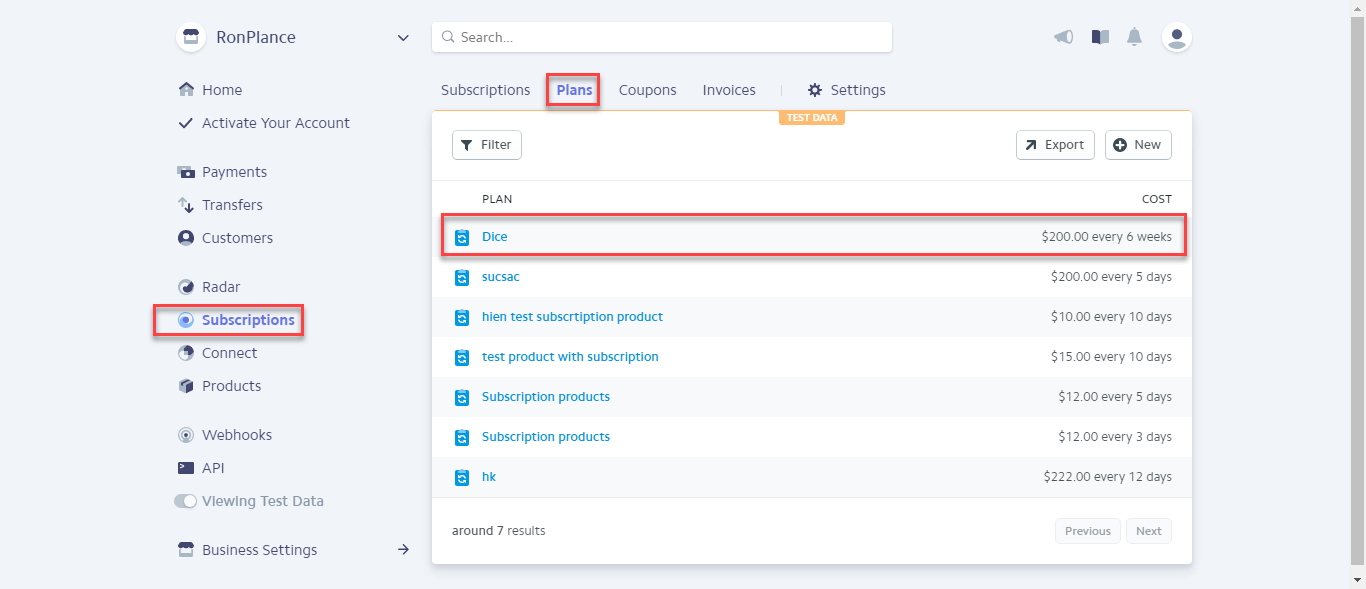

At the same time, your stripe account will also automatically sync a product corresponding with the subscription product created at Plans tab.
View And Manage Stripe Payment

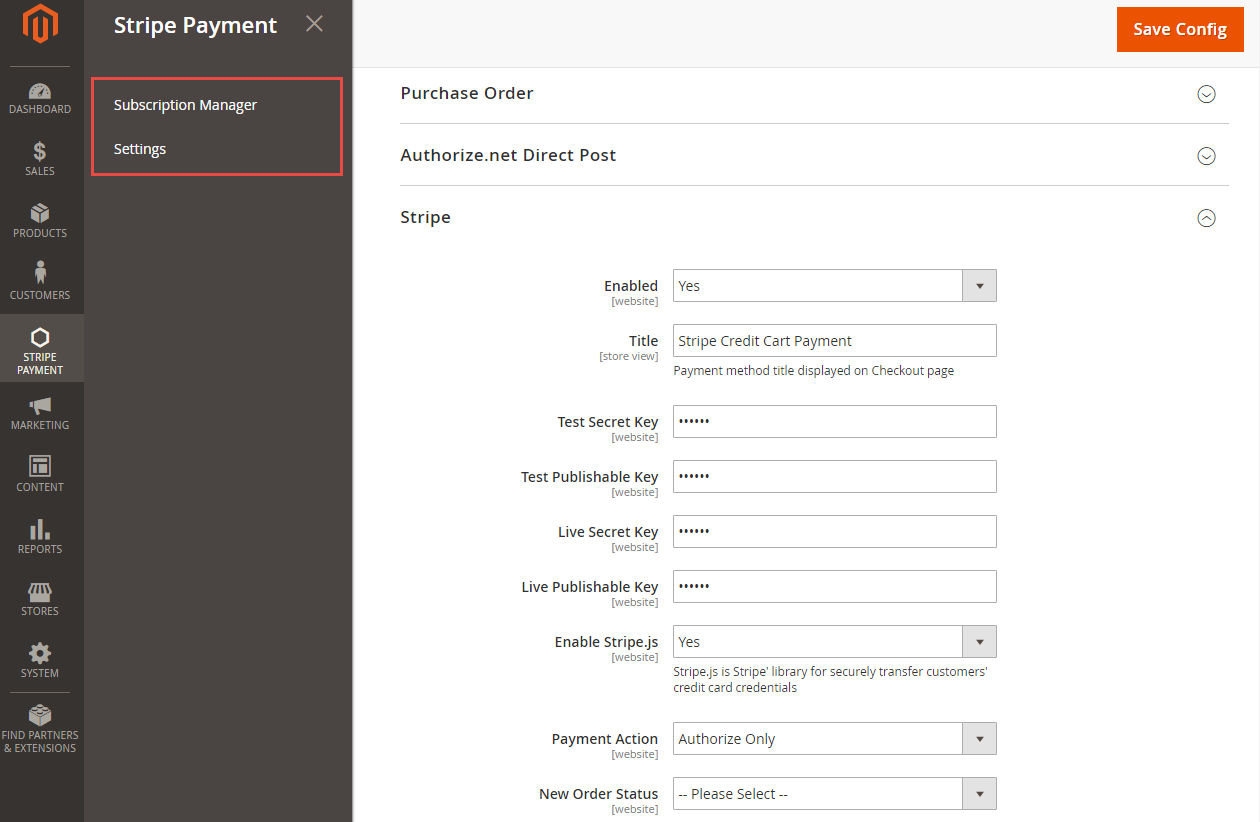

We created a Stripe Payment tab which allows admin can view and manage all of things Stripe Order.
There are two tabs, includes:
- Settings
With the Settings tab, we provide admins with the fastest way possible to access to Stripe Payment Settings.
- Subscription Manager

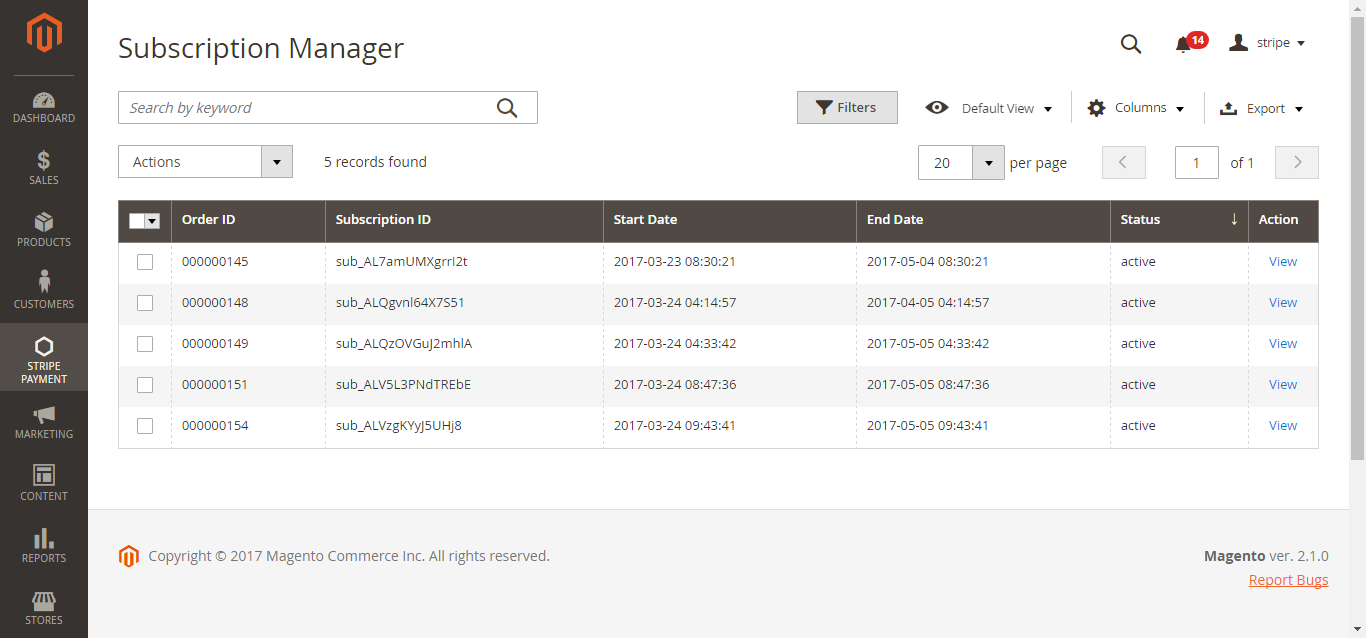

Go to Subscription Manager tab, admin will see the list of orders regarding the subscription products.
Admin can view and manage some information such as: Order ID, Subscription ID, Start Date, End Date and Status an easy way.

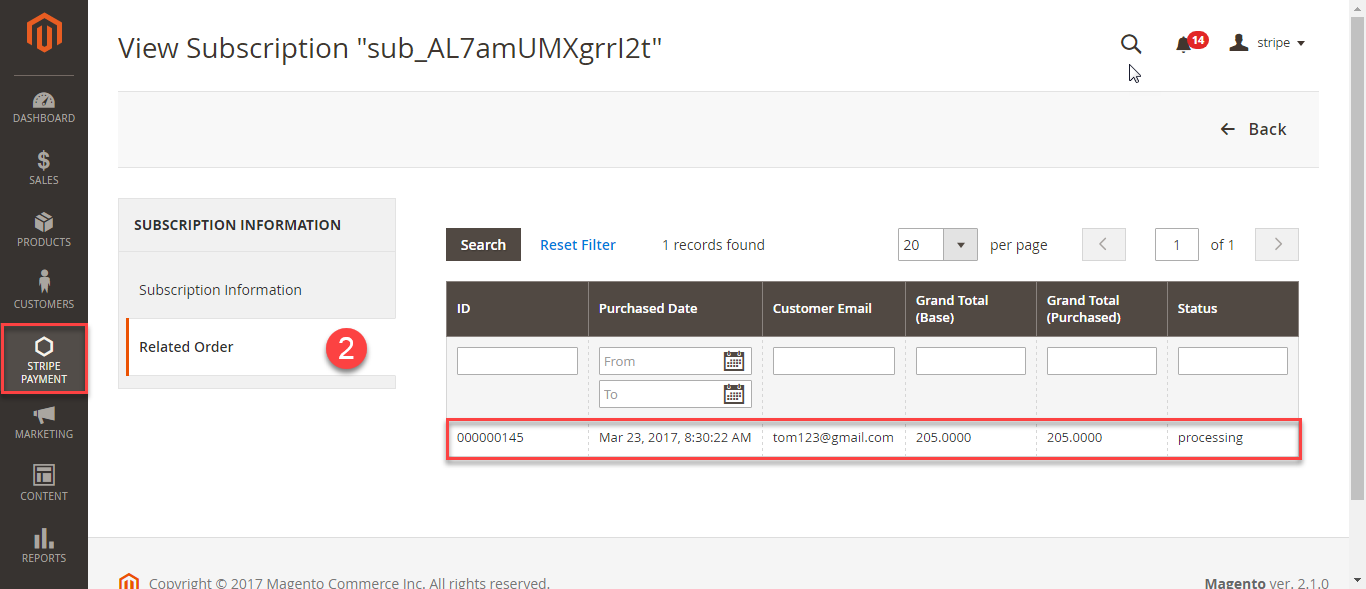

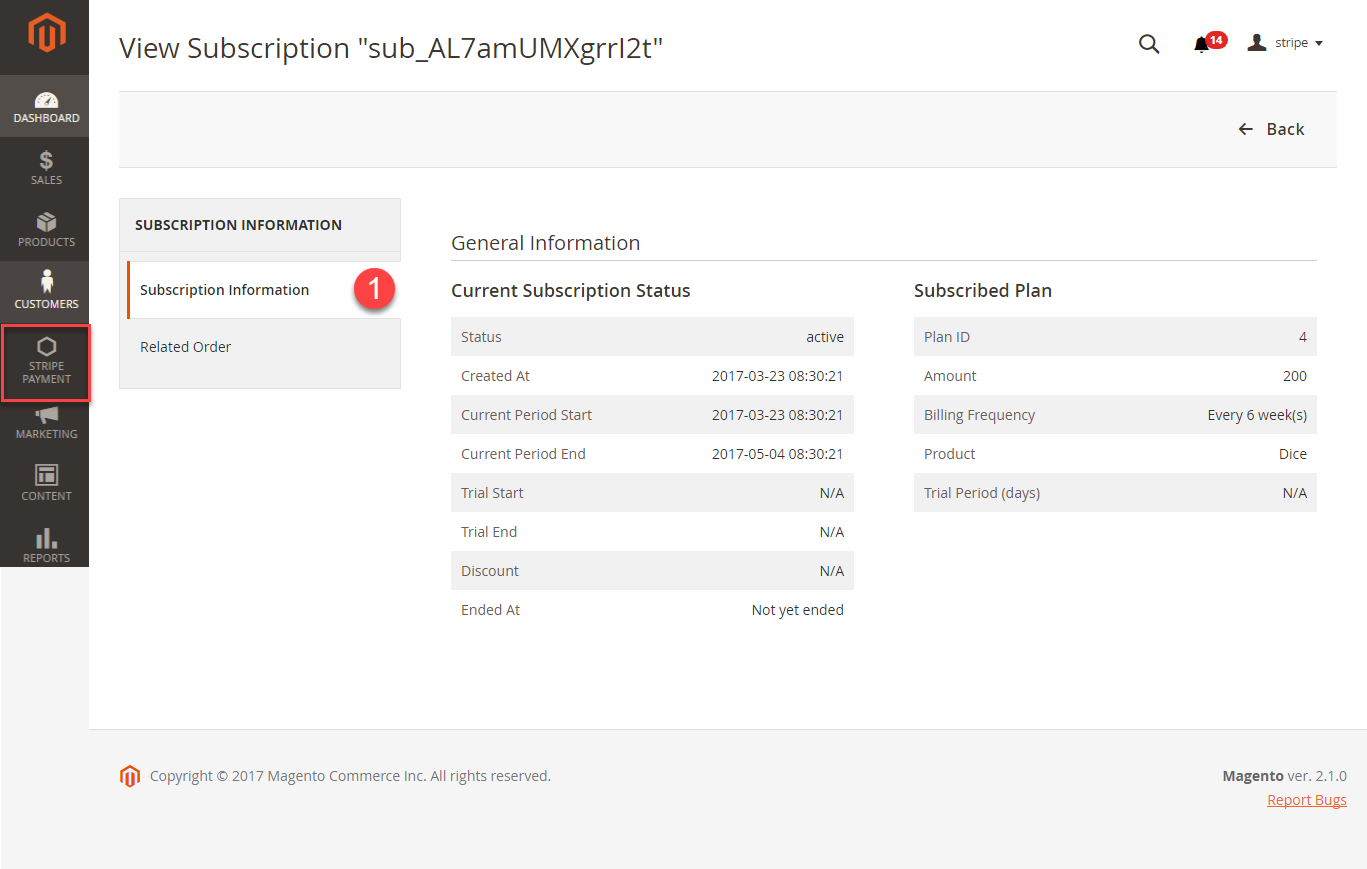

To view more detail, please choose a order that admin consider and click on View.
To view more details, admin clicks on the order that admin wants to consider such as Stripe Subcription ID
Easily Checkout Using Credit Card

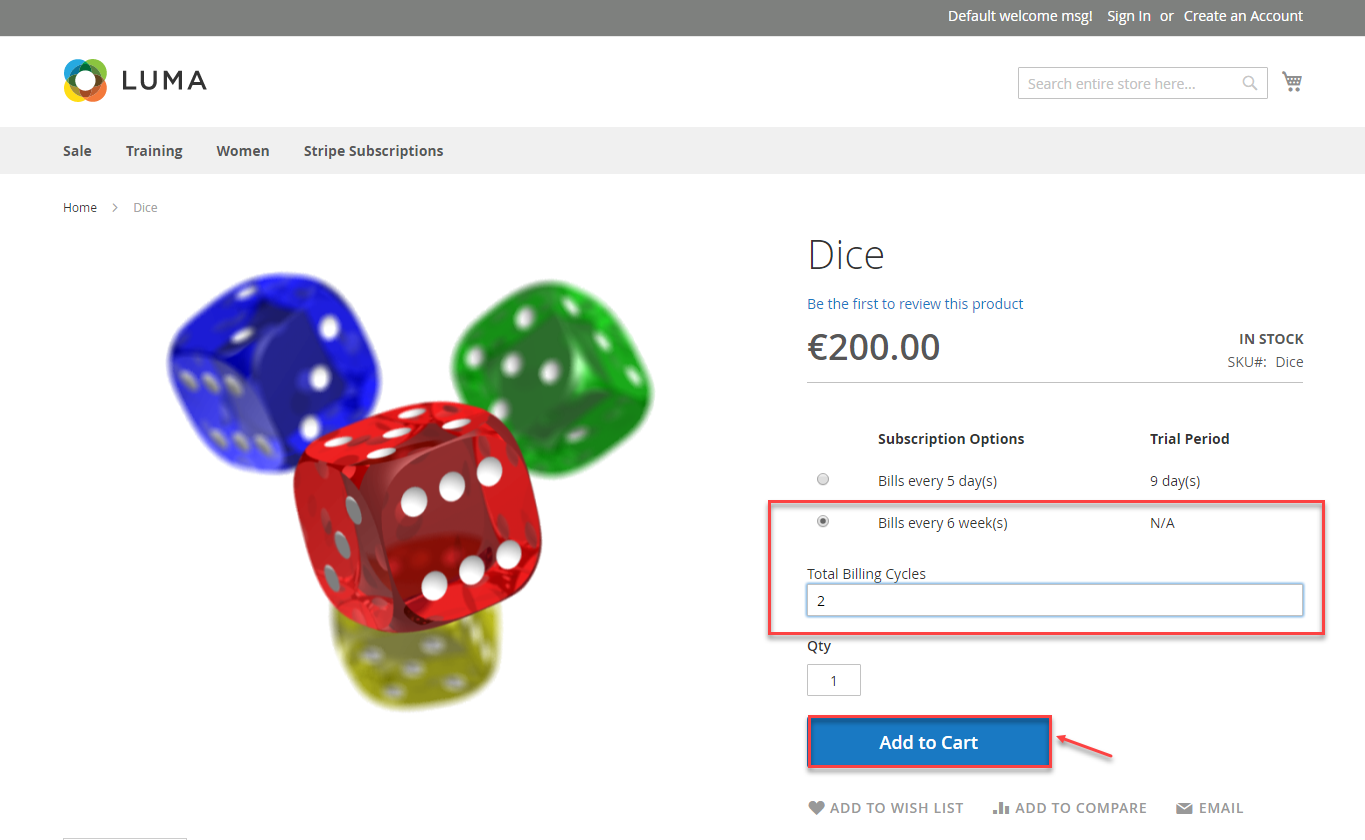

At front end, customers will need to choose a stripe subscription type and click on Add to Cart button.
NOTE: For the cart that contains the subscription product, we currently support this cart with only one subscription product.

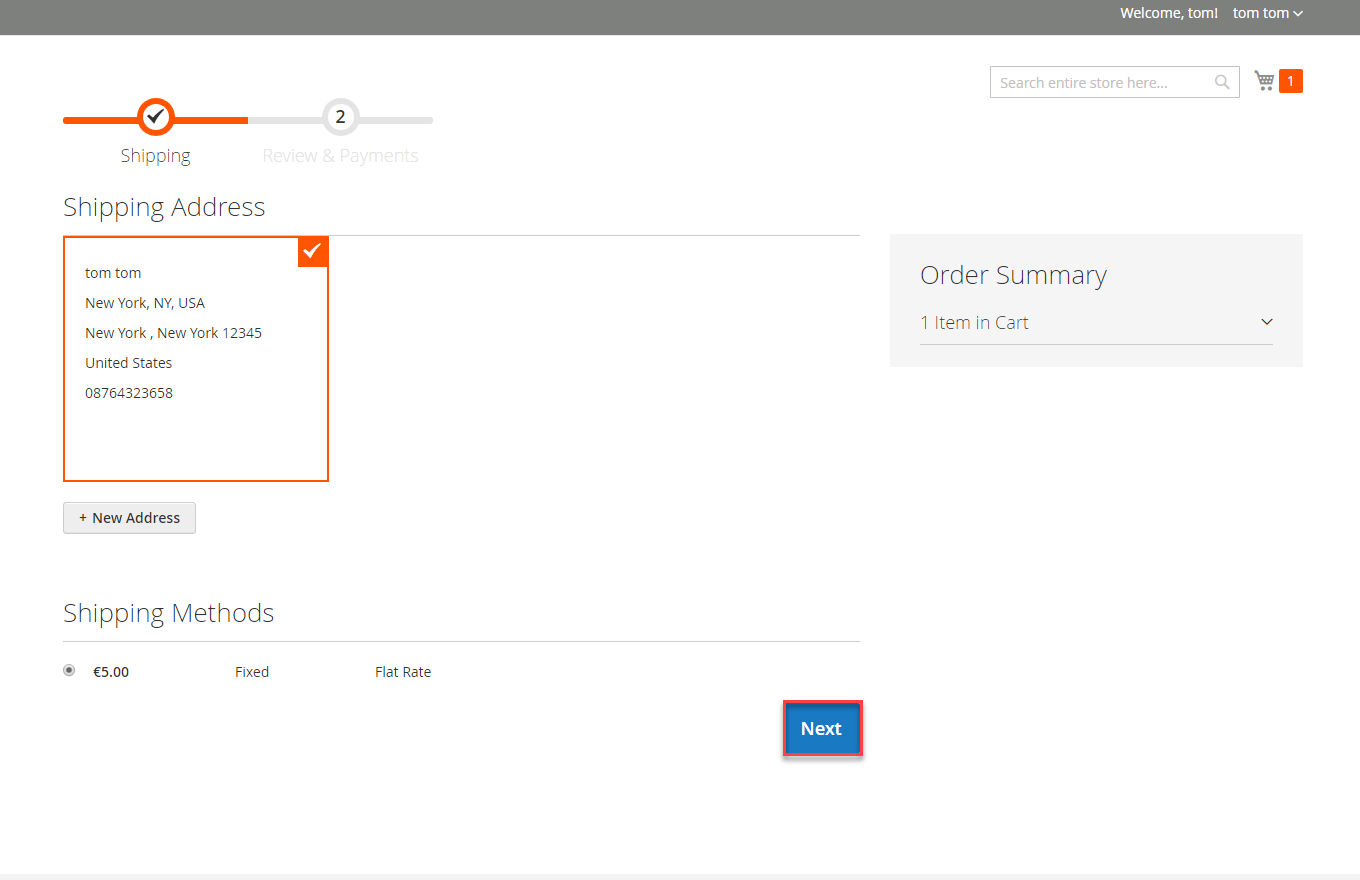

Then, go to checkout and select Stripe Credit Card Payments or Stripe Checkout Iframe instead of Check/Money Order.

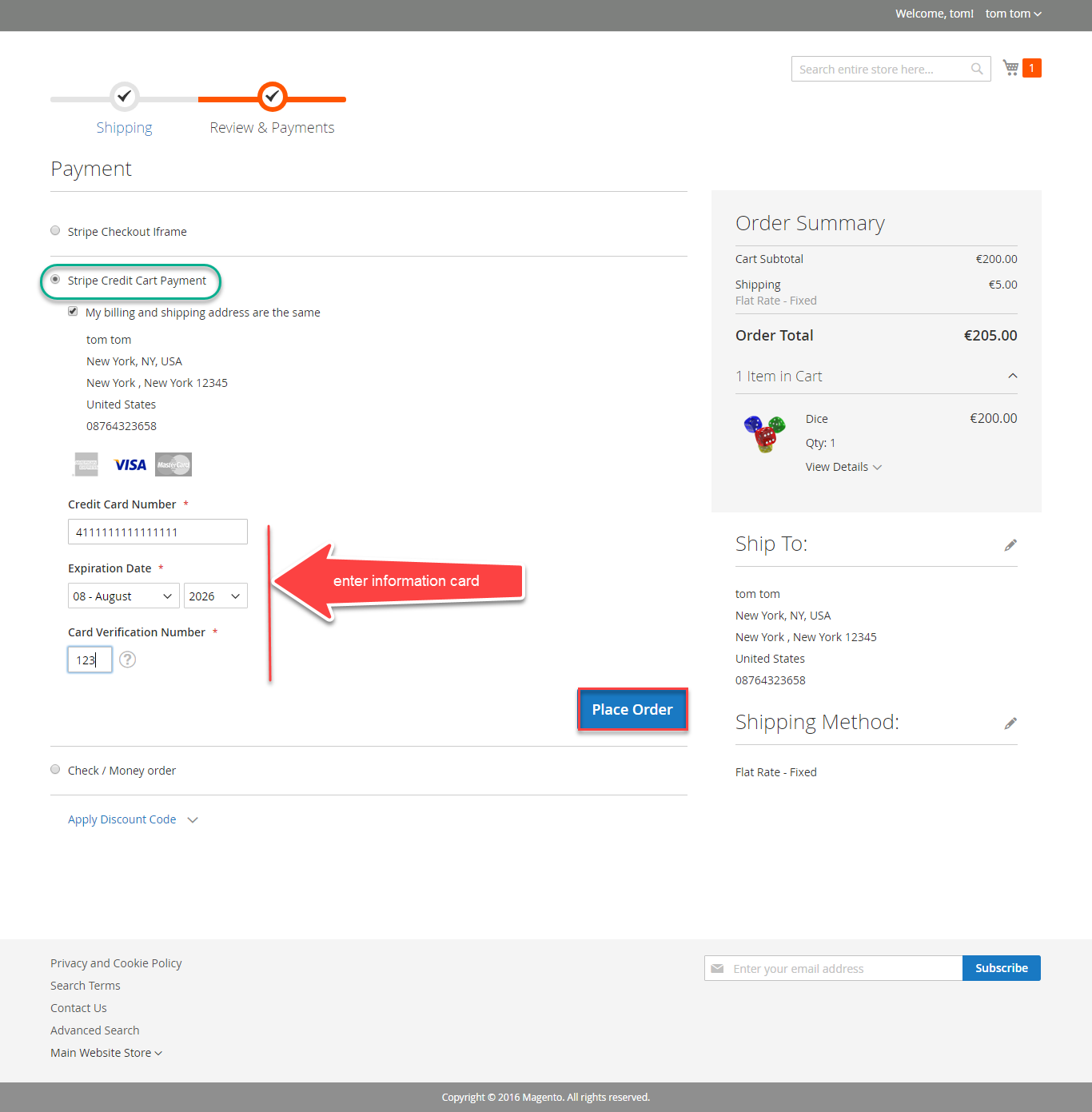

Paying with Stripe Credit Card Payment:

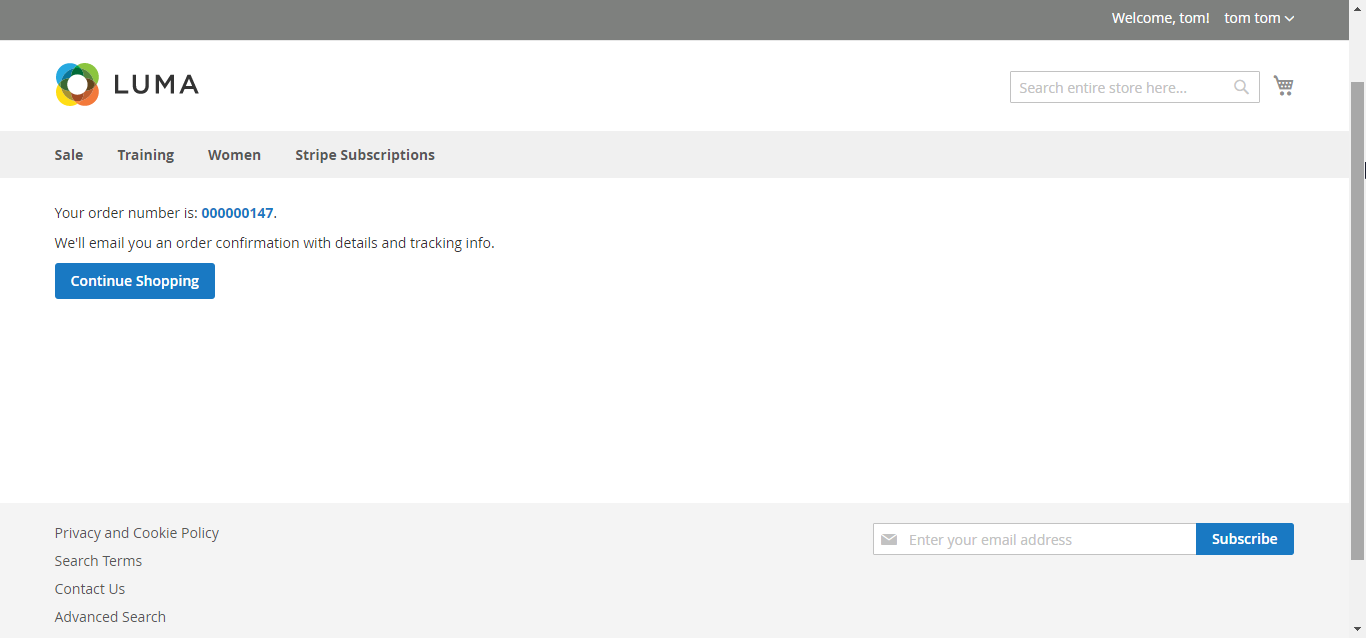

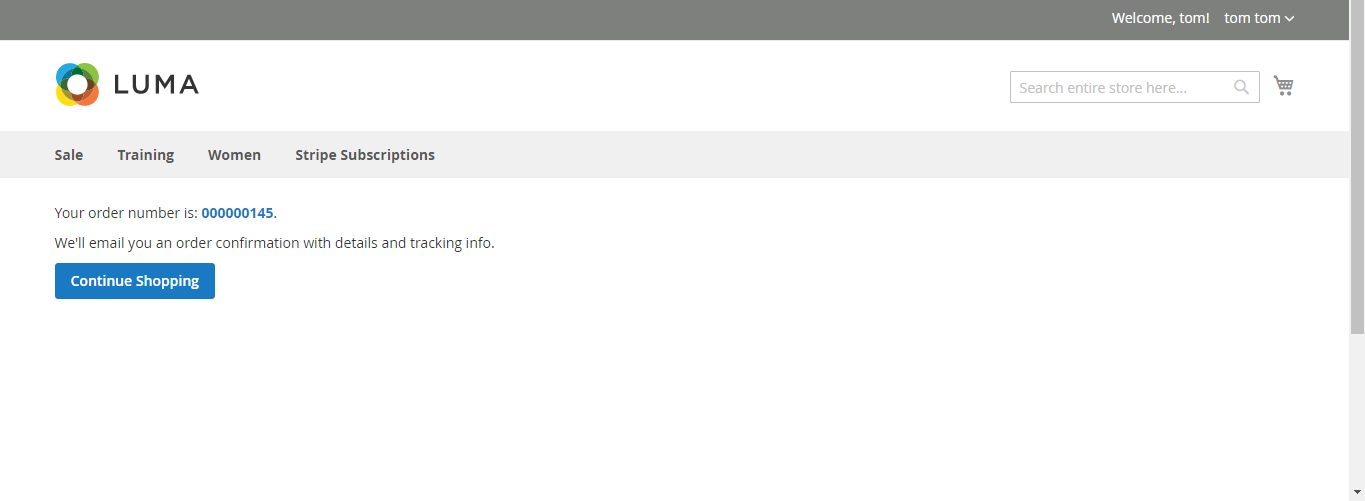

The system will inform order number of the customer in home page and send email to confirm via email. Payment is successful!

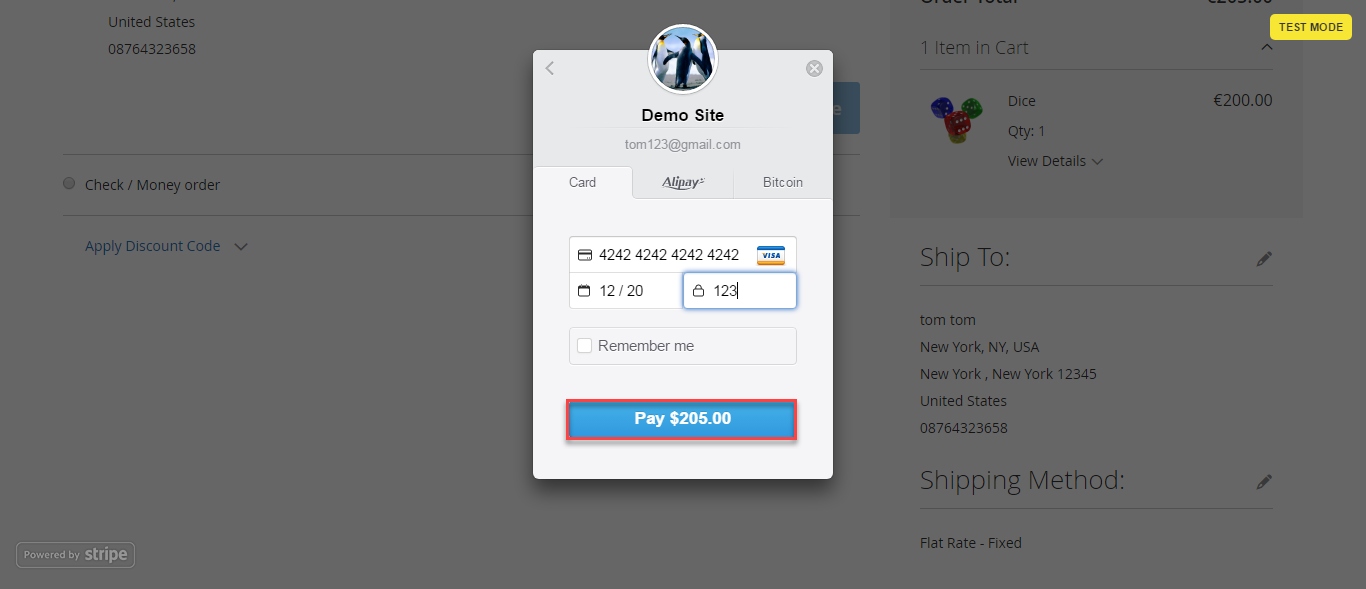

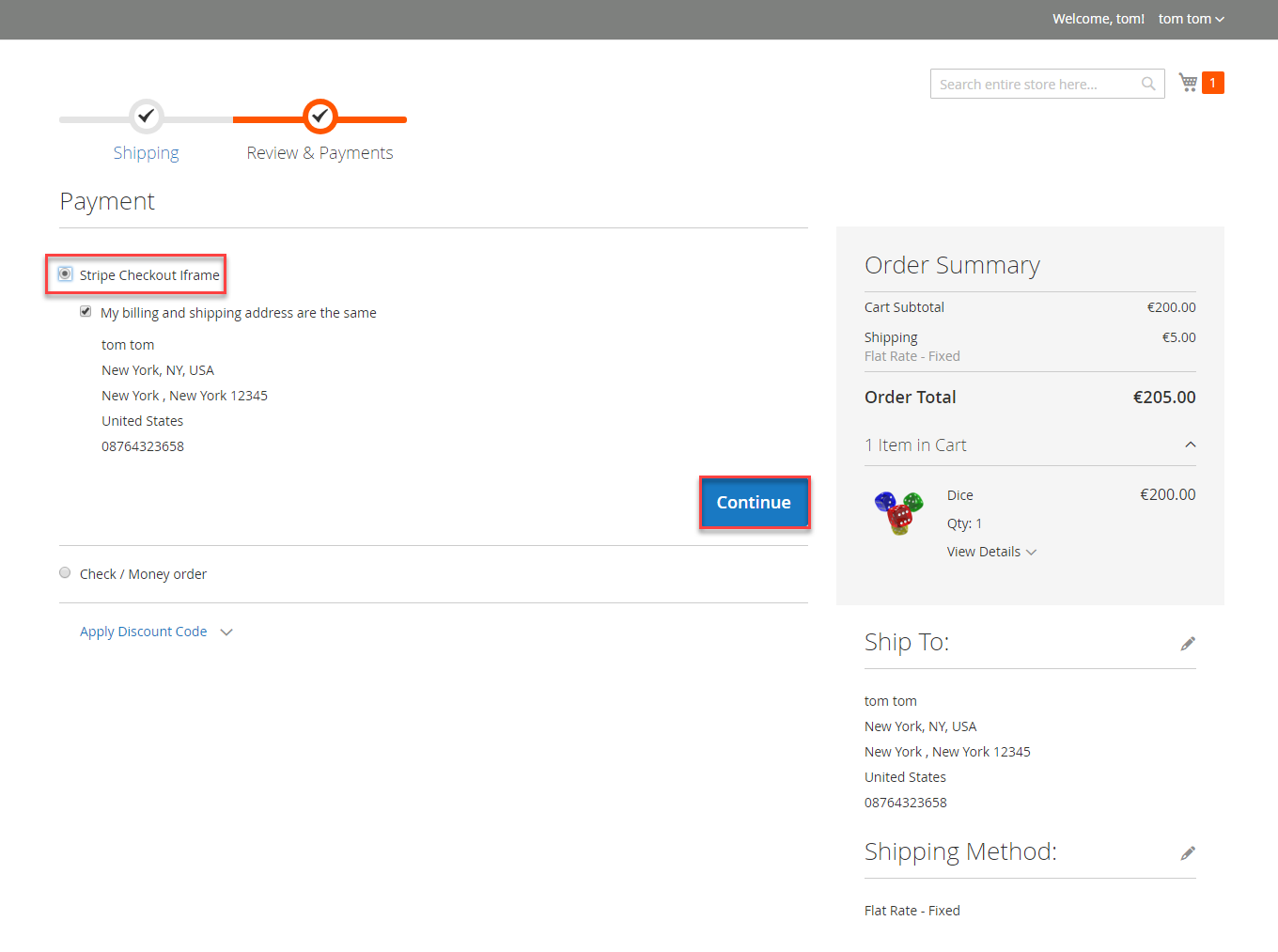

Paying with Stripe Checkout Iframe:

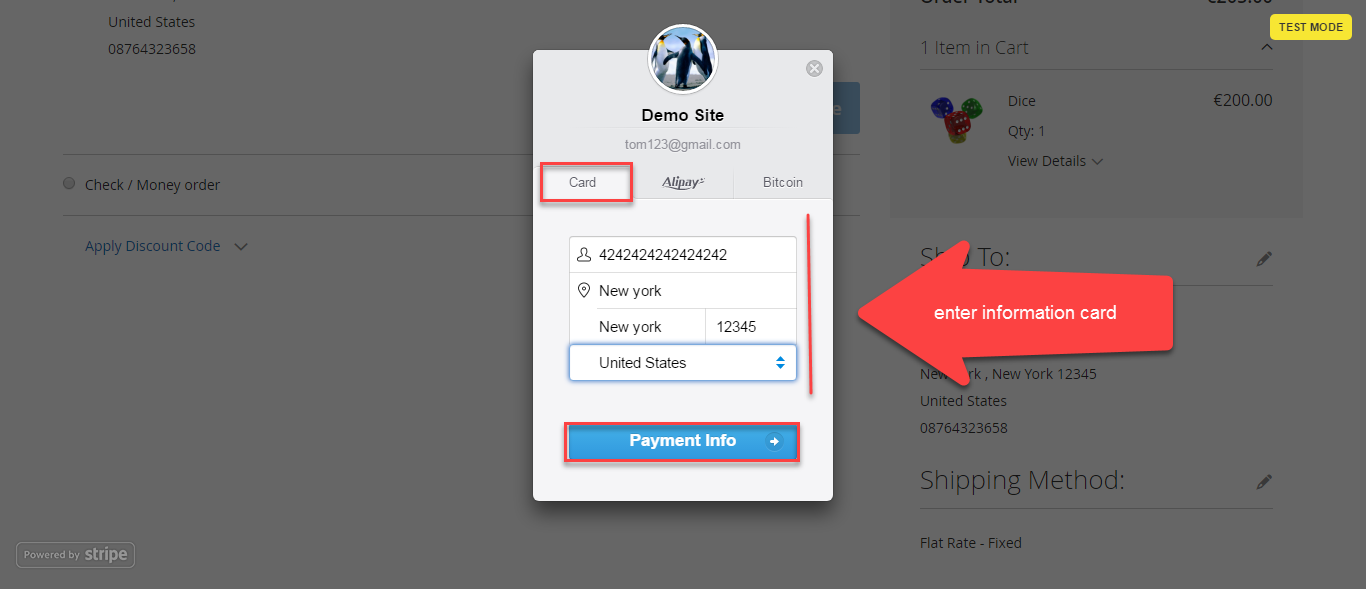

Demo Site payment form is displayed:

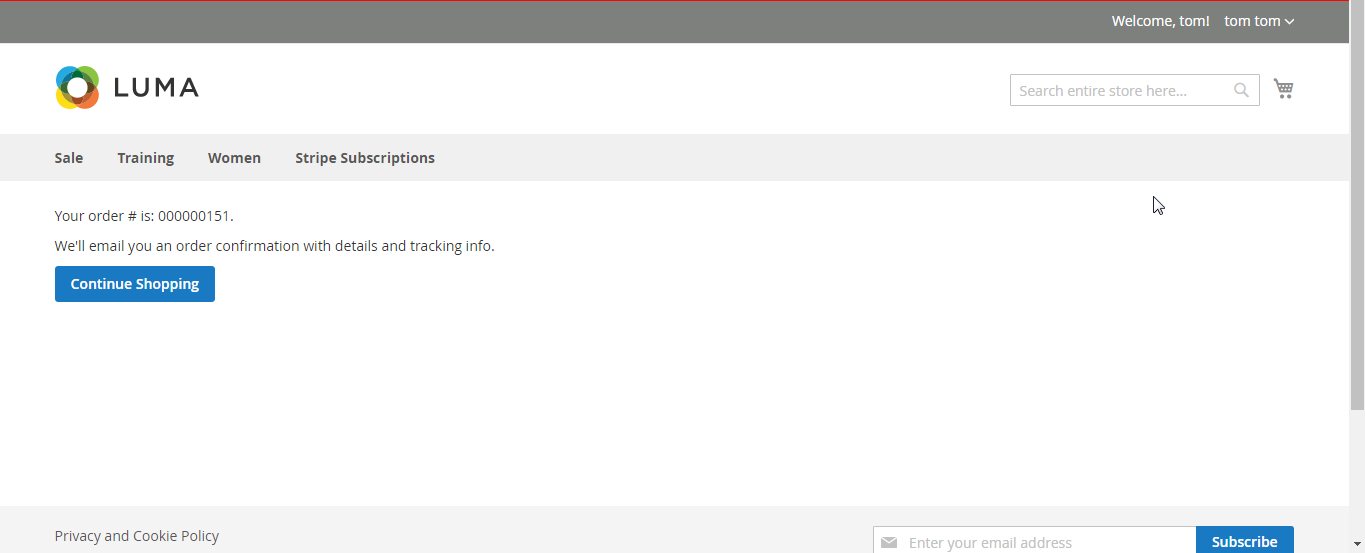

The system will process and send inform to Magento.

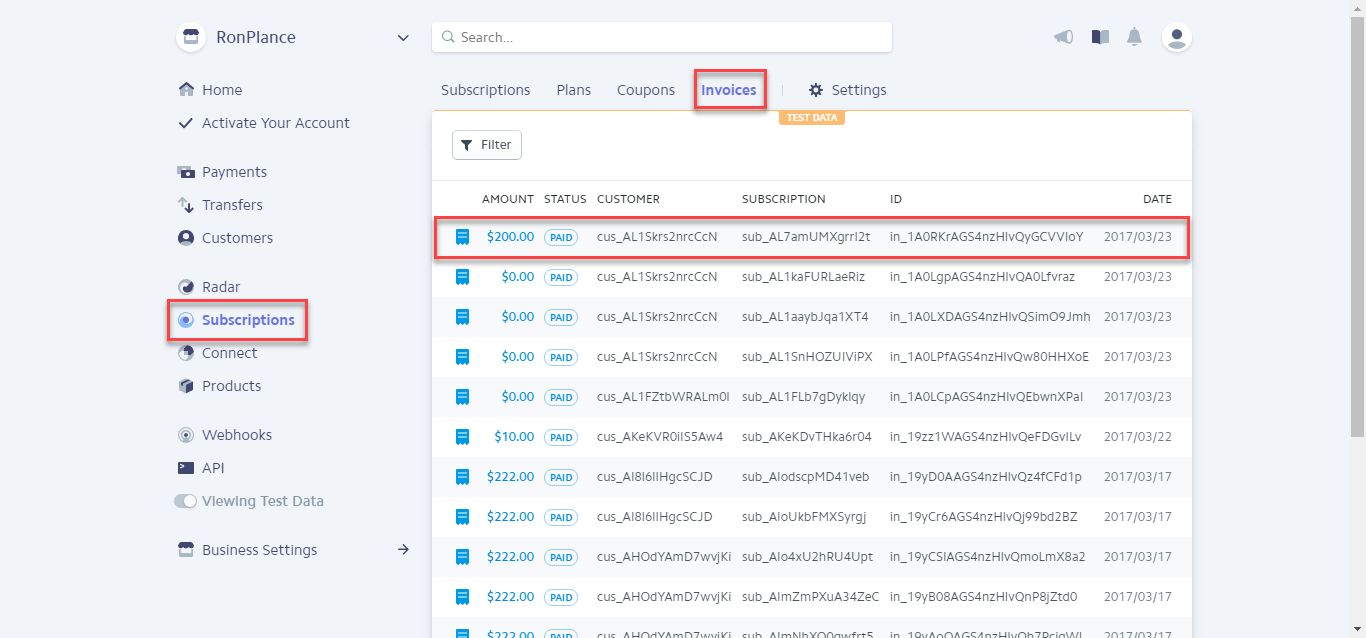

After successful payment, at Payments tab of Stripe, the order will be updated corresponding with two options when admin set at Configuration.
With Subscription product, both Authorize Only and Authorize and Capture return the same status as Paid
For Non-Subscription Product
When customer buy items without subscription product, they will normally pay using credit card. Then, data will also automatically updated at Stripe.
Easily Checkout Using Credit Card
Authorize Only:

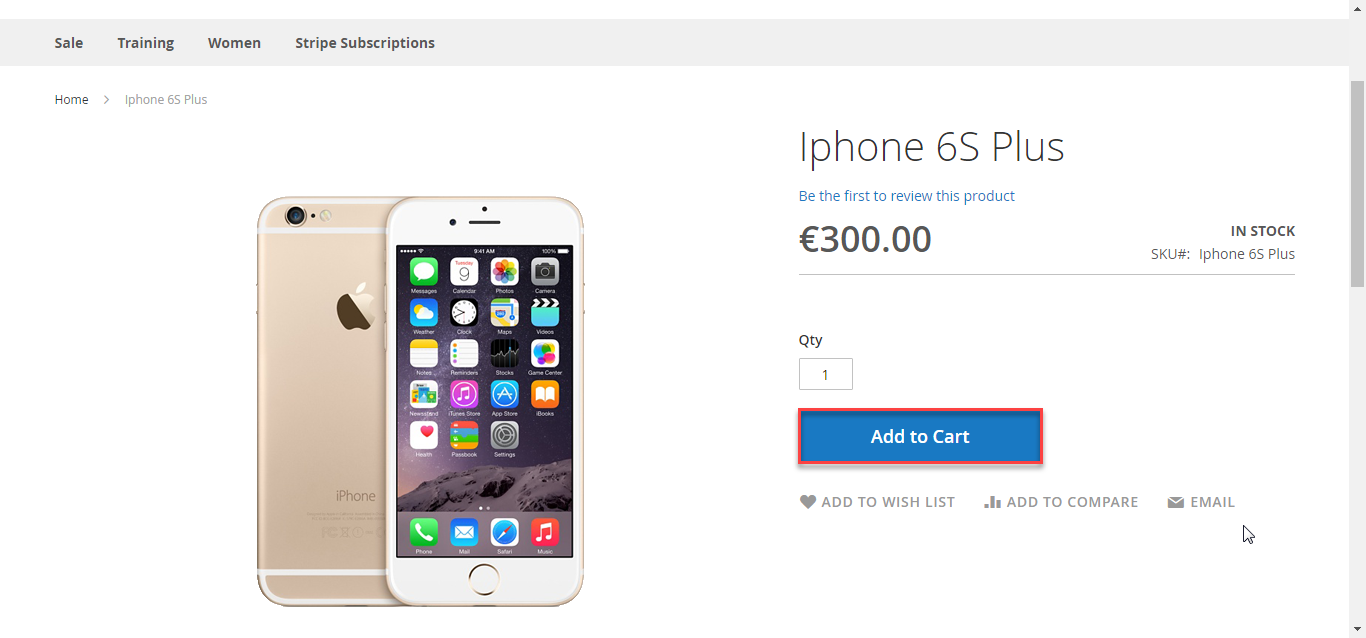

At front end, customer will need to choose a stripe subscription type and click on Add to Cart button.

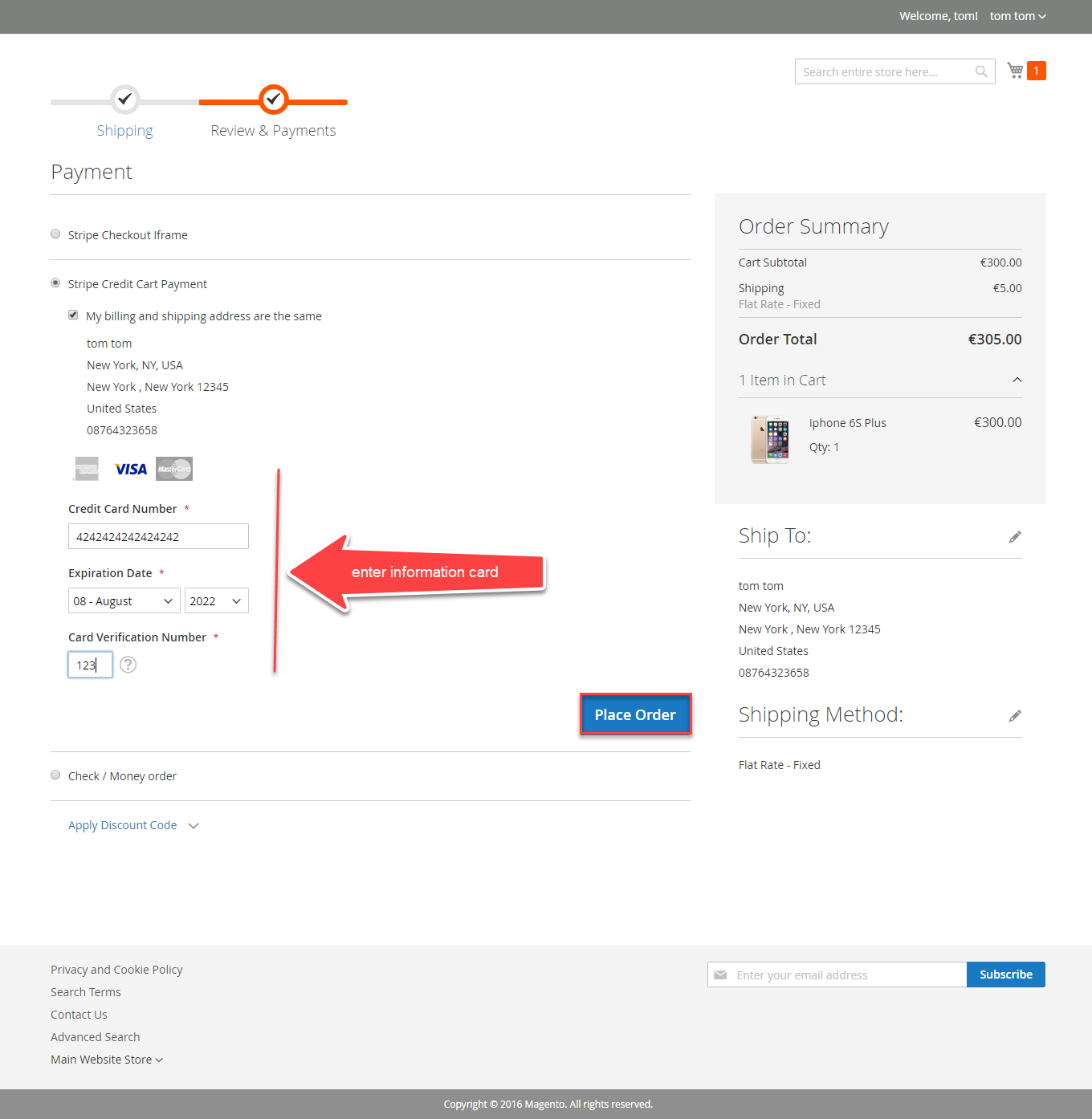

Then, go to checkout and select Stripe Credit Card Payments or Stripe Checkout Iframe instead of Check/Money Order.
The system will inform order number of the customer in home page and send email to confirm via email. Payment is successful!

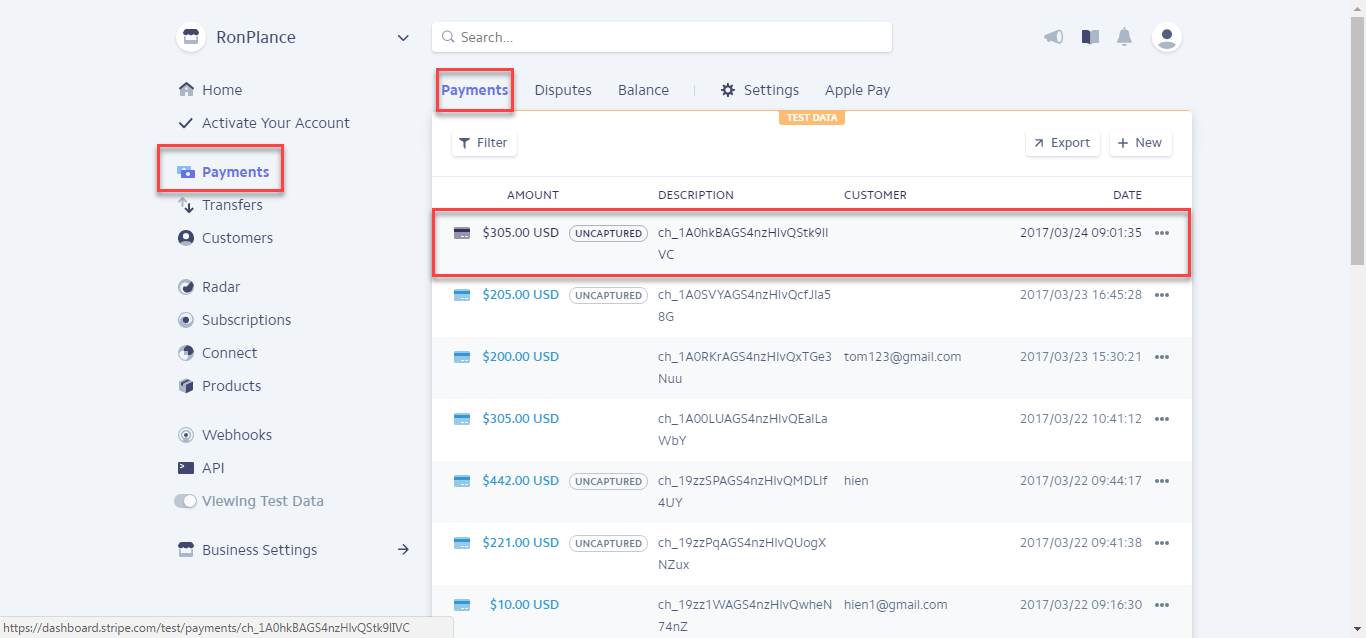

After successful payment, at Payments tab of Stripe, the order will be updated corresponding with two options when admin set at Configuration.
With non-subcription product, order status will be returned both Capture and Uncaptured

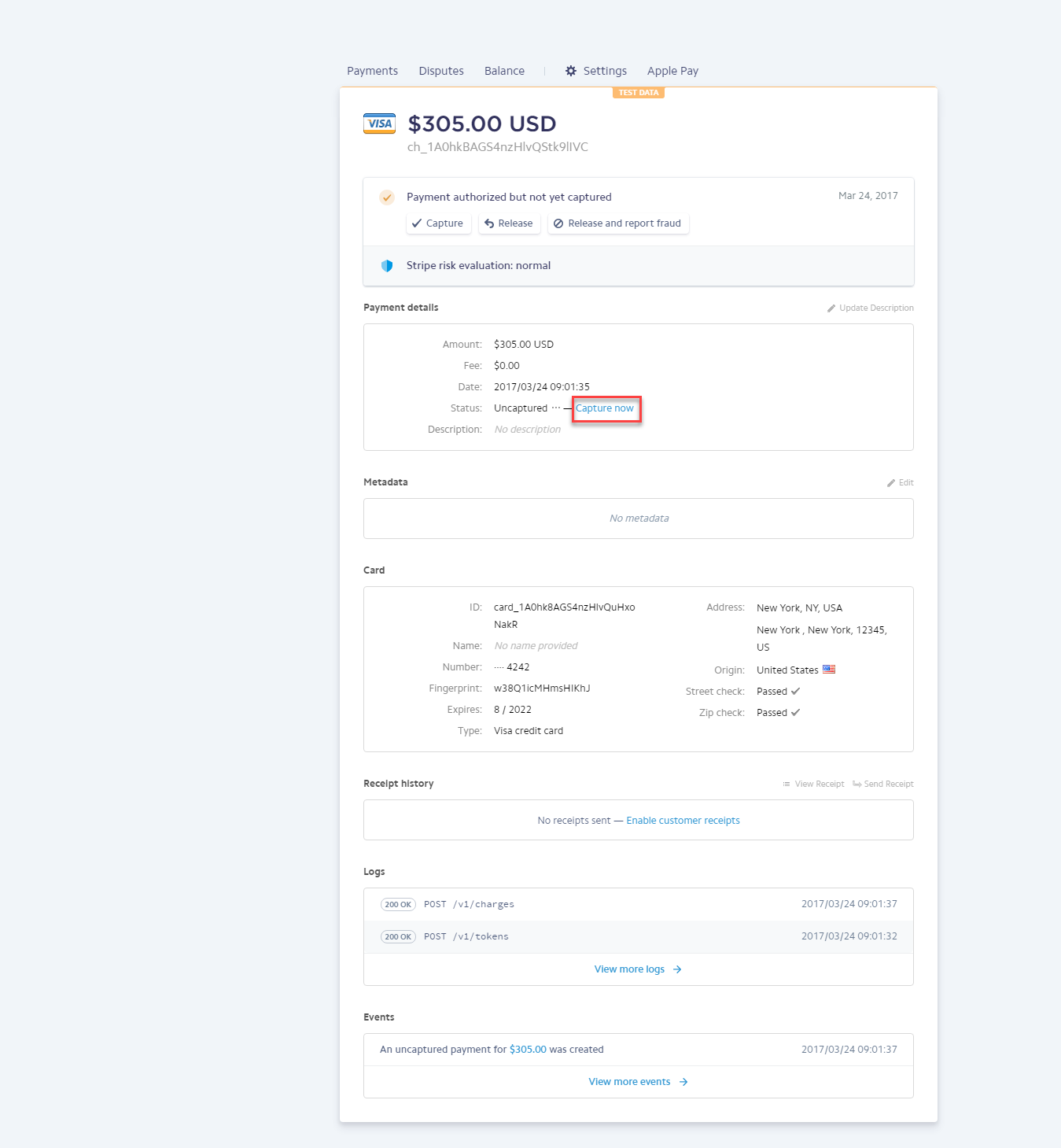

In this case, you click Uncaptured and click Capture button.

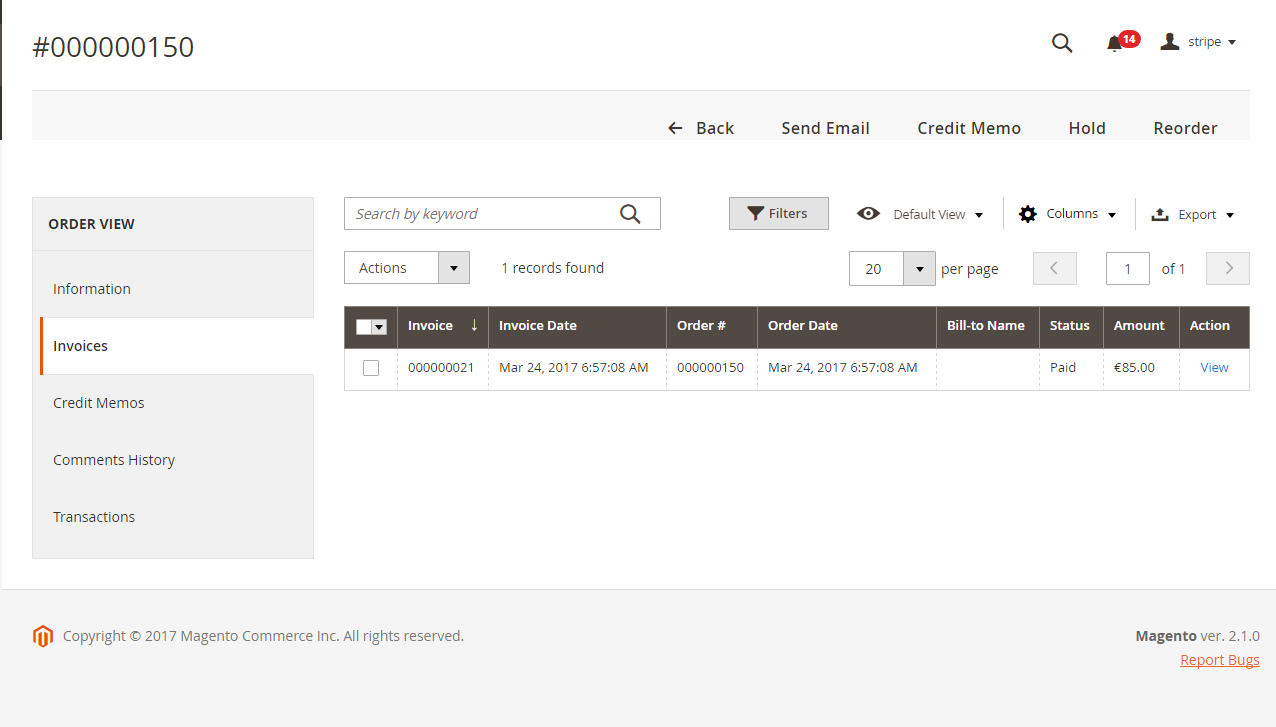

Invoice of transaction will be generated.

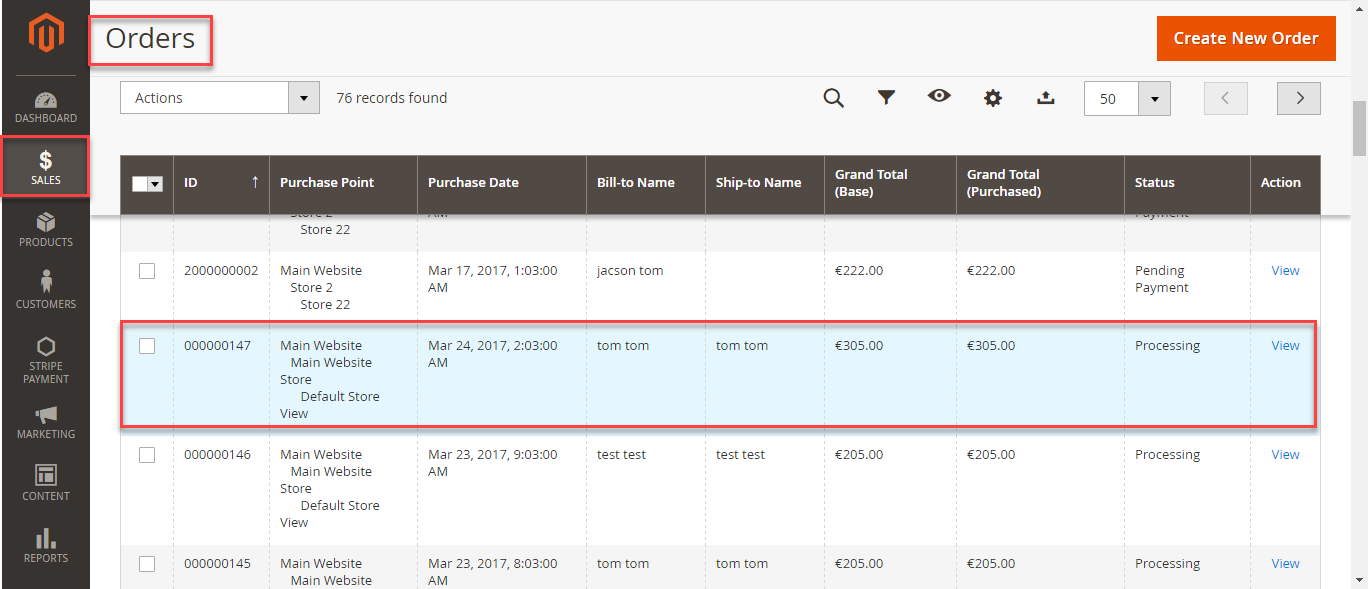

To View Orders, click Sales->Orders

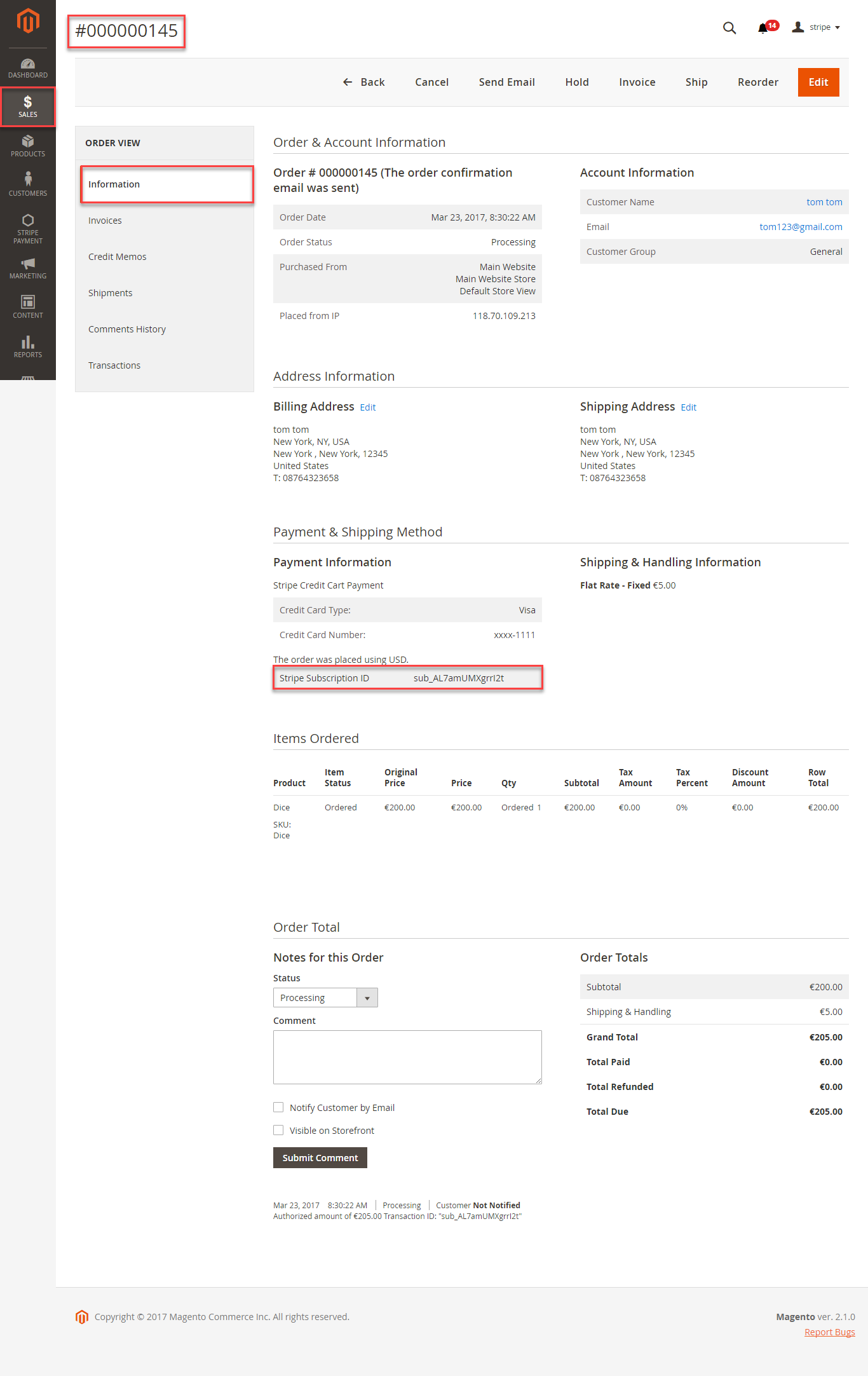

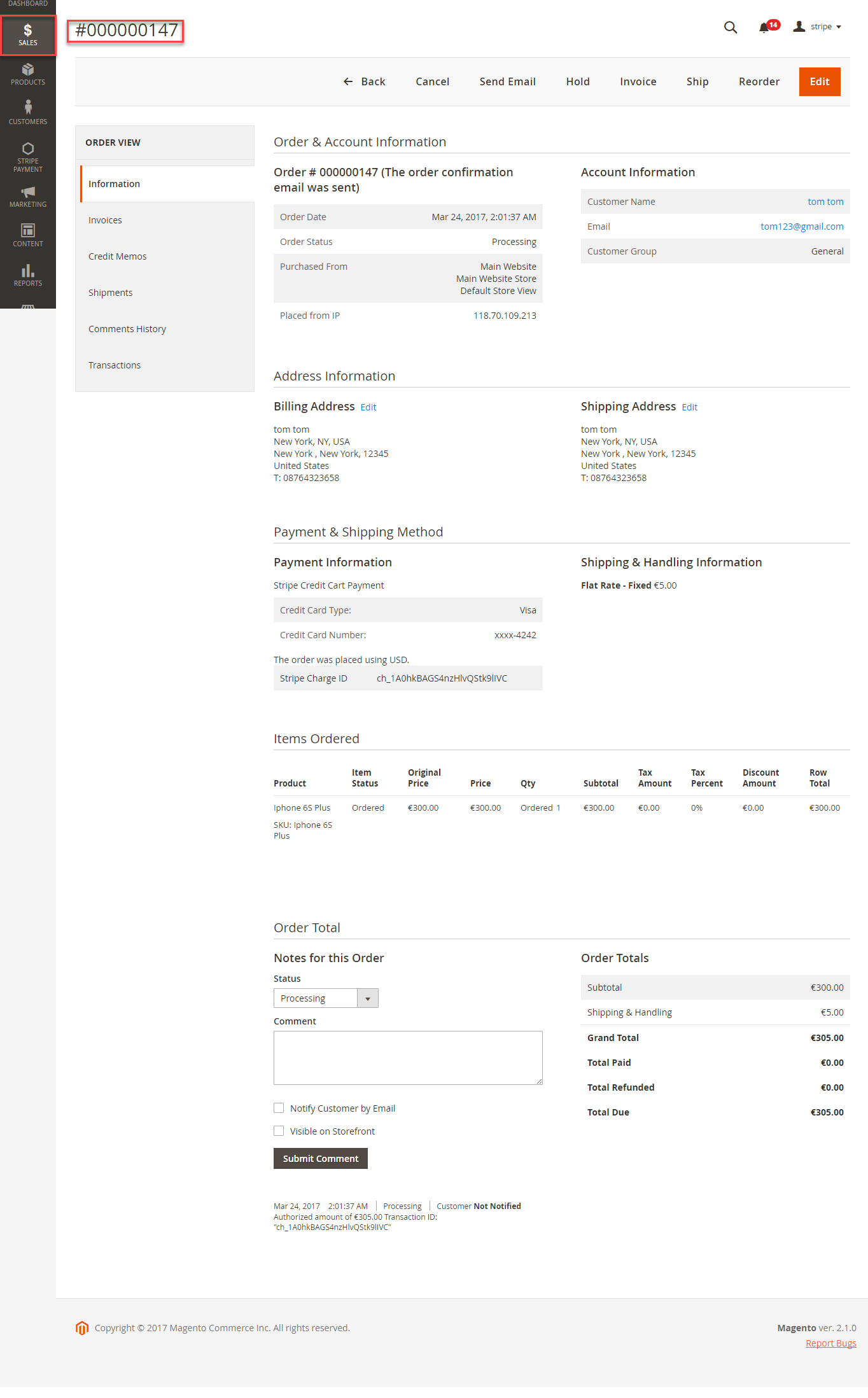

Press View. Apearing Order detail:

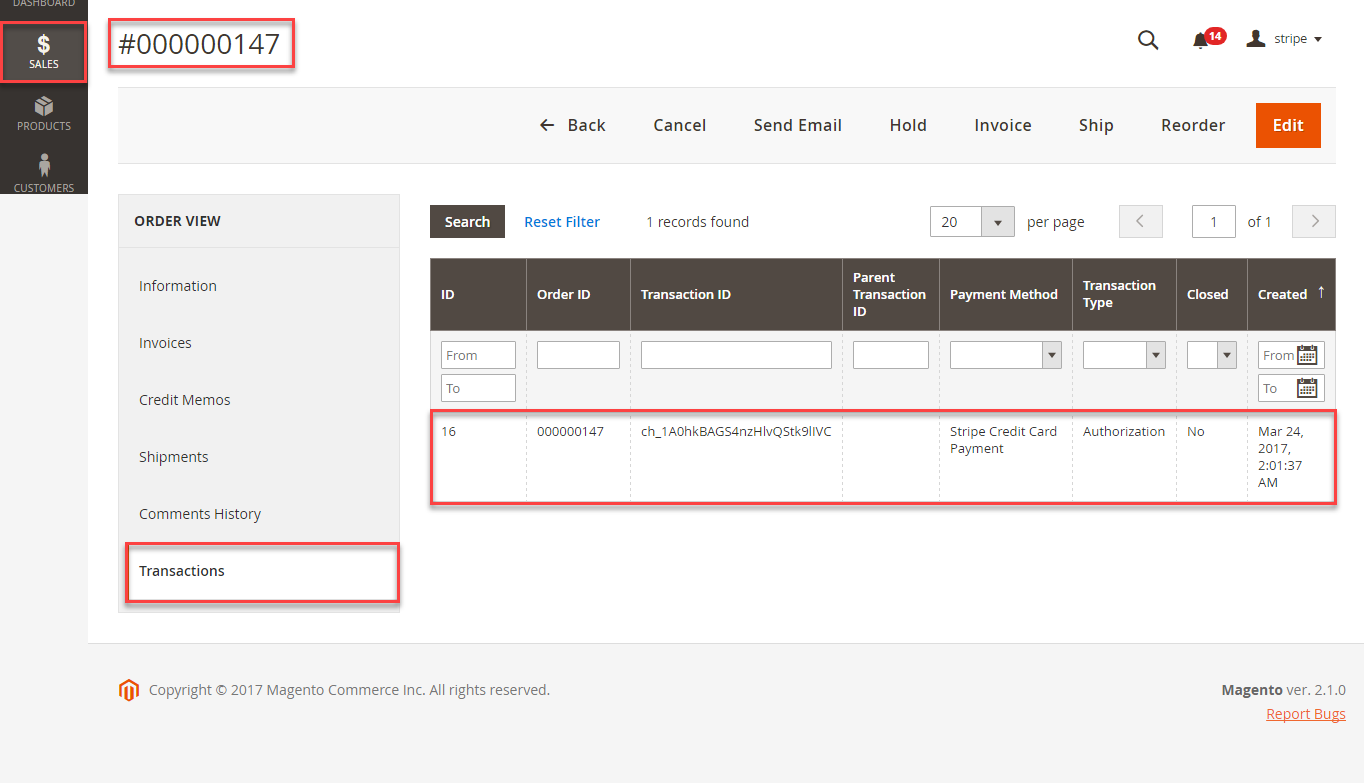

Customer can click Transactions to view total transactions
- Authorize and Capture:

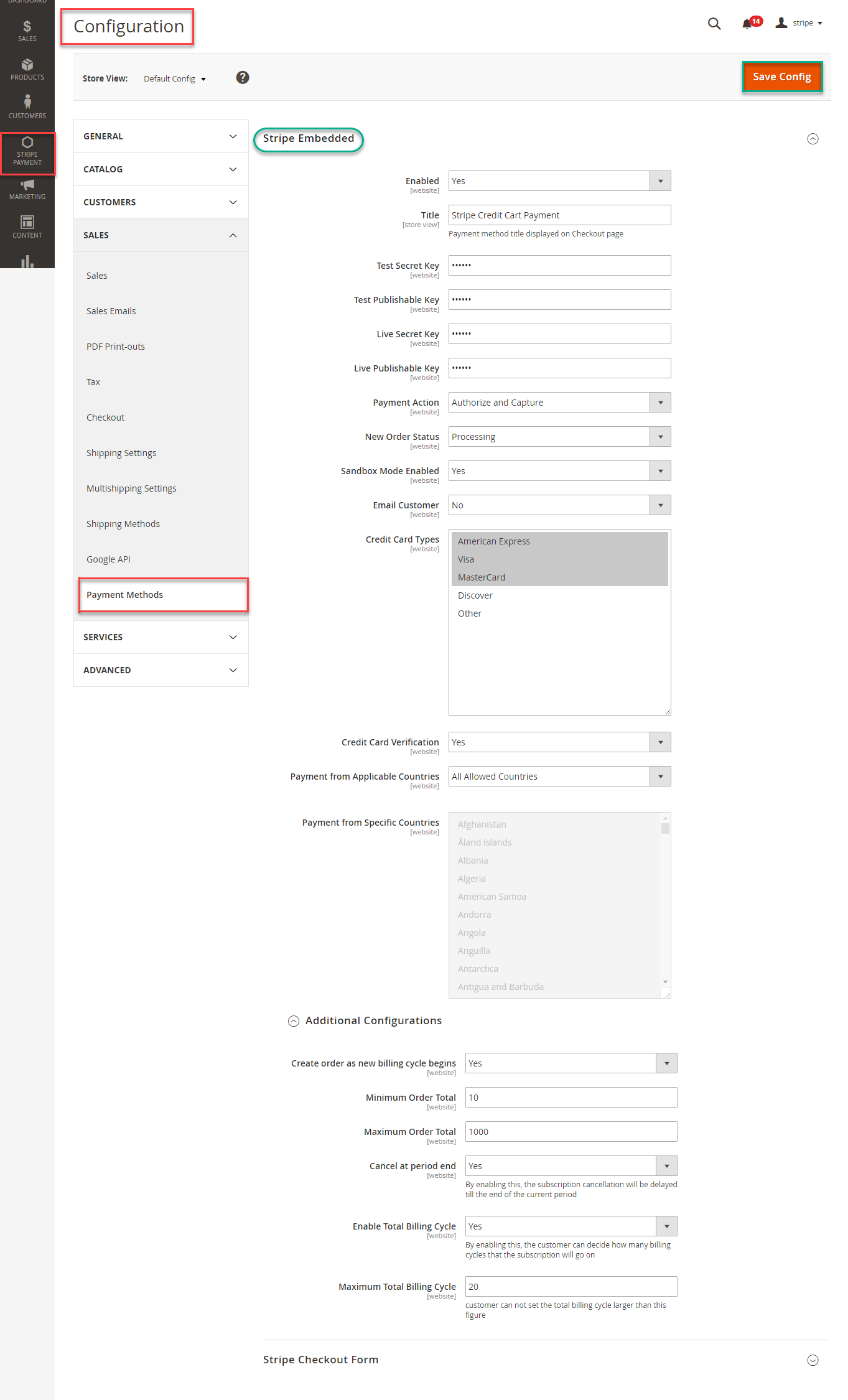

Set up configuration such as below table:

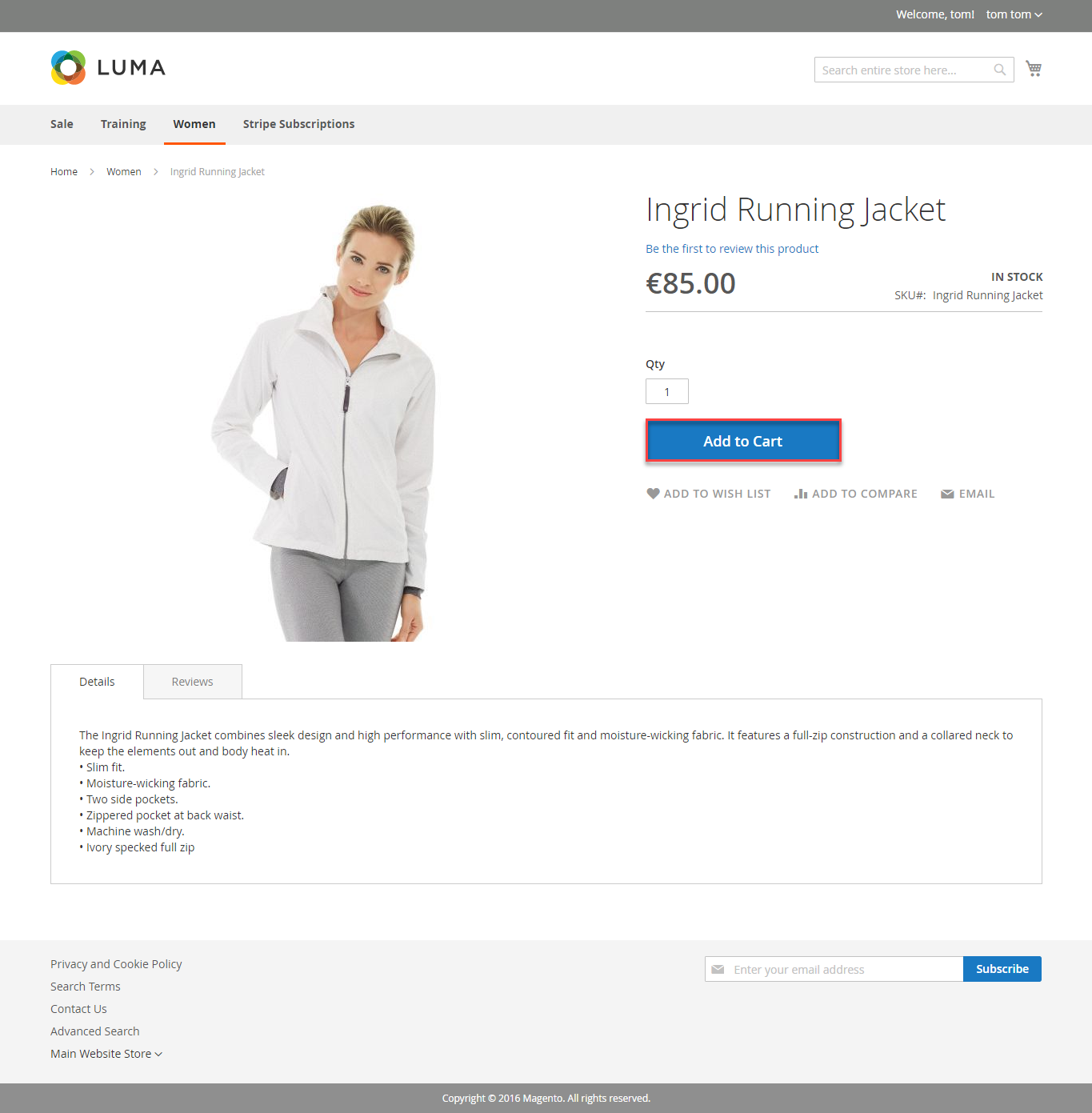

At frontend, customer will need to choose an item and click on Add to Cart button.

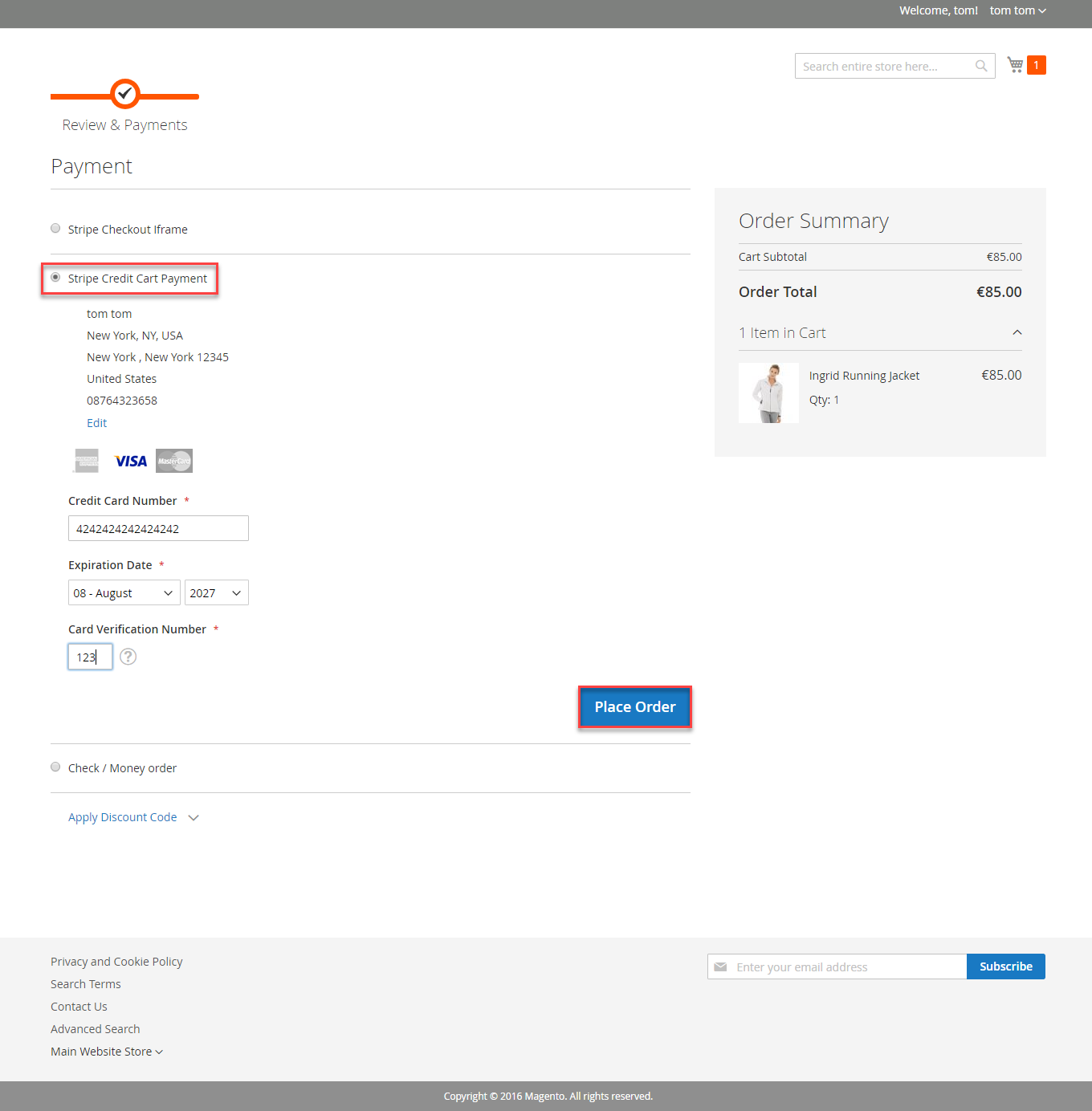

Then, go to checkout and select Stripe Credit Card Payments or Stripe Checkout Iframe instead of Check/Money Order.

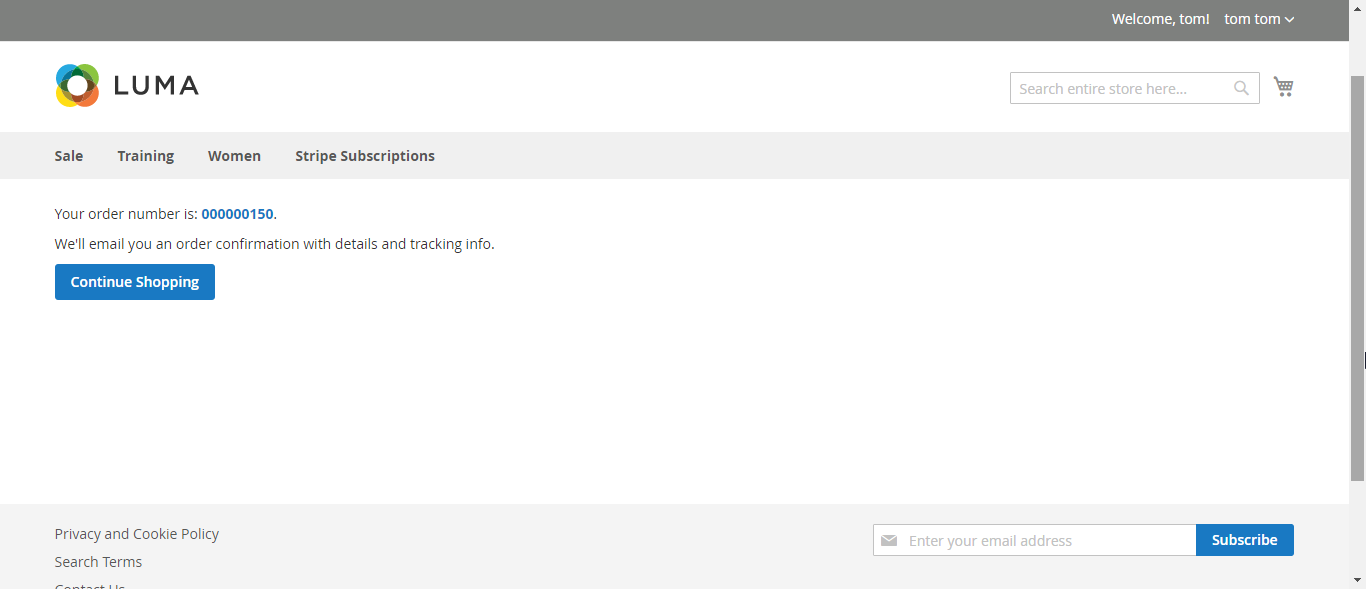

The system will inform order number of the customer in home page and send email to confirm via email. Payment is successful!

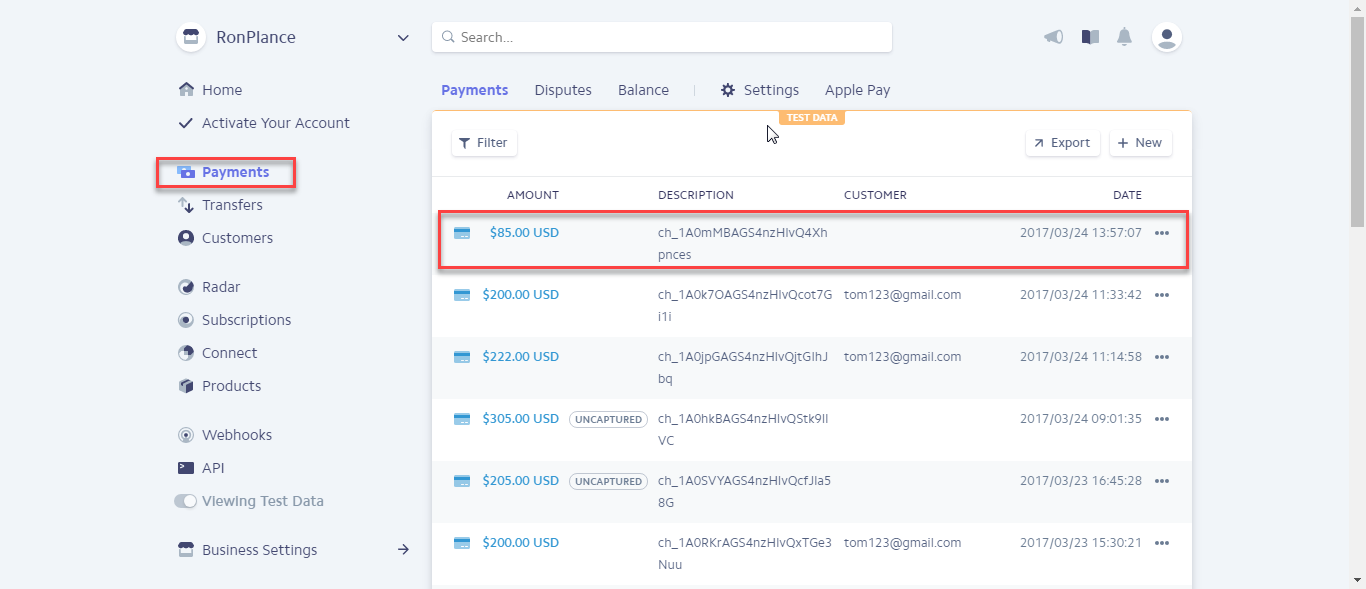

After successful payment, at Payments tab of Stripe, the order status will be updated.
When customers want to refund, you click Sales->Invoices-> Credit Memo->Refund
The customer can view refund by navigating to Sales > Credit Memos.

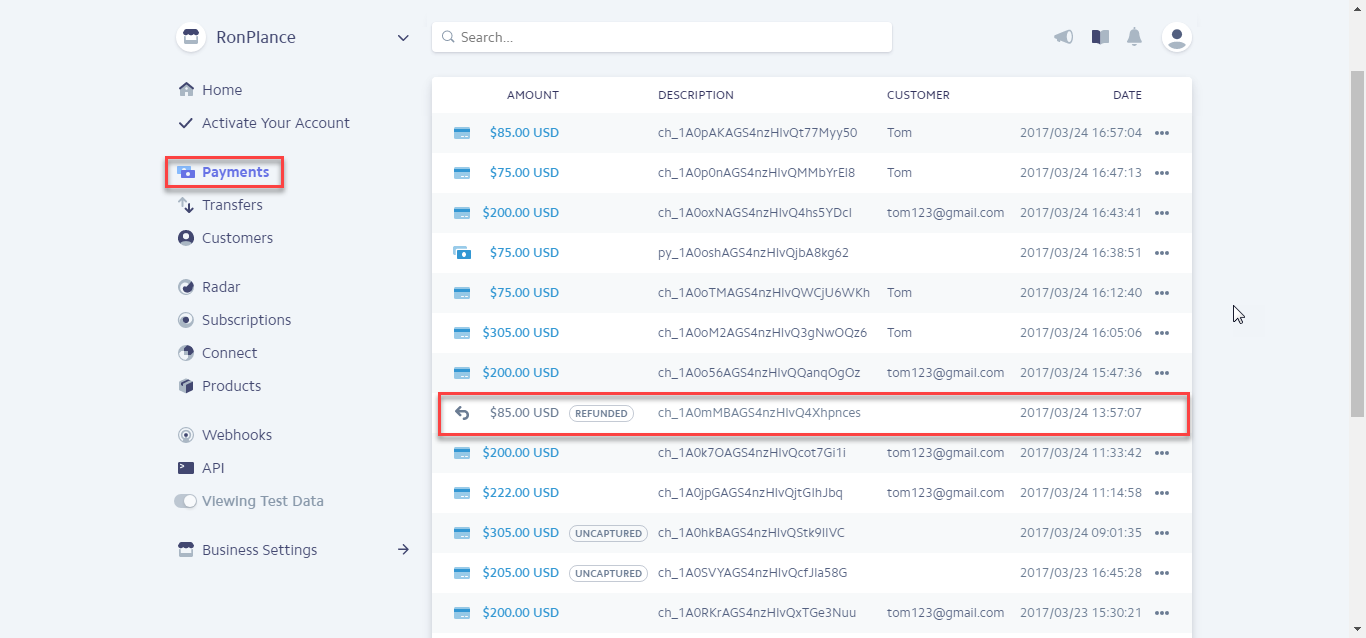

After the order is refunded, at Payments tab of Stripe, the status order will be updated.
- Manage Stripe Subscriptions

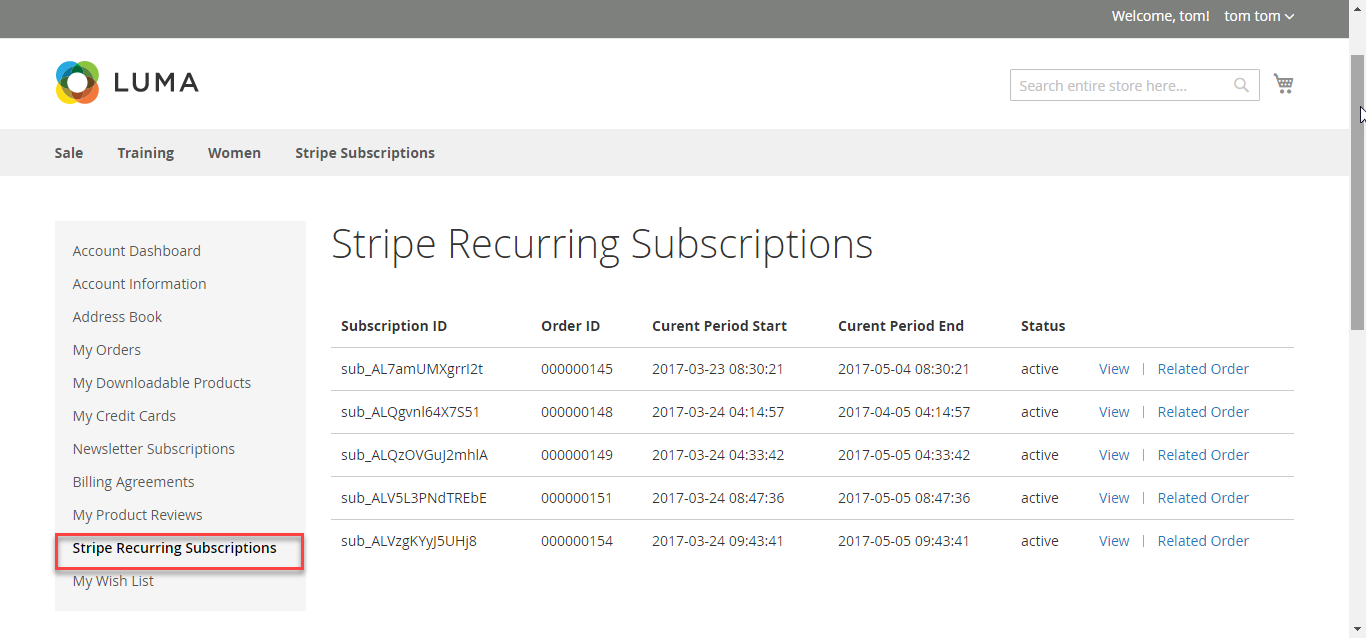

Customers can easily view and manage all of things related their subscriptions by clicking on My Account > Stripe Recurring Subscriptions.
Update
- When a new update is available, we will provide you with a new package containing our updated extension.
- You will have to delete the module directory and repeat the installing steps above.
- Flush the config cache. Your store and newly installed module should be working as expected.
