Thank you for purchasing our extension. If you have any questions that are beyond the scope of this document, do not hesitate to leave us an email via our email address below.
Created: 08/11/2016 | By: Magenest | Support Portal: http://servicedesk.izysync.com/servicedesk/customer/portal/22
Introduction
Stripe Payment Gateway And Subscription extension by Magenest is the ultimate tool that provides seamless payment experience between your Magento 2 store and the Stripe Payment Gateway.
Extension's page: Stripe Payment Gateway And Subscription.
Features For Admins
A lot of features is included in the extension that you can tweak to make it best suit your business, including:
Choose between Authorize Only or Authorize and Capture.
New order status.
Email customer.
Allowed credit card types.
Enable CVC verification.
Allowed country.
- Admin can config 3D Secure mode
- Support Save Card function
Easily partial capture invoice.
Conveniently partial or total refund.
Features For Customers
The primary aim of the extension is to deliver the most fluent and effortless payment experience to the customers:
Easily checkout using credit card.
Manage subscriptions.
System Requirements
Your store should be running on Magento 2 version 2.0.x and 2.1.
Configuration
Set Up Stripe Online Account
You need to have a stripe account to use our extension. If you have not any stripe accounts, you need to create a new account by clicking on the following link: https://dashboard.stripe.com/register.
Then, choose Create your Stripe account to set up a new account:
If you had a stripe account, you only sign into your account.
After that, click on API at the left corner > API Keys to take API Keys.
Set Up The Integration On Magento 2
At back end, admin need to configure some fields to connect between your Magento site and the stripe account.
Firstly, admin click on Stores > Configuration > Sales > Payment Methods.
In addition, admin can set information for: Title, Secret Key, Publishable Key, Payment Action, New Order Status, Sandbox Mode Enabled, Email Customer, Credit Card Types, Credit Card Verification, Payment from Specific Countries.
We recommend two methods that customers can choose to checkout with Stripe: Stripe Embedded and Stripe Checkout Iframe.
In our example, we use test mode so we will fill test publishable key and test secret key to config between Stripe and Magento 2.
Payment Action: Authorize and Capture:
Authorize Only( Authorisation): will check the card for validity but not charge the account until the order is approved and invoiced.
Authorize and Capture(Sale): will charge the debit/credit card at the time of the order submission.
New Order Status: Processing
Enable save card: Yes to turn on Save Card mode
Enable 3D secure: Yes to turn on 3D secure mode.
There are some notices for 3D secure that we have noted below tool tip. Please read carefully before choosing set up mode.
Off: Disable checking for 3D Secure support
Check when required: Only performs 3D Secure test when it is required by customer’s ban
Optional 3D Secure: Performs 3D Secure test when it is supported by bank. If 3D Secure is not supported, the card will still be charged as usual
Required 3D Secure: Always check for 3D Secure and stop the payment if it is not supported.
New: Three payment methods have been developed for Stripe: Apple/Google Pay, Giro Pay, Alipay.
We have connected fully in Stripe configuration before. Customer only enable method to use checkouting in frontend page.
When done, please press Save Configuration , your configuration is ready to use.
Note: This direction can be applied with all Subscription product and non-subscription product.
Main Functions
For Subscription Product
Create a subscription product
To create a subscription product, admin click on Products > Catalog and choose a product type.
Then, the New Product page will be shown. Regarding the Stripe Payment and Subscriptions extension, admin needs to consider two tabs named Stripe Subscription and Stripe Subscription Billing Options.
At Stripe Subscription tab, admin will set whether a product is a stripe subscription product or not.
+ YES: This product will be shown as a stripe subscription product at front end. This means this product's plans which were set at the Stripe Subscription Billing Options tab will be shown with this product at this product detail page (e.g. Plan ID, Billing Frequency ...). Customers will choose one of them and payment.
+ NO: This product will be shown as a simple product (don't show this product's plans, it will be hidden).
- At Stripe Subscription Billing Options tab, admin will need to set plans if they wish it is a subscription product. There are some fields that admin need to set, include:
+ Plan ID.
+ Period Unit: Select one of the period units (Day, Week, Month, Year).
+ Billing Frequency.
+ Trial Period: Yes/No (Whether the product have a trial version or not). If admin choose Yes, they can define the period time allowing customer can use free the product according to your wish. If admin choose No, this means this product will not have a trail version.
Also, if admin want to add more plans for a product, they only click on Add Option button. Then, admin can add the same as above.
Please click on Save button to complete.
At the same time, your stripe account will also automatically sync a product corresponding with the subscription product created at Plans tab.
View And Manage Stripe Payment
We created a Stripe Payment tab which allows admin can view and manage all of things Stripe Order.
There are two tabs, includes:
- Settings
With the Settings tab, we provide admins with the fastest way possible to access to Stripe Payment Settings.
- Subscription Manager
Go to Subscription Manager tab, admin will see the list of orders regarding the subscription products.
Admin can view and manage some information such as: Order ID, Subscription ID, Start Date, End Date and Status an easy way.
To view more detail, please choose a order that admin consider and click on View.
To view more details, admin clicks on the order that admin wants to consider such as Stripe Subcription ID
Easily Checkout Using Credit Card
At front end, customers will need to choose a stripe subscription type and click on Add to Cart button.
NOTE: For the cart that contains the subscription product, we currently support this cart with only one subscription product.
Then, go to checkout and select Stripe Credit Card Payment or Stripe Checkout Iframe instead of Check/Money order.
Checkout with Credit Card Payment:
Customer fill information into checkout form and click Place Order button. The system will process with Stripe and return successful result.
After successful payment, at Payments tab of Stripe, the order will be updated corresponding with Magento.
Checkout with Stripe Checkout Iframe:
Another payment method is Stripe Checkout Iframe. It supports wonderful functions with both Credit card and Bitcoin. Customers can follow the below instruction:
The operation will redirect to new page relative with Stripe Checkout Iframe.
When select Card, customer must fill information before taking paying action.
If you enter your mobile phone number, Stripe will send verify code to confirm and that code includes 6 numbers
Applying with Bitcoin account:
Customers still continues the steps until payment finished successfully.
Checkout with Apple Pay and Google Pay:
Apple or Google Pay is wonderful tool with the IOS and android devices that you use every day.
You can make secure purchases in stores, in apps, and on the web. And now you can send and receive money from friends and family right in Messages. Apple/Google Pay is even simpler than using your physical card, and safer too.
Notice: Below is user guide to display Stripe Payment request button: https://stripe.com/docs/stripe-js/elements/payment-request-button in case your browser can't pay button to transfer.

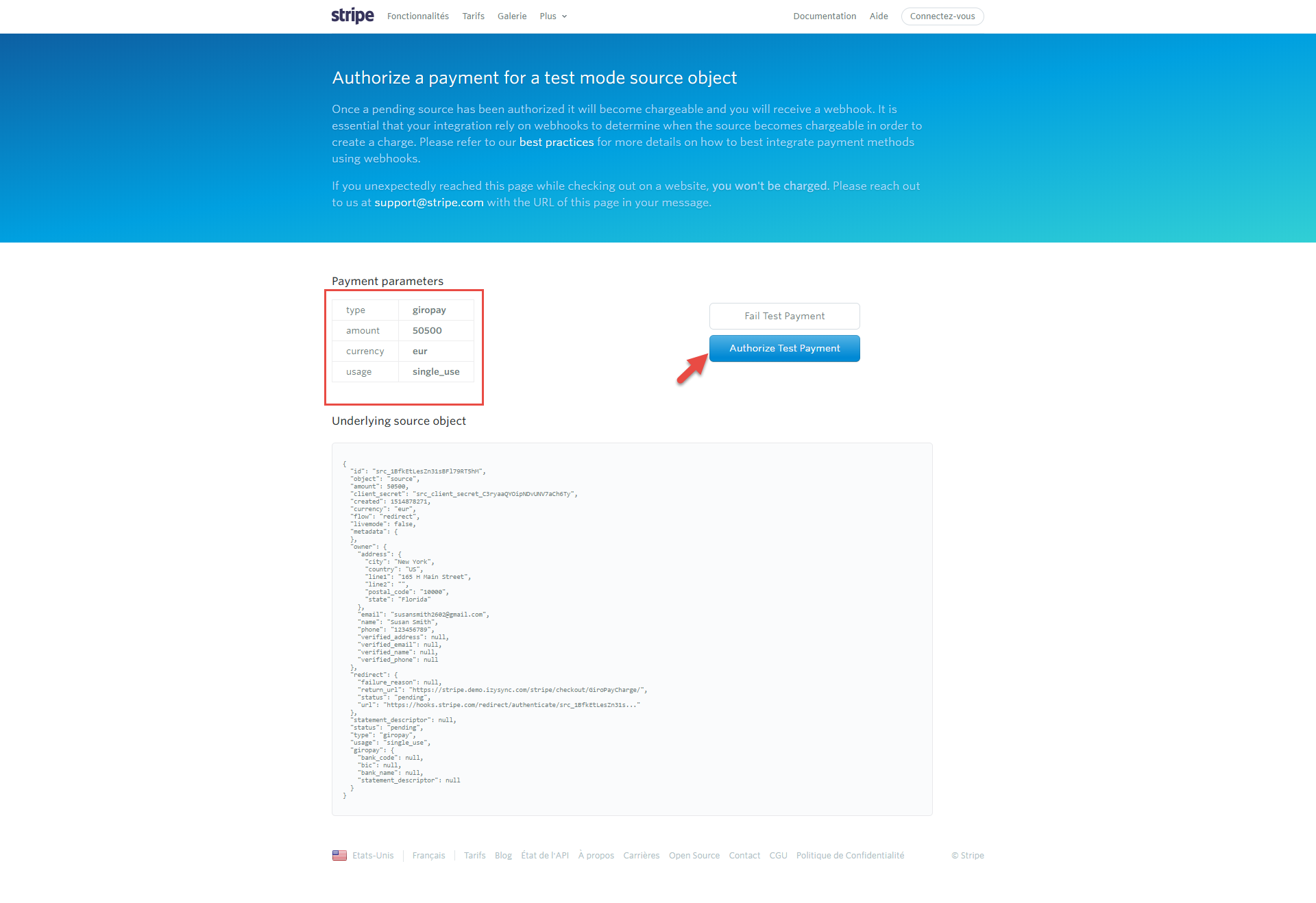

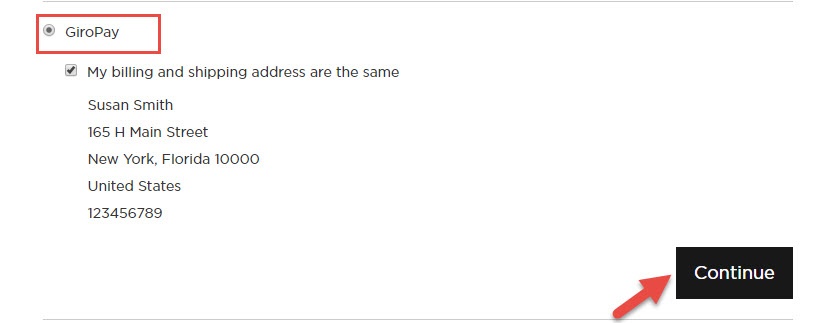

Checkout with GiroPay:
It is very wonderful when Stripe is integrated with GiroPay in this time. A lot of customers from European countries such as Germany, Austria, the Netherlands and Sweden can use Stripe in the convenient way.
Customers do pay using a giro transfer either through the mail or online.
Giro transfers have become a more accepted payment method than checks because they provide security when lost or stolen, and they can be processed more quickly than a standard check.
Checkout with Alipay:
User only clicks Place Order button then Stripe continues to handle process and redirect to Stripe home page:
Support 3D secure:
When customers use type of card provided with 3D secure function. Stripe will turn on automatic mode to check. The operation will redirect to processing page:
Press Success button. The inform result will sent to customer. Payment successful !
Save card function:
We design this function help customers pay more conveniently. It can support customers usefully in case they forgot card number:
View Order:
When the transaction is completed, customers can review their orders by clicking Sales-> Orders->View:
Capture Invoice:
While invoice is not created meanings customers select Payment Action in Authorize Only status. Customers can capture invoice in their request. However, quantity of products in new invoice
must be smaller or equal with pre-order and invoice only is submitted once.
View Invoice:
By clicking invoice and pressing View, customer can see the content of invoice that you want:
And choose Credit Memo tab and clicking Refund in need
Partial or total refund:
Moreover, Stripe is a great tool. Customer can refund partially or totally by clicking Credit Memo-> Refund.
About partial refund, it applies for many frequencies and up to out of products.
Update
- When a new update is available, we will provide you with a new package containing our updated extension.
- You will have to delete the module directory and repeat the installing steps above.
- Flush the config cache. Your store and newly installed module should be working as expected.
Support
- We will reply to support requests after 2 business days.
- We will offer lifetime free update and 6 months free support for all of our paid products. Support includes answering questions related to our products, bug/error fixing to make sure our products fit well in your site exactly like our demo.
- Support DOES NOT include other series such as customizing our products, installation and uninstallation service.
Once again, thank you for purchasing our extension. If you have any questions relating to this extension, please do not hesitate to contact us for support.
